DYN21203 DynaDeck 12mm thick x 91cm x 137cm (1.25m²)

Dynamat
Your price:
€ 214,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

Dynamat DYN21203 DynaDeck 12mm thick x 91cm x 137cm (1.25m²)

DynaDeck is a flooring covering designed to replace the vehicle's original carpet with an impermeable, resistant and soundproofing technical surface. It consists of a multilayer structure that combines high-resistance vinyl and thermoacoustic foam, with the aim of reducing noise and heat transmission through the floor pan. The material is used in automotive, restoration and special vehicles where a surface resistant to wear and external agents is required.

How a DynaDeck covering works and what it is for

The floor of a vehicle is one of the main paths of noise and heat transmission from the road, engine and transmission. DynaDeck acts as a composite barrier, combining:

  • an upper layer of high-resistance vinyl
  • a lower layer of closed-cell thermoacoustic foam

This structure allows you to:

  • attenuate road noise transmission
  • reduce heat passage from the vehicle floor
  • improve overall cabin comfort
  • create a surface resistant to water, oils and wear

The material therefore works both as an acoustic insulator and as a technical floor finish.

When to use it, where to apply it and how to install it

DynaDeck is suitable for vehicles where you want to replace the original carpet with a more resistant and functional surface. Typical applications:

  • cabin floor pan
  • trunk bottom
  • restoration vehicles (classics, hot rods)
  • off-road and jeeps
  • trucks and work vehicles
  • boats and RVs

It is particularly suitable in contexts where the following are required:

  • resistance to water and oils
  • ease of cleaning
  • durability over time
  • basic thermal and acoustic insulation

Installation

One of the distinctive aspects of DynaDeck is its simplified installation.
Procedure:

  1. remove existing carpet or covering
  2. clean and dry the floor pan surface
  3. position the material following the geometry of the vehicle floor
  4. adapt any custom cuts

The material:

  • does not require permanent adhesion
  • can be removed and reused
  • adapts to the floor thanks to its weight and flexible structure

For optimal results, installation over a damping layer such as Dynamat Xtreme is recommended.

Variants and coverage

DynaDeck is available in multiple formats to fit different surfaces:

This modularity allows you to cover:

  • single floor pans
  • entire cabins
  • rear compartments and complete trunks

DynaDeck is a technical flooring covering solution for vehicle floors that integrates acoustic insulation, thermal protection and mechanical resistance in a single material.

Unlike traditional damping materials, it does not act on vibrations of surfaces but as a continuous structural barrier, improving the comfort and durability of the floor pan over time. It is suitable for applications where the vehicle floor must be functional, resistant and easy to manage, as well as acoustically more controlled.

Scheda tecnica

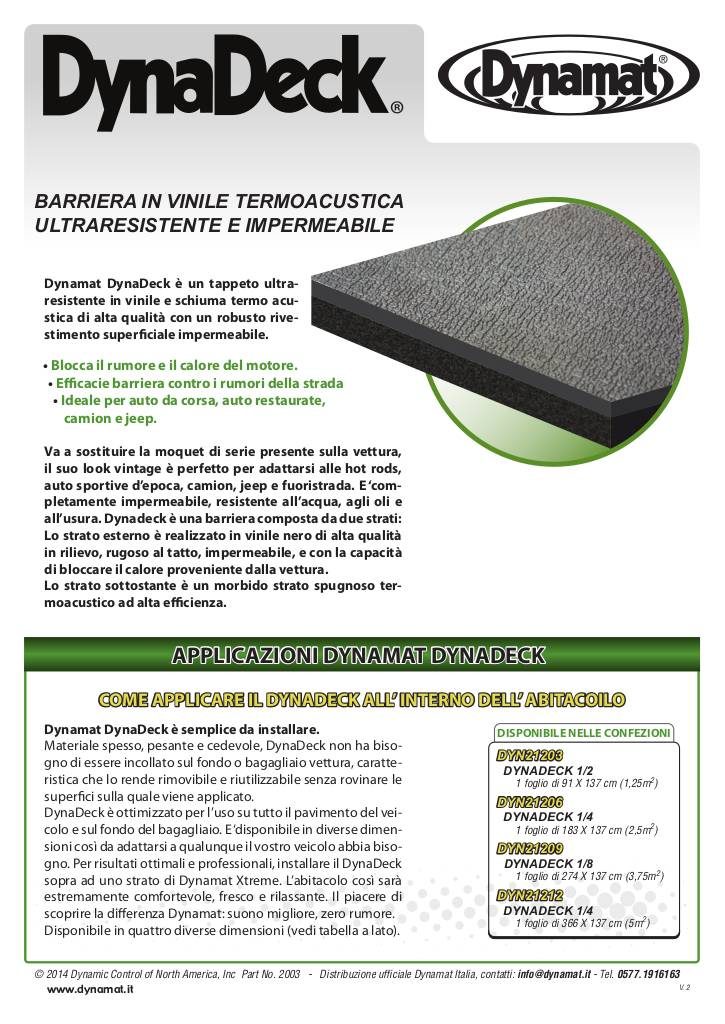

20141027103349-dynamat-dynadeck-low.pdf

Scheda tecnica

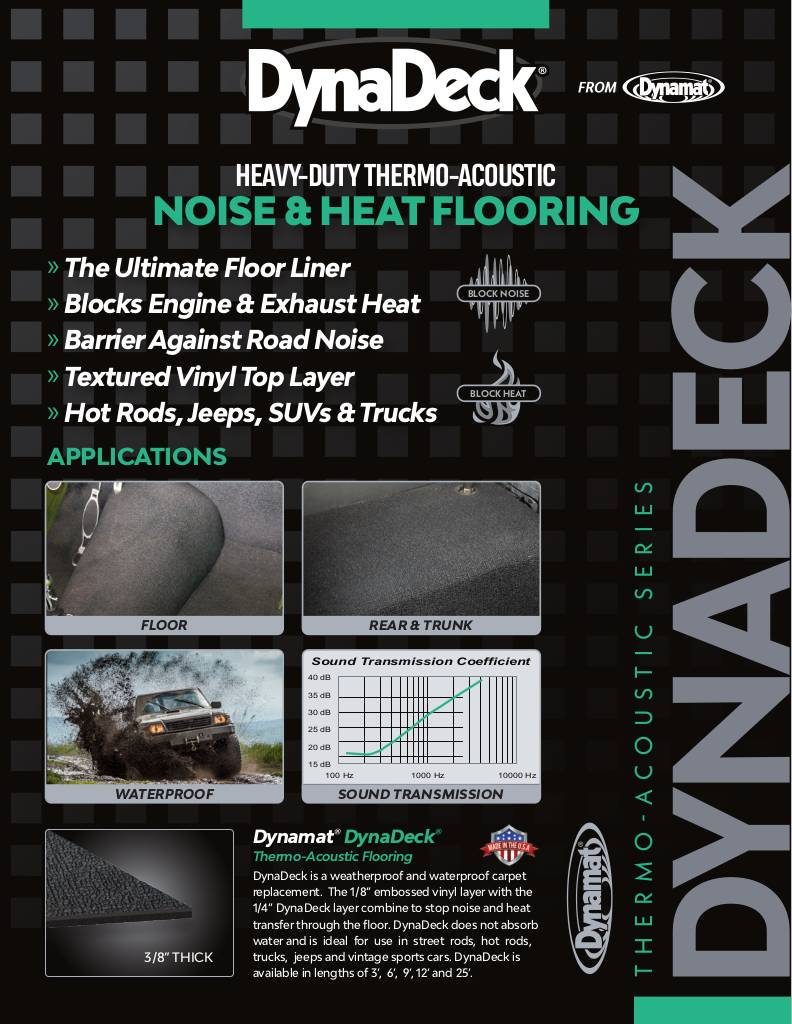

n-20240222155309-dynadeck-2023.pdf

Dynadeck 91 x 137cm (1.25m²), 12mm thick

Dynamat DYN21203 DynaDeck Technical specifications

  • Wear surface twisted grain T(1)
  • Characteristic Typical value
  • Type Vinyl
  • Model Twill grain
  • Reinforced backing
  • Total weight 23.7 oz/yd2
  • Color black

PVC Barrier

  • Type PVC
  • Specific gravity 2.5
  • Flexibility Very limp

Typical values

  • Closed-cell foam VSC(3)
  • Characteristic Typical value
  • Base polymer PVC/NBR
  • Density 3.5 - 7.0 lb/ft3 (ASTM D1056)
  • Compression Set @50% 25% max. (ASTM D1056)
  • Water absorption 10% max. (ASTM D1667)
  • Thermal conductivity 0.27 BTU-in/hr-ft2°F @ 72 °F (ASTM C518)

Composite

  • Characteristic Typical value
  • Layer lamination Thermal bond - No adhesive
  • Peel strength between 700 g/in (ASTM D 903 Mod)
  • Layers (or material destruction)
  • Flammability FMVSS 302 - Passed
€ 214,90 Price incl. VAT
