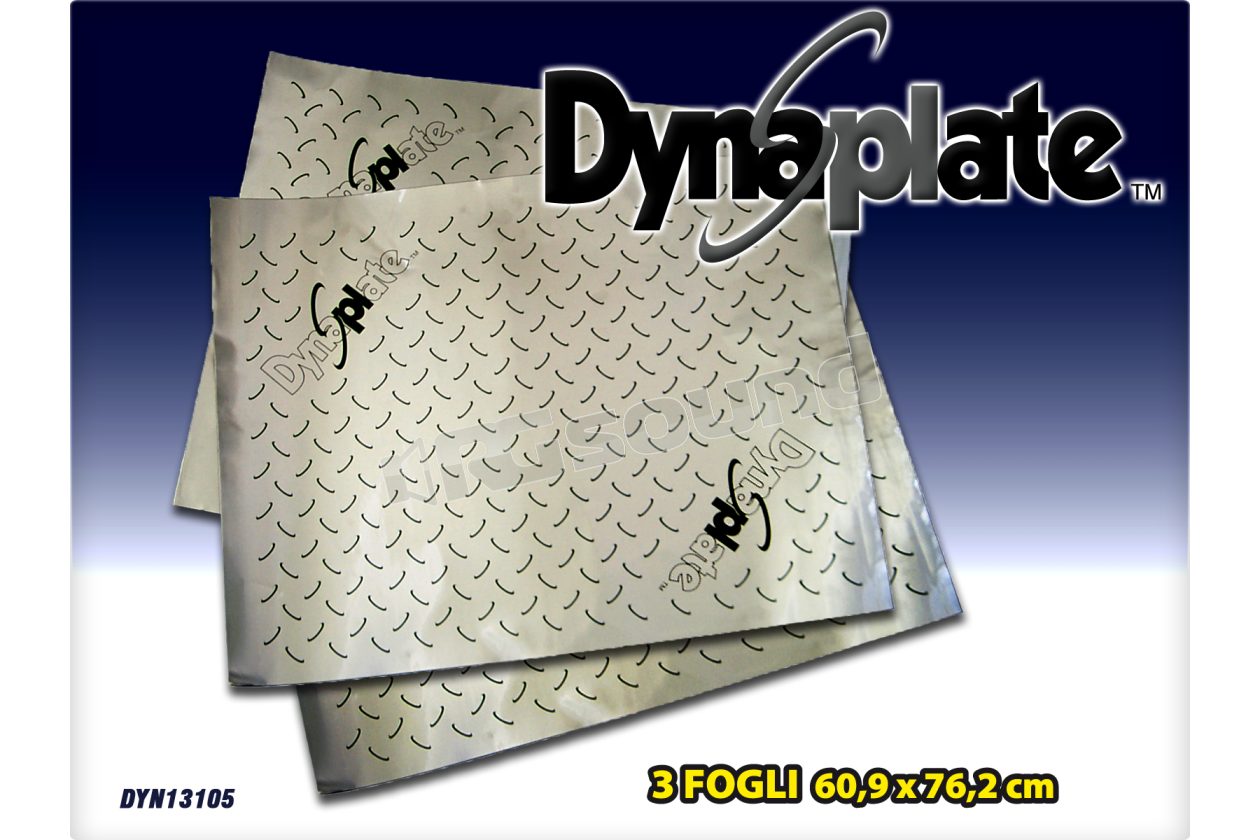

DYN13105 DYNAPLATE Aluminum anti-vibration panel for speaker mounting

Dynamat
Your price:
€ 249,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

DYN13105 DYNAPLATE Aluminum vibration damping panel for speaker support and surface stiffening - 3 Sheets 60.9 X 76.2 cm

DynaPlate is a structural aluminum panel designed to stiffen light surfaces and improve mechanical support for speakers in car audio installations. It is used to increase the rigidity of mounting panels and reduce flexing that can compromise the acoustic performance of the system. Unlike traditional damping materials, DynaPlate does not work as an acoustic barrier or sound absorber, but as a structural element capable of reinforcing surfaces subject to vibration.

How it works and what a structural stiffening panel is for

During speaker operation, especially in the low range, mounting surfaces can deform and vibrate. This results in:

  • loss of acoustic energy
  • reduction in woofer precision
  • unwanted panel vibrations
  • sound colorations and distortions

DynaPlate uses a high-rigidity aluminum structure that increases the mechanical resistance of the treated surface. The panel allows you to:

  • stiffen supports and door panels
  • improve speaker mounting
  • reduce structural flexing
  • increase audio system stability

The result is a more solid base for the speaker, with better response to low frequencies and less energy dispersal.

When to use it, where to apply it and how to install it

DynaPlate is suitable for installations where surface rigidity is insufficient. Typical applications:

  • woofer supports in door panels
  • door panels
  • speaker adapters
  • MDF or plastic structures
  • light surfaces subject to flexing

It is particularly useful:

  • in high-power car audio systems
  • in SQ (Sound Quality) installations
  • when using woofers with high excursion
  • on thin or low-rigidity panels

Installation

The panel can be cut and adapted to the surface. Procedure:

  • identify the zone subject to flexing
  • shape DynaPlate to the desired form
  • secure the panel using adhesive or mechanical systems
  • install the speaker on the stiffened surface

To achieve optimal performance, it is recommended to use it together with vibration damping materials such as Dynamat Xtreme.

DynaPlate is a solution designed to increase the rigidity of mounting surfaces and improve mechanical support for speakers in car audio installations. It does not replace soundproofing or damping materials, but works as a structural complement in systems where vibration control and panel stability are fundamental elements for achieving more accurate acoustic response.

Dynamat
DYN10005 Hardwood Dynaroller Wooden roller for applying sound deadening materials Dynamat
Dynamat DYN10005 Hardwood Dynaroller Wooden roller for applying sound deadening materials
Price incl. VAT
€ 18,90
Dynamat
DYN10007 Heavy Duty Dynaroller Professional rubber roller for sound deadening materials Dynamat
Dynamat DYN10007 Heavy Duty Dynaroller Professional rubber roller for sound deadening materials
Price incl. VAT
€ 26,90
Dynamat
DYN13100 DynaTape Aluminum adhesive tape for sealing thermal-acoustic materials Dynamat
Dynamat DYN13100 DynaTape Aluminum adhesive tape for sealing thermal-acoustic materials
Price incl. VAT
€ 17,90

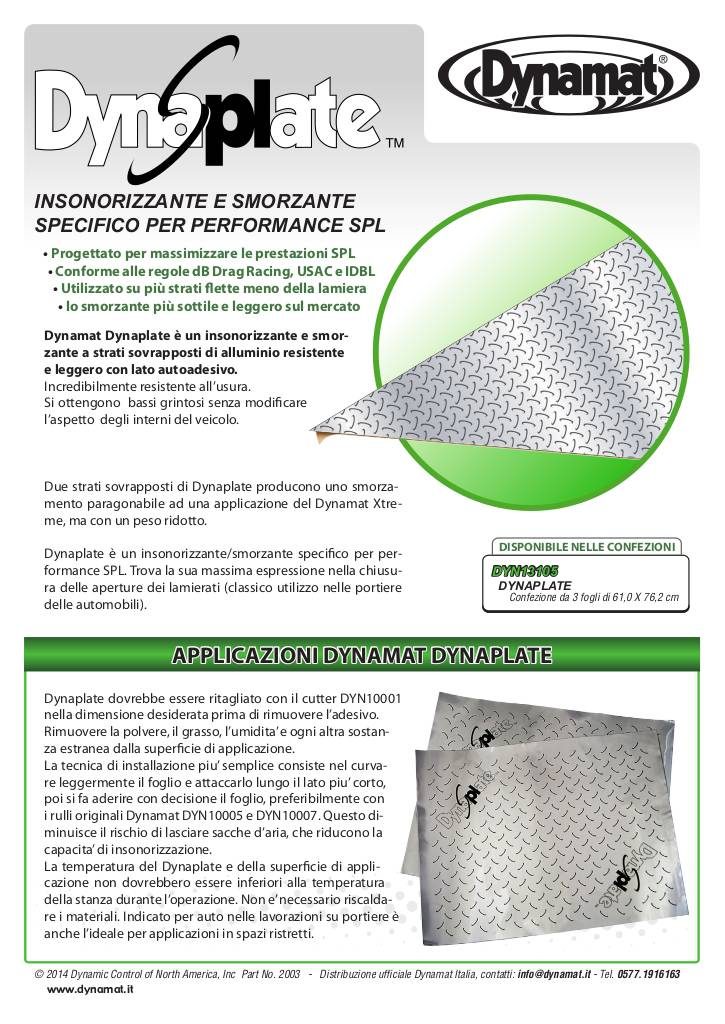

Scheda tecnica

20141027103527-dynamat-dyn13105-dynaplate.pdf

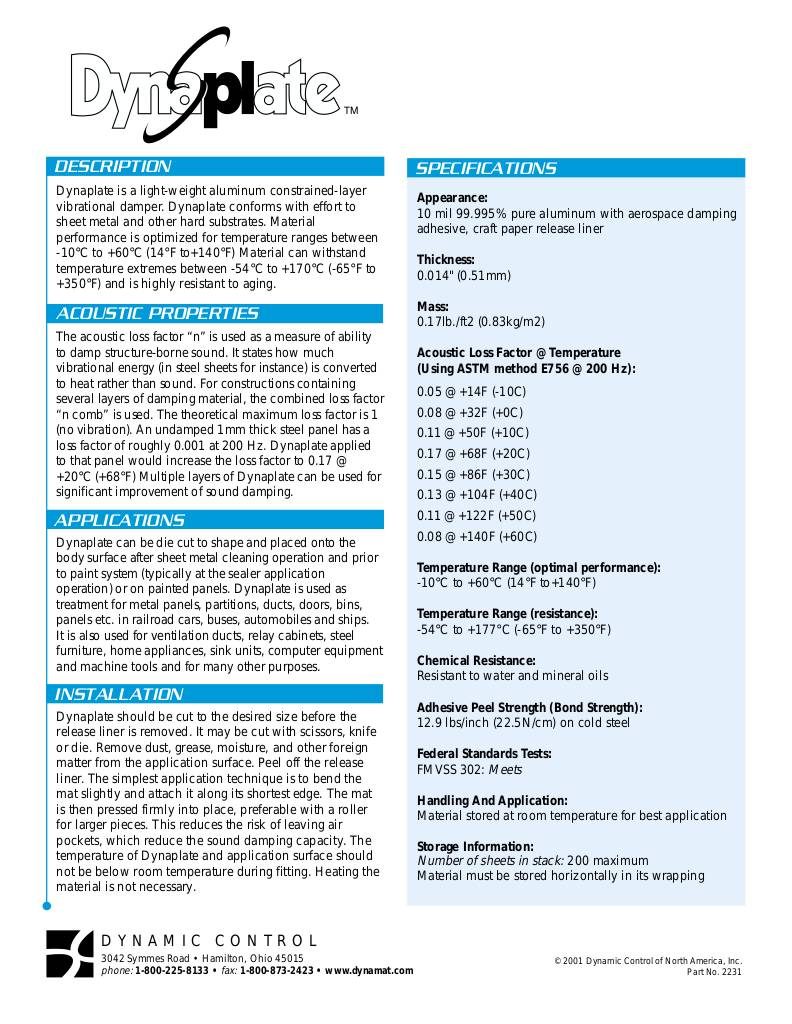

Specifiche

20141021164750-2231-spec-sheet-dynaplate.pdf

3x Dynaplate sheets 60.9 x 76.2 cm

DYN13105 DYNAPLATE Technical Specifications

  • Appearance: Pure aluminum 99.995% from 10mil with an aerospace soundproofing adhesive, a kraft paper adhesive.
  • Thickness: 0.51 mm
  • Mass: 0.83kg/m2
  • Acoustic loss factor@temperature (Using ASTM E756 method @ 200 Hz):
    • 0.05 @ -10C
    • 0.08 @ +0C
    • 0.11 @ +10C
    • 0.17 @ +20C
    • 0.15 @ +30C
    • 0.13 @ +40C
    • 0.11 @ +50C
    • 0.08 @ +60C
  • Temperature range (optimal performance): -10°C to +60°C
  • Temperature range (resistance): -54°C to +177°C
  • Chemical resistance: Resistant to water and mineral oils.
  • Adhesive strength (bond strength): 22.5N/cm on cold steel
  • Federal standards test: FMVSS 302: Passed
  • Maintenance and application: Store at room temperature for better application
  • Storage information: Number of stacked sheets: 200 maximum
  • Material must be stored horizontally in its packaging.
€ 249,00 Price incl. VAT
