DYN11103 NEW DYNALINER 1/2 Ultralight closed-cell thermal and acoustic insulation - 12.7mm

Dynamat
Your price:
€ 119,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

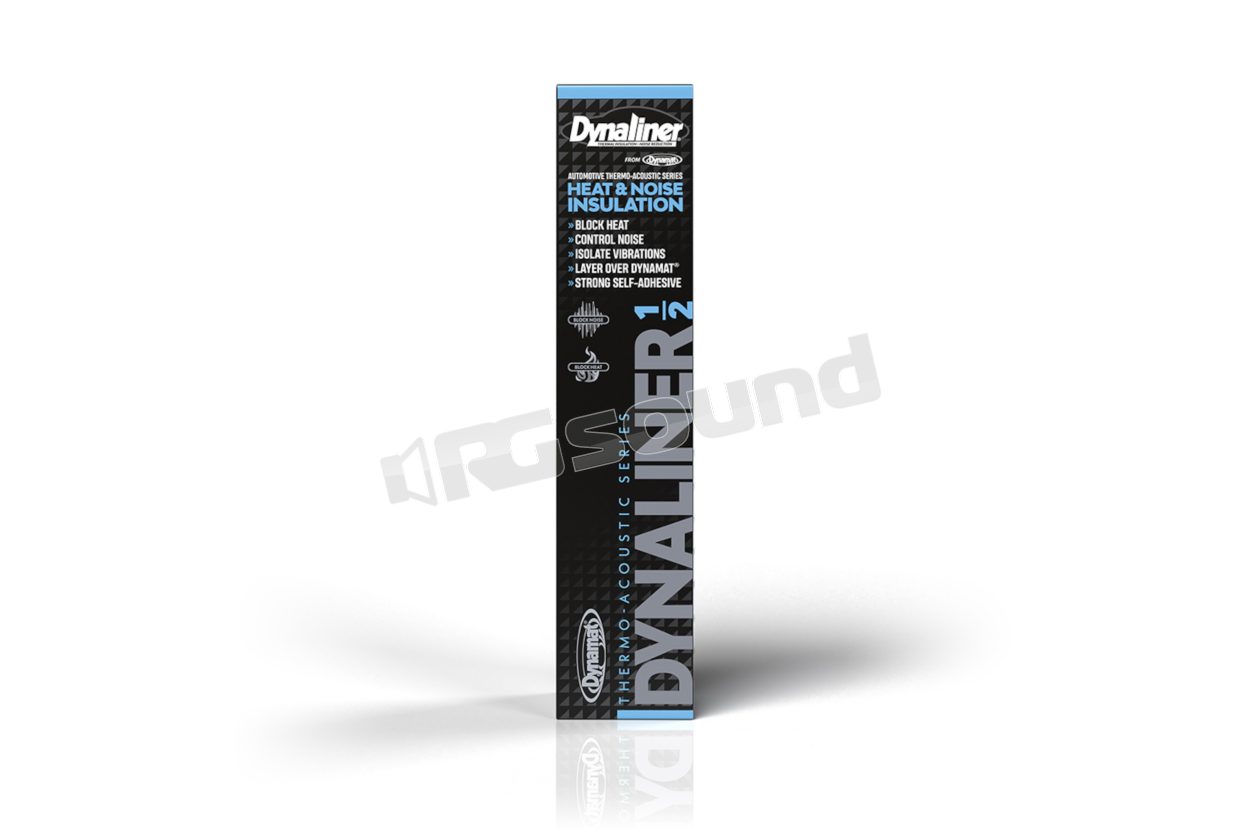

Dynamat DYN11103 NEW DYNALINER 1/2 Ultralight thermal and acoustic insulation with closed-cell technology 12.7mm

Dynaliner is an ultralight thermal and acoustic insulation designed to reduce heat transmission and improve acoustic insulation inside the vehicle. It is made of closed-cell synthetic foam with CELL BLOCK™ technology, engineered to provide high thermal performance while maintaining contained weight and thickness. Unlike vibration damping materials, Dynaliner does not directly act on sheet metal resonances, but works as an insulating layer over damping materials like Dynamat Xtreme.

How a closed-cell thermal acoustic insulation works and what it is used for

Heat and part of the noise perceived inside the cabin are transmitted through metal surfaces, panels and cavities. Dynaliner uses an extremely compact closed-cell synthetic foam structure that limits air infiltration and reduces material thermal conductivity. This allows:

  • to reduce heat transfer
  • to improve thermal and acoustic insulation
  • to limit reflections and standing waves in panels
  • to increase interior vehicle comfort

The material:

  • does not absorb water
  • resists oils and lubricants
  • does not promote mold or corrosion
  • maintains flexibility and lightness over time

When installed over Dynamat Xtreme it contributes to increasing the overall thermal resistance of the multi-layer system.

When to use it, where to apply it and how to install it

Dynaliner is designed for applications where thermal and acoustic insulation needs to be added without significantly increasing weight. Typical applications:

  • doors
  • cabin floor
  • roof
  • firewall / engine bulkhead
  • side panels
  • trunk
  • engine hood
  • fiber or composite enclosures

It is particularly effective as a second layer over CLD materials like Dynamat Xtreme.

Installation

The material is self-adhesive and easily shapeable.
Procedure:

  1. thoroughly clean the surface
  2. cut the panel in the desired shape
  3. remove the adhesive film
  4. apply the material following the geometry of the surfaces
  5. press uniformly to ensure complete adhesion

Thanks to its soft and flexible structure it can adapt to complex or curved surfaces.

Available versions

DYN11101 Dynaliner 1/8

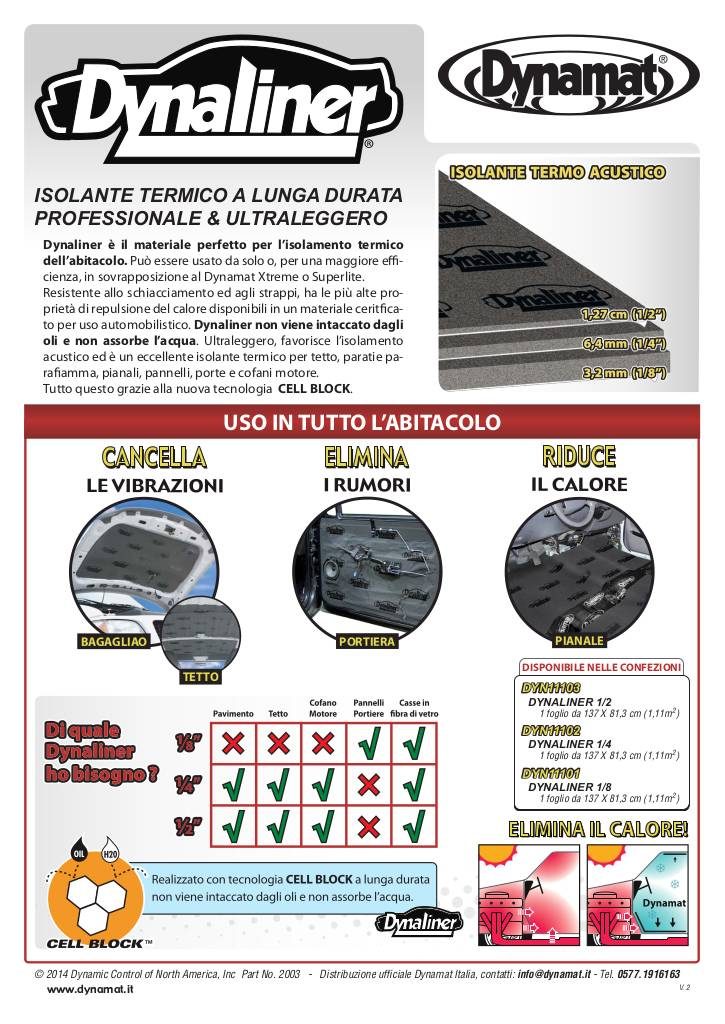

Scheda tecnica

20141027102406-dynamat-dynaliner-low.pdf

Dynaliner sheet 137.2 x 81.3cm, thickness 12.7mm
€ 119,90 Price incl. VAT
