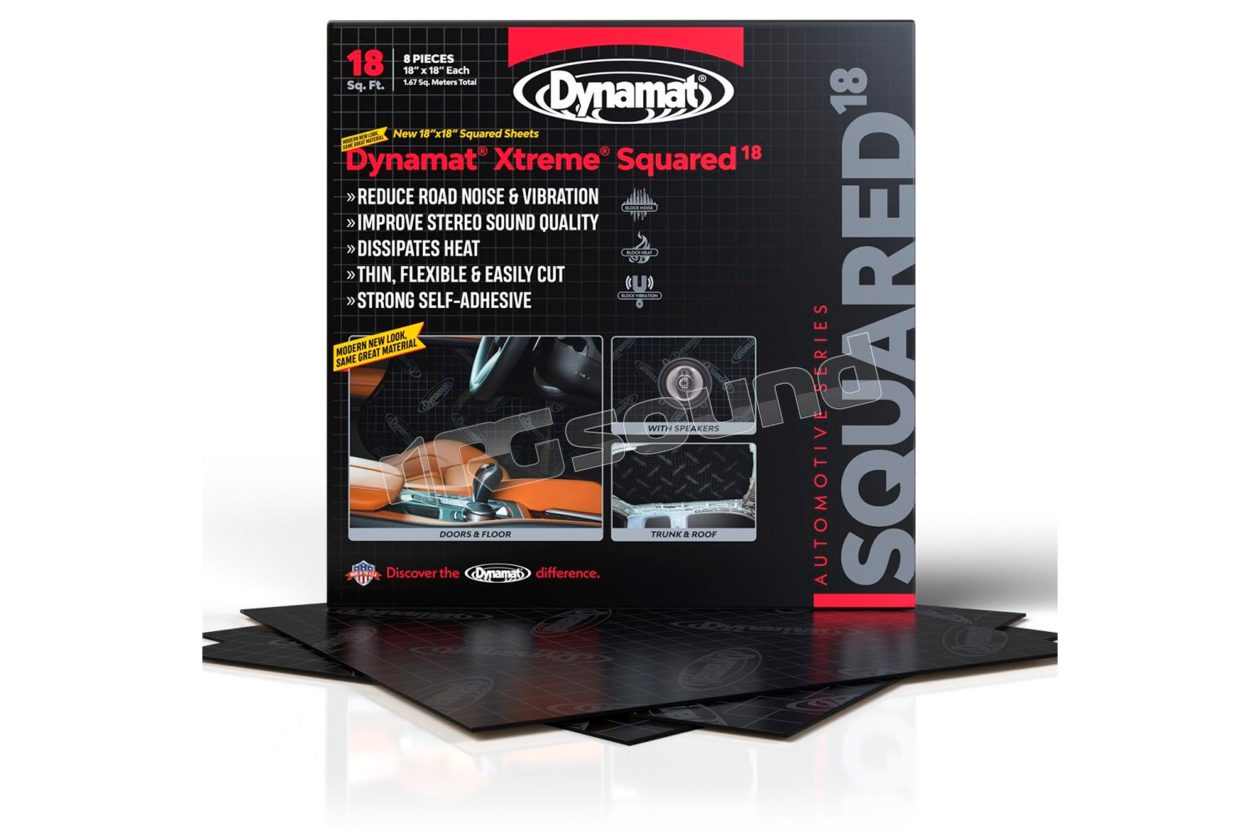

DYN10420 Xtreme Squared 18 45x45 cm anti-vibration damping sheets for car acoustic treatment

Dynamat
Your price:
€ 158,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

Dynamat DYN10420 XTREME Squared 18 Package of 8 sheets 45x45cm Dynamat Xtreme

Dynamat Xtreme Squared 18 is a vibration damping material based on Dynamat Xtreme technology, supplied in a square format of 45 x 45 cm. The "squared" format is designed to facilitate installation on flat or modular surfaces, reducing cutting time and optimizing coverage of treated areas. The material is intended for reducing structural vibrations and resonances of metal surfaces in automotive and technical applications.

How a vibration damping material works and what it is used for

Metal surfaces of a vehicle tend to vibrate when subjected to mechanical or acoustic stress, generating resonances and structural noise. Dynamat Xtreme Squared uses the same technology as classic Dynamat Xtreme:

  • high density elastomeric butyl layer
  • aluminum containment foil
  • high-tack adhesive for permanent application

The material directly intervenes on vibrations by converting mechanical energy into heat, thereby reducing the propagation of resonances. The result is a more stable structure less subject to acoustic distortions.

When to use it, where to apply the vibration damping sheets and how to install it

The Squared format is particularly suitable for regular surfaces or modular installations.
Typical applications:

  • car doors
  • internal and side panels
  • floor and trunk
  • roof and flat surfaces
  • metal and composite structures
  • vehicles, buses, boats and technical applications

It is particularly useful when you want a neat and uniform application without excessive material adaptation.

Installation

The material is supplied in preformed sheets of 45 x 45 cm.
Procedure:

  1. carefully clean the surface of dust, grease and moisture
  2. position the sheet in the area to be treated
  3. remove the protective adhesive film
  4. apply uniform pressure to ensure complete adhesion
  5. finish any overlaps

The square format reduces the need for complex cuts and improves installation repeatability.

Dynamat Xtreme Squared 18 is a variant of the Xtreme system designed to simplify installation on regular or modular surfaces. It maintains the same vibration damping properties of the original material, but offers greater application efficiency. It is a solution designed for quick, repeatable and professional installations where the precision of the material layout is as relevant a factor as acoustic performance.

Dynamat
DYN10005 Hardwood Dynaroller Wooden roller for applying sound deadening materials Dynamat
Dynamat DYN10005 Hardwood Dynaroller Wooden roller for applying sound deadening materials
Price incl. VAT
€ 18,90
Dynamat
DYN10007 Heavy Duty Dynaroller Professional rubber roller for sound deadening materials Dynamat
Dynamat DYN10007 Heavy Duty Dynaroller Professional rubber roller for sound deadening materials
Price incl. VAT
€ 26,90
Dynamat
DYN13100 DynaTape Aluminum adhesive tape for sealing thermal-acoustic materials Dynamat
Dynamat DYN13100 DynaTape Aluminum adhesive tape for sealing thermal-acoustic materials
Price incl. VAT
€ 17,90

Scheda Tecnica

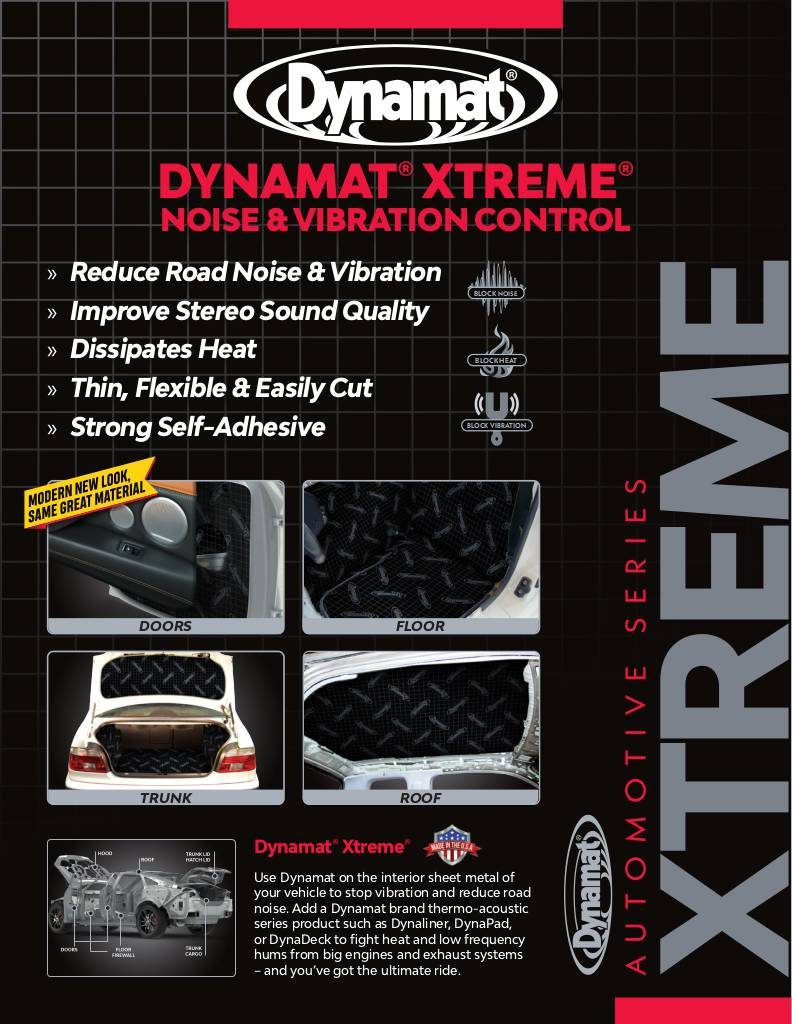

n-20240222145202-dynamat-xtreme-datasheet.pdf

Dynamat XTREME Squared 18 Technical Specifications

  • Appearance - New look of Dynamat Xtreme, composed of aluminum foil and adhesive butyl layer protected by a sheet of craft paper.
  • Thickness - 0.067" (1.7 mm)
  • Sheets: 18" x 18" / 45x45 cm (8 sheets total)
  • Weight - 0.45lbs./ft.2 (2.20 kg/m2)
  • Acoustic loss factor at temperature (Using ASTM E756 method at 200 Hz)
    • 0.081 @ +14ºF (-10ºC)
    • 0.240 @ +32ºF (+0ºC)
    • 0.257 @ +50ºF (+10ºC)
    • 0.417 @ +68ºF (+20ºC)
    • 0.259 @ +86ºF (+30ºC)
    • 0.194 @ +104ºF (+40ºC)
    • 0.140 @ +122ºF (+50ºC)
    • 0.094 @ +140ºF (+60ºC)
  • Temperature range (optimal performance) - From 14F to +140F (from -10C to +60C)
  • Temperature range (resistance) - From -65F to +300F (from -54C to +149C)
  • Adhesive peel strength - 42.6 lb./in. (74.8 N/cm) on cold steel
  • Chemical resistance - Resistant to water and mineral oils
  • Handling and application - The material must be stored at room temperature for optimal application
  • Storage information - Number of sheets in stack: 50 max
