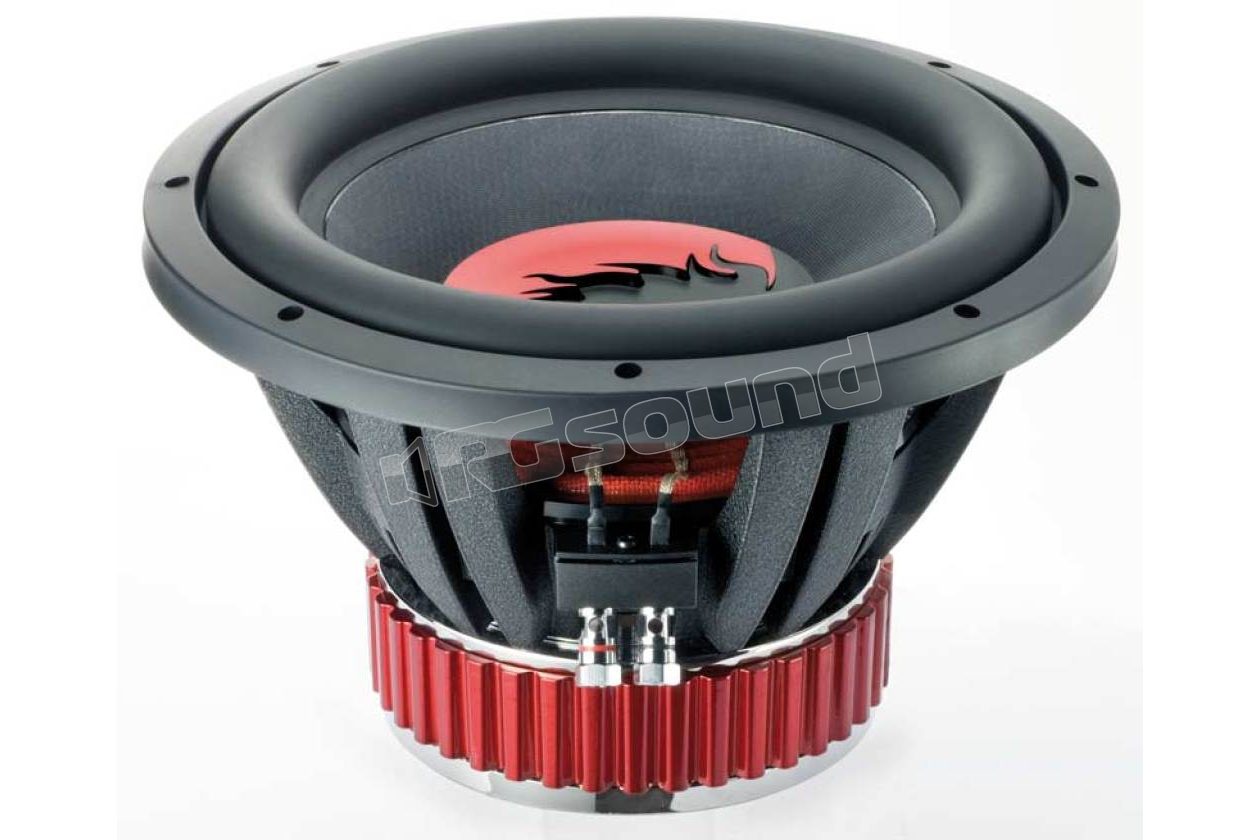

DVH 229.1

Dragster

Discontinued

Type
Subwoofer
Speaker Size
320 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
20 - 300 Hertz
Sensitivity
90,5 dB
Impedance
3,2 Ohm
Installation Depth
171 mm
Woofer Material
P.P. a iniezione

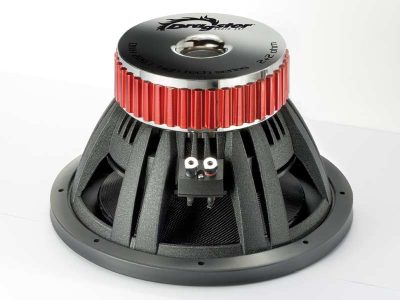

300mm (12") dual voice coil 2+2 Ohm subwoofer
Ideal for audiophile use in particularly refined installations, it combines perfect reproduction of low frequencies with high sound pressure level.
Power 600W RMS -- 1200 W Peak



Specifications and electrical parameters

Diameter mm 300
Installation depth mm 171
RMS Power W 300+300
Maximum Power W 600+600
Nominal impedance
Ohm 2+2
Voice coil diameter mm 75
Sensitivity dB 2.83V-1m
90.5
Resonance frequency - Fs Hz 30
Electrical resistance - RE Ohm 3.2
Qms 6.9 6.3
Qes 0.47 0.45
Qts 0.44 0.42
Vas Lt 49
Maximum excursion - Xmax mm ±8.5
REFLEX enclosure configuration
Internal volume
Lt 40
Port length
cm 38
Port internal diameter
cm
10
Specific parameters for SPL at 75 Hz - diameter/length
cm 15 / 11
SEALED enclosure configuration
Internal volume
Lt 32

Discontinued
