DPK 165.3 “Special Edition” 2-way speaker kit

Hertz
Your price:
€ 129,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
45 - 23.000 Hertz
Woofer Size
165 mm
Tweeter Size
26 millimetri
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Tetolon

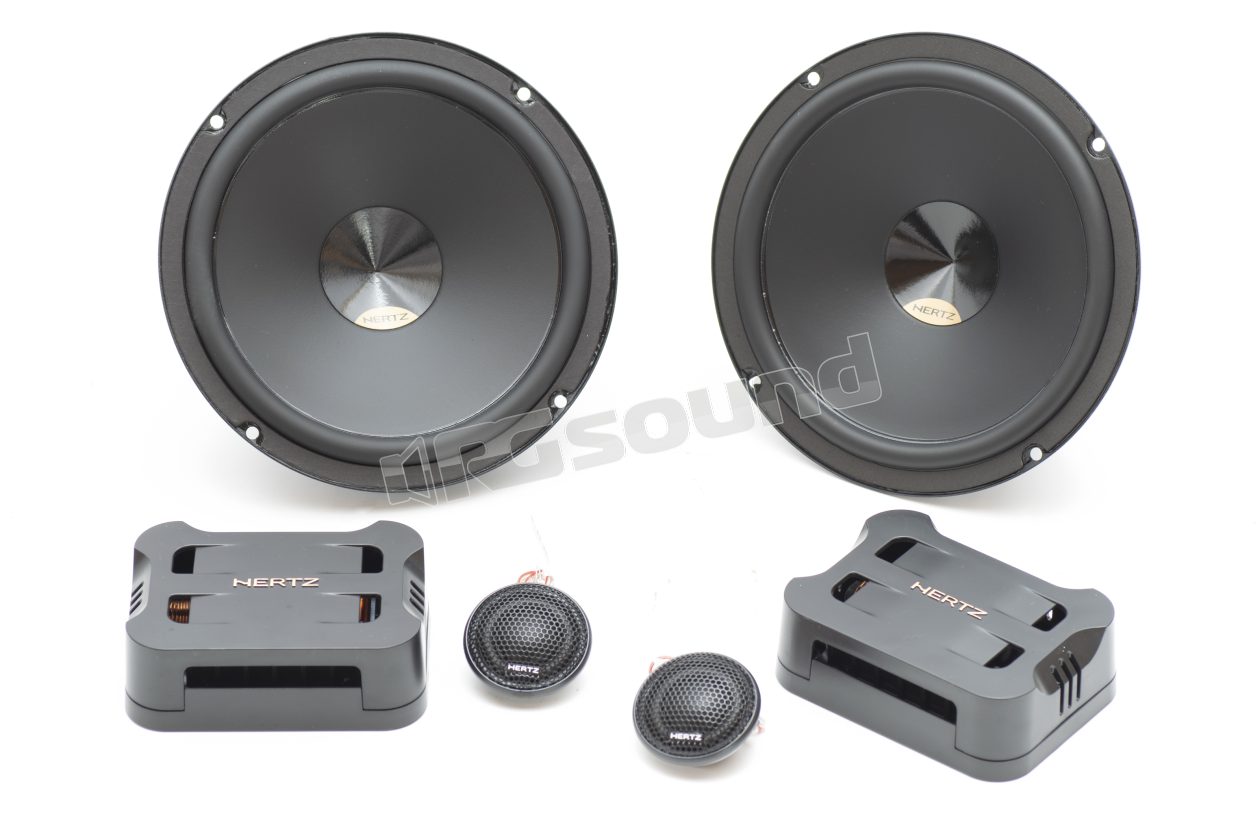

Hertz DPK 165.3 "Special Edition" 2-way speaker kit

Product available from March 2026

Hertz DPK 165.3 "Special Edition" 2-way speaker kit with a version of the DSK 165 (the "P" stands for "PRO"), with tweeter featuring similar characteristics to the C26 and dedicated external crossover. This product combines the extremely high efficiency of the DSK 165 (93 dB) with even better sound quality, with performance close to the CK 165 and at a great price!

The kit is composed of:

DPT 26.3 Tweeter

  • 26 mm Soft Tetolon® fiber dome tweeter for natural sound.
  • Low resonance frequency (1.5 kHz) for the best vocal reproduction.
  • Neodymium magnet for compact dimensions and to extend high frequencies well up to 23kHz.
  • Mounting accessories for external or flush mounting included.

DPV 165.3 Woofer

  • V-cone® woofer for the best off-axis response and fluid midrange.
  • Resonance frequency 60Hz for a tight and deep bass response.
  • Pure copper coil and powerful magnet for low distortion.
  • Gold-plated high-current terminals, with ABS protective cover.
  • The black rubber magnet cover offers a nice aesthetic finish and protection.

DPCX 2.3 Crossover
Compact case design with ventilation holes and gold-plated binding posts for the best signal transfer.
Woofer 6dB/oct. low-pass filter based on high-current pure copper inductors.
Tweeter 12/oct. high-pass filter with 100 V polypropylene.

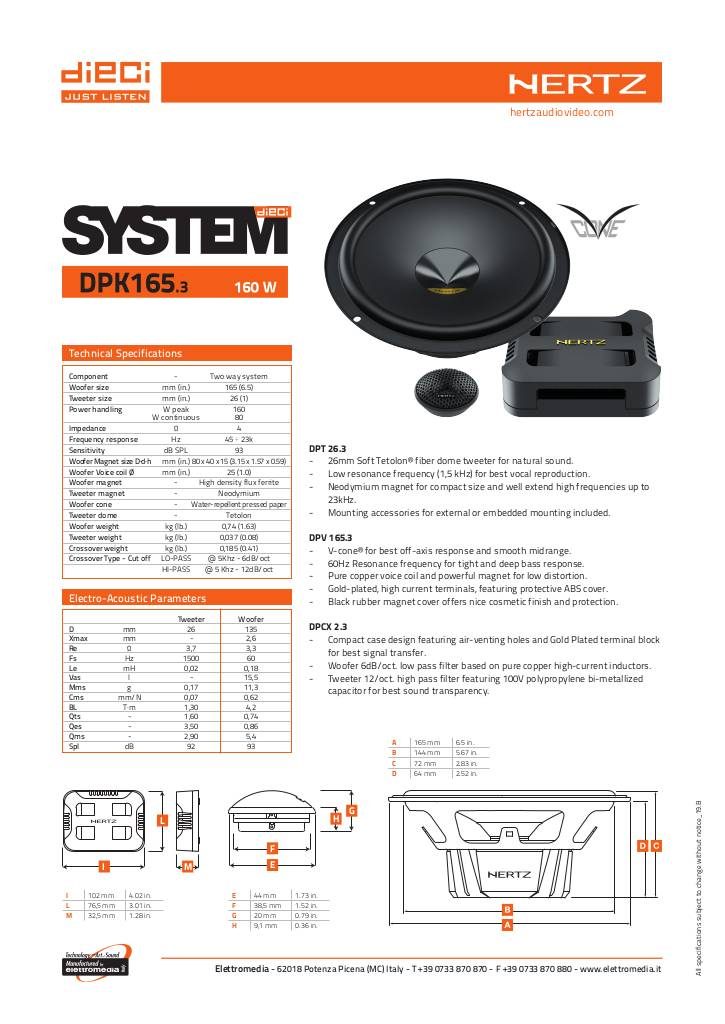

Scheda tecnica

n-20211007121726-hertz-scheda-tecnica-dpk-165-3-revb.pdf

Hertz DPK 165.3 Technical specifications

  • Two-way speaker system
  • Woofer size mm 165 (6.5")
  • Tweeter size mm 26 (1")
  • Peak power handling W 160
  • Continuous power W 80
  • Impedance Ω 4
  • Frequency response Hz 45 ÷ 23k
  • Sensitivity dB SPL 93
  • Woofer: Magnet size D·d·h mm (inches) 80 x 40 x 15 (3.15 x 1.57 x 0.59)
  • Woofer: Coil Ø mm (inches) 25 (1.0)
  • Woofer magnet: High-density ferrite flux
  • Tweeter magnet: Neodymium
  • Woofer cone: Water-repellent pressed paper
  • Tweeter dome: Tetolon
  • Woofer weight kg 0.74 (1.63 lb)
  • Tweeter weight kg 0.037 (0.08 lb)
  • Crossover weight kg 0.185 (0.41 lb)
  • Crossover type: Cut off LO-PASS @ 5Khz - 6dB/oct - HI-PASS @ 5 Khz - 12dB/oct
€ 129,00 Price incl. VAT
