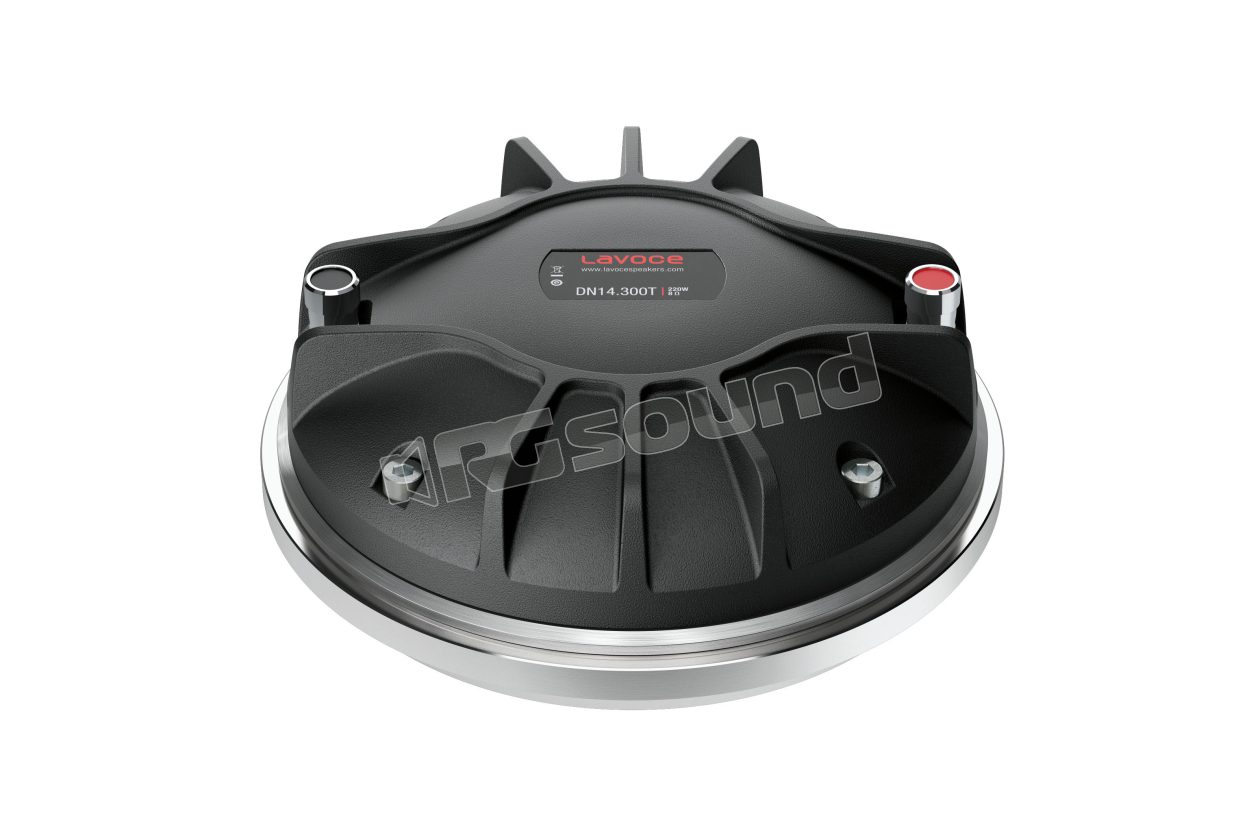

DN14.300T 1.4" compression driver

LaVoce
Your price:
€ 309,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
220 Watt
RMS Power
110 Watt
Frequency Response
500 - 20000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm

LaVoce DN14.300T 1.4" Compression Driver

Main features of the DN14.300T speaker

  • Neodymium magnet
  • 3 inch edgewound cca voice coil
  • Sensitivity 109 db / spl
  • Program power handling 220 w.
  • Motor, phase plug and diaphragm optimized fem
  • Frequency range 500 ÷ 20000 hz
  • Titanium diaphragm

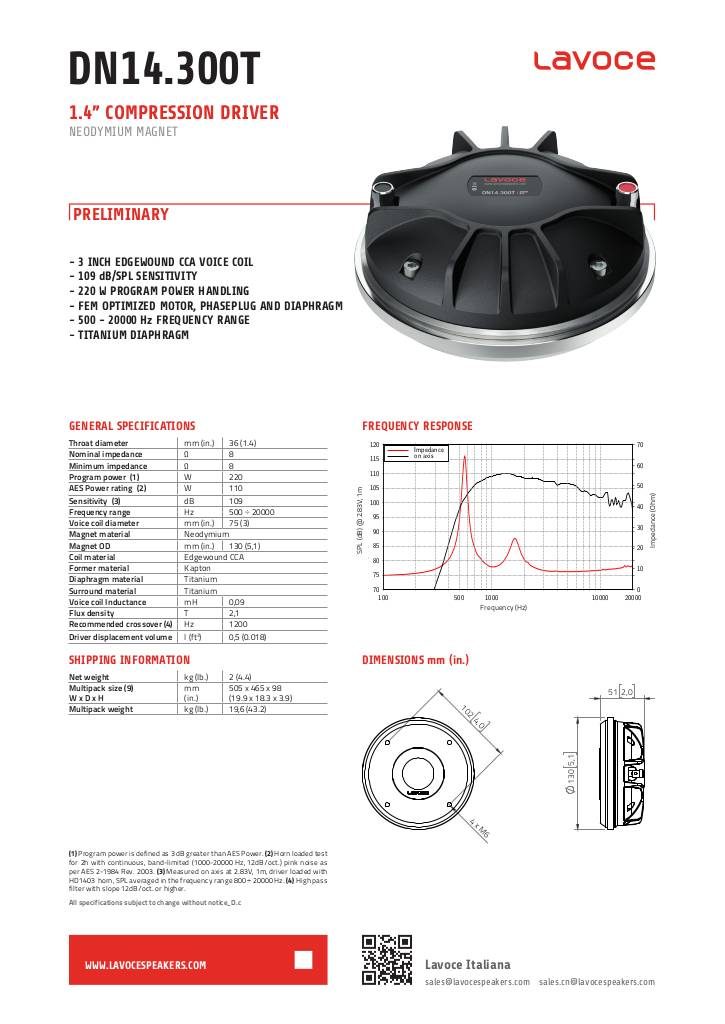

Scheda tecnica

n-20210315150605-1599665887-lavoce-dn14-300t-1-4in-compression-driver-d-c.pdf

LaVoce DN14.300T Technical Specifications

  • Throat diameter mm (inches) 36 (1.4)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 8
  • Program power W 220
  • Nominal power AES W 110
  • Sensitivity (3) dB 109
  • Frequency range Hz 500 ÷ 20000
  • Voice coil diameter mm (inches) 75
  • Magnet material Neodymium
  • Coil material Edgewound CCA
  • Former material Kapton
  • Diaphragm material Titanium
  • Surround material Titanium
  • Magnet OD mm (inches) 130 (5.1)
  • Voice coil inductance mH 0.09
  • Flux density T 2.1
  • Recommended crossover (4) Hz 1200
  • Driver displacement volume l (ft³) 0.5 (0.018)
€ 309,50 Price incl. VAT
