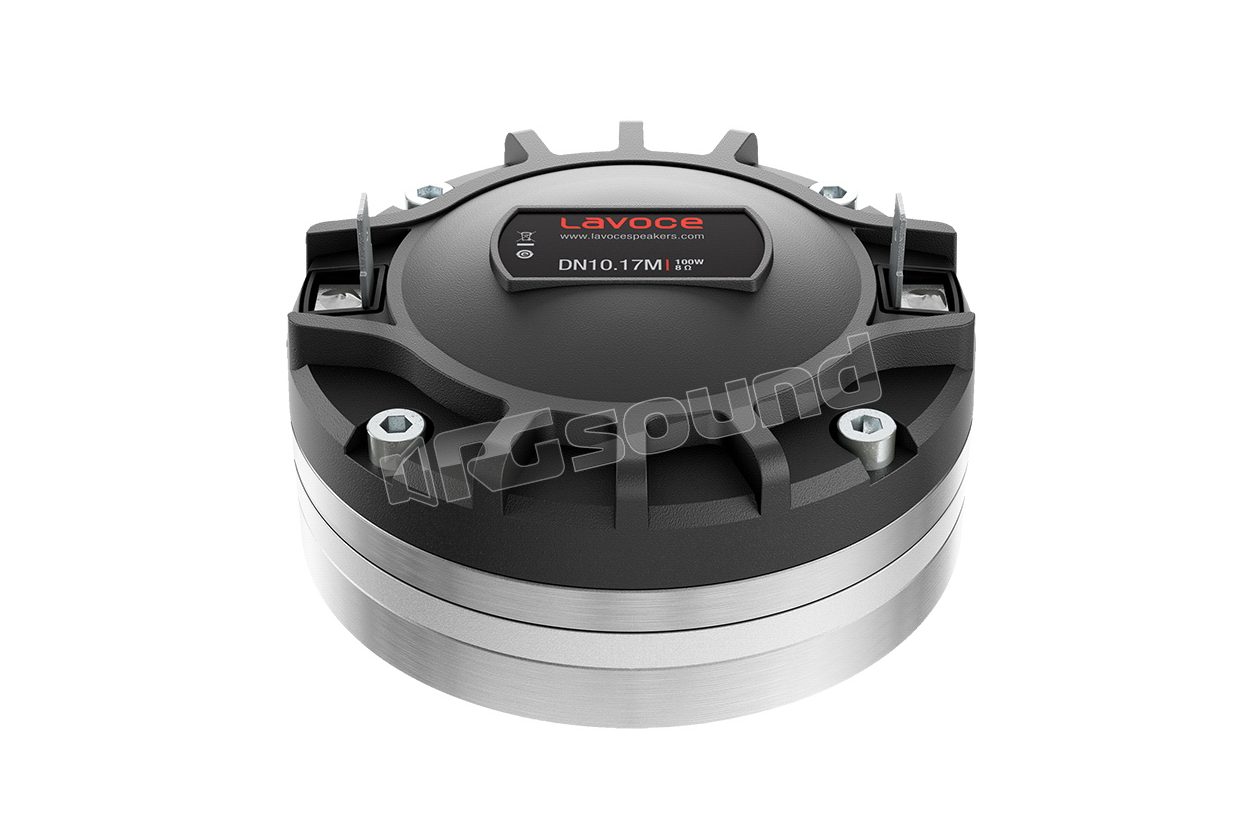

DN10.17M 1"/25mm High Frequency Tweeter

LaVoce

Discontinued

Your price:
€ 114,00
Price per single item (VAT included)
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1200 - 18000 Hertz
Sensitivity
110 dB
Impedance
8 Ohm
Weight
0,9 Kg
Voice Coil Diameter
44,4 mm

LaVoce DN10.17M High Frequency Tweeter 1"/25mm

LaVoce code 70R53104
DN10.17M Features
  • CCA voice coil 1.7 inch edgewound
  • Sensitivity 110 db/spl
  • Program power handling 100 w
  • Motor, phaseplug and diaphragm optimized for FEM
  • Frequency range 1200 - 18000 hz
  • Polyester diaphragm
Notes
  • Program power is defined as 3 dB above AES power.
  • Test with horn load for 2 hours with continuous pink noise limited in band (1600-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, speaker loaded with HD1003 horn, average SPL in the frequency range 1200 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

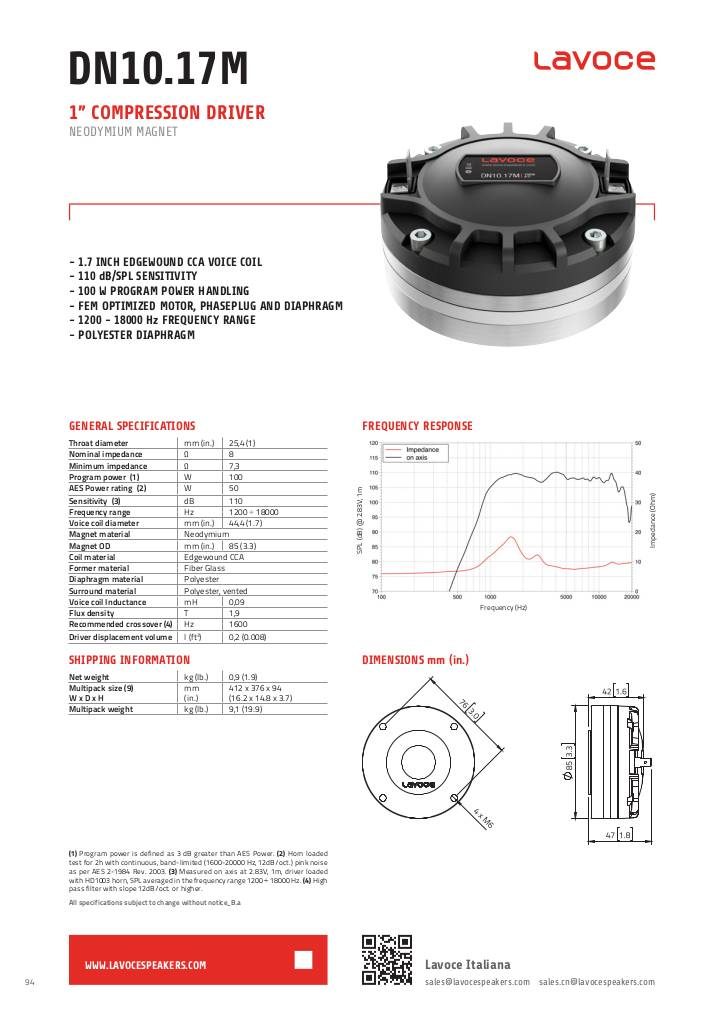

scheda tecnica

1549116979-dn1017m-1.pdf

LaVoce DN10.17M Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power (1) W 100
  • AES power (2) W 50
  • Sensitivity (3) dB 110
  • Frequency range Hz 1200 ÷ 18000
  • Voice coil diameter mm (in) 44.4 (1.7)
  • Magnet material Neodymium
  • Coil material CCA edgewound
  • Core material Fiberglass
  • Diaphragm material Polyester
  • Surround material Polyester, vented
  • Magnet external diameter mm (in) 85 (3.3)
  • Voice coil inductance mH 0.09
  • Flux density T 1.9
  • Recommended crossover (4) Hz 1600
  • Driver displacement volume l (ft³) 0.2 (0.008)
  • Multipack weight kg (lb) 9.1 (19.9)
  • Multipack dimensions L x W x H 412x 376 x 94 (16.2 x 14.8 x 3.7)
  • Net weight kg (lb) 0.9 (1.9)
