DN10.172K 1" compression tweeter

LaVoce
Your price:
€ 114,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
110 Watt
RMS Power
55 Watt
Frequency Response
1200 - 20000 Hertz
Sensitivity
110 dB
Impedance
8 Ohm

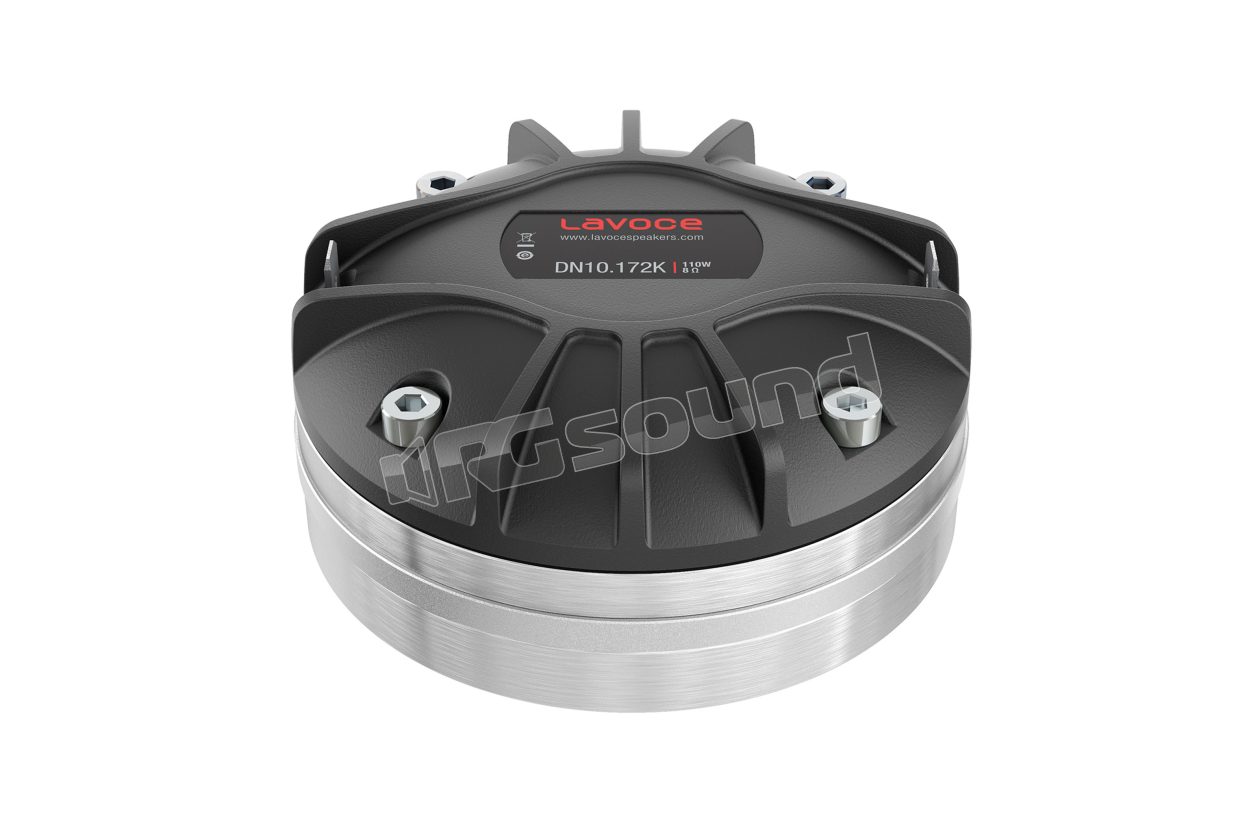

LaVoce DN10.172K 1" compression tweeter with neodymium magnet

DN10.172 Features

  • 1.7 inch edgewound CCA voice coil
  • Sensitivity 110 db / spl
  • Program power handling 110 w.
  • Motor, phase plug and diaphragm optimized FEM
  • 1200-20000 hz frequency range
  • Polyimide diaphragm

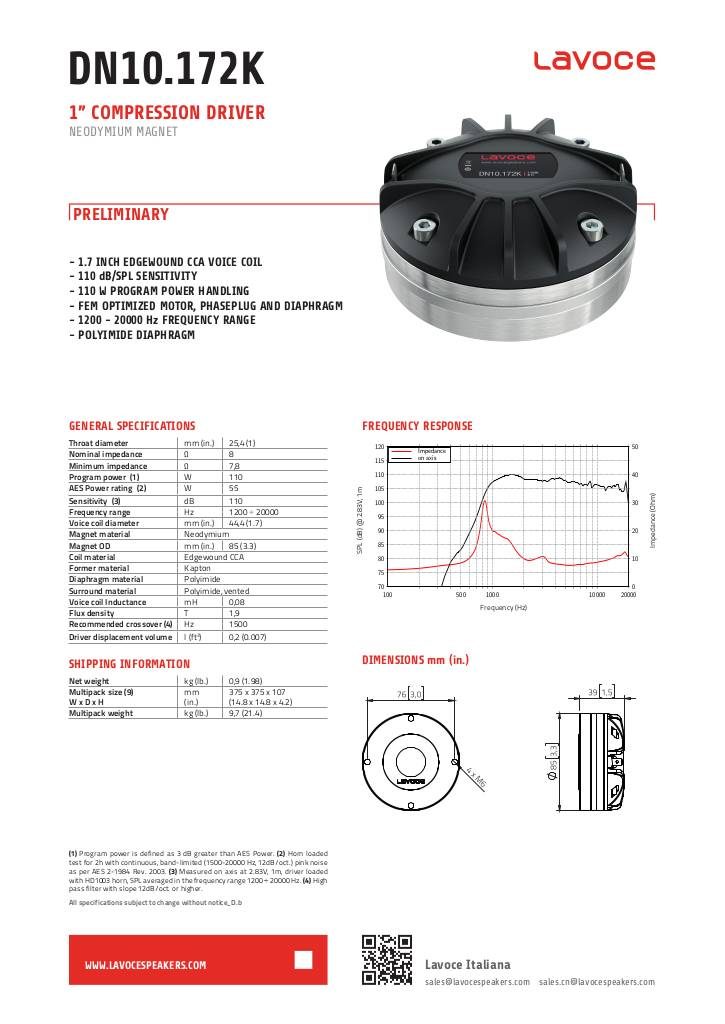

Scheda tecnica

n-20210315151215-1599050145-lavoce-dn10-172k-1in-compression-driver-d-b.pdf

LaVoce DN10.172K Technical specifications

  • Throat diameter mm (inches) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.8
  • Program power W 110
  • Nominal power AES W 55
  • Sensitivity dB 110
  • Frequency range Hz 1200 ÷ 20000
  • Voice coil diameter mm (inches) 44.4 (1.7)
  • Magnet material Neodymium
  • Coil material Edgewound CCA
  • Former material Kapton
  • Diaphragm material Polyimide
  • Surround material Polyimide, vented
  • Magnet OD mm (inches) 85 (3.3)
  • Voice coil inductance mH 0.08
  • Flux density T 1.9
  • Recommended crossover Hz 1500
  • Driver displacement volume l (ft³) 0.2 (0.007)
