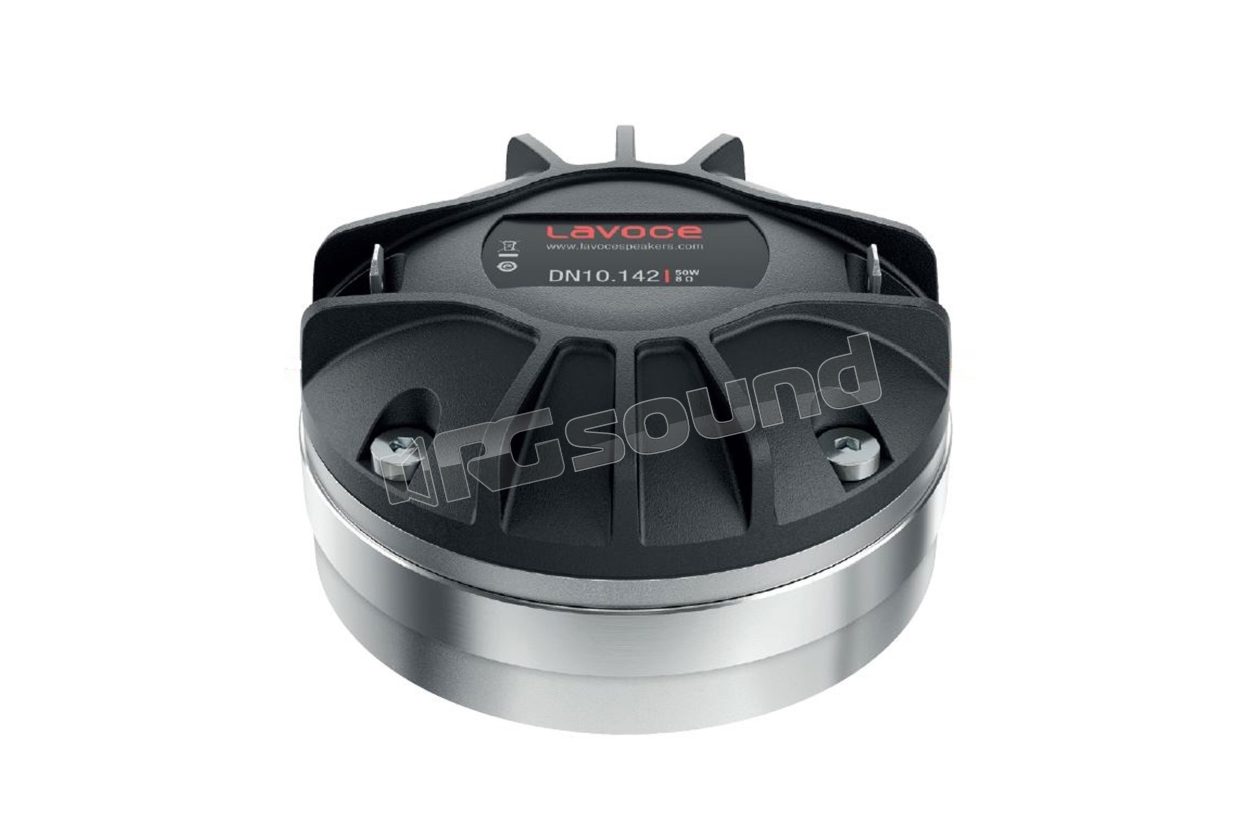

DN10.142 1" compression driver with neodymium magnet

LaVoce
Your price:
€ 70,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
50 Watt
RMS Power
25 Watt
Frequency Response
1000 - 18000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm

LaVoce DN10.142 1" compression driver with neodymium magnet

DN10.142 Features

  • Edgewound CCA voice coil 1.4 inches
  • Sensitivity 107 db/spl
  • Power handling program 50 W
  • Motor, pole piece and diaphragm optimized FEM
  • Frequency range 1000-18000 Hz
  • High temperature polymer diaphragm
  • Ultra-compact compression driver, with extended low frequency range

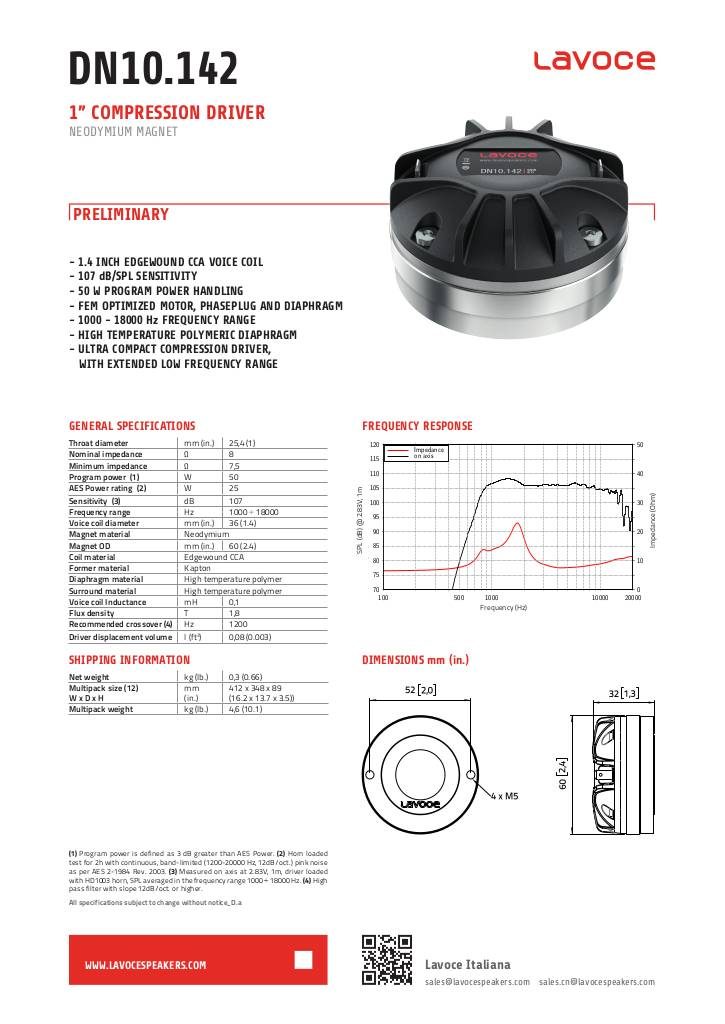

Scheda tecnica

n-20210315145141-1591891390-lavoce-dn10-142-1in-compression-driver-d-a.pdf

LaVoce DN10.142 Technical specifications

  • Throat diameter mm (inches) 25.4
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.5
  • Program power W 50
  • Nominal AES power W 25
  • Sensitivity dB 107
  • Frequency range Hz 1000 - 18000
  • Voice coil diameter mm (inches) 36 (1.4)
  • Magnet material Neodymium
  • Coil material Edgewound CCA
  • Former material Kapton
  • Diaphragm material High temperature polymer
  • Surround material High temperature polymer
  • Magnet OD mm (inches) 60 (2.4)
  • Voice coil inductance mH 0.1
  • Flux density T 1.8
  • Recommended crossover Hz 1200
  • Driver displacement volume l (ft³) 0.08 (0.003)
  • Net weight kg (pounds) 0.3 (0.66)
€ 70,80 Price incl. VAT
