DL-C5.2 13cm 2-way component kit Dream line

Rainbow

Discontinued

Your price:
€ 149,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 21.000 Hertz
Woofer Size
130 mm
Tweeter Size
36 millimetri
MAX Power
120 Watt
RMS Power
80 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cono in fibra
Tweeter Material
Cupola in seta e fibra

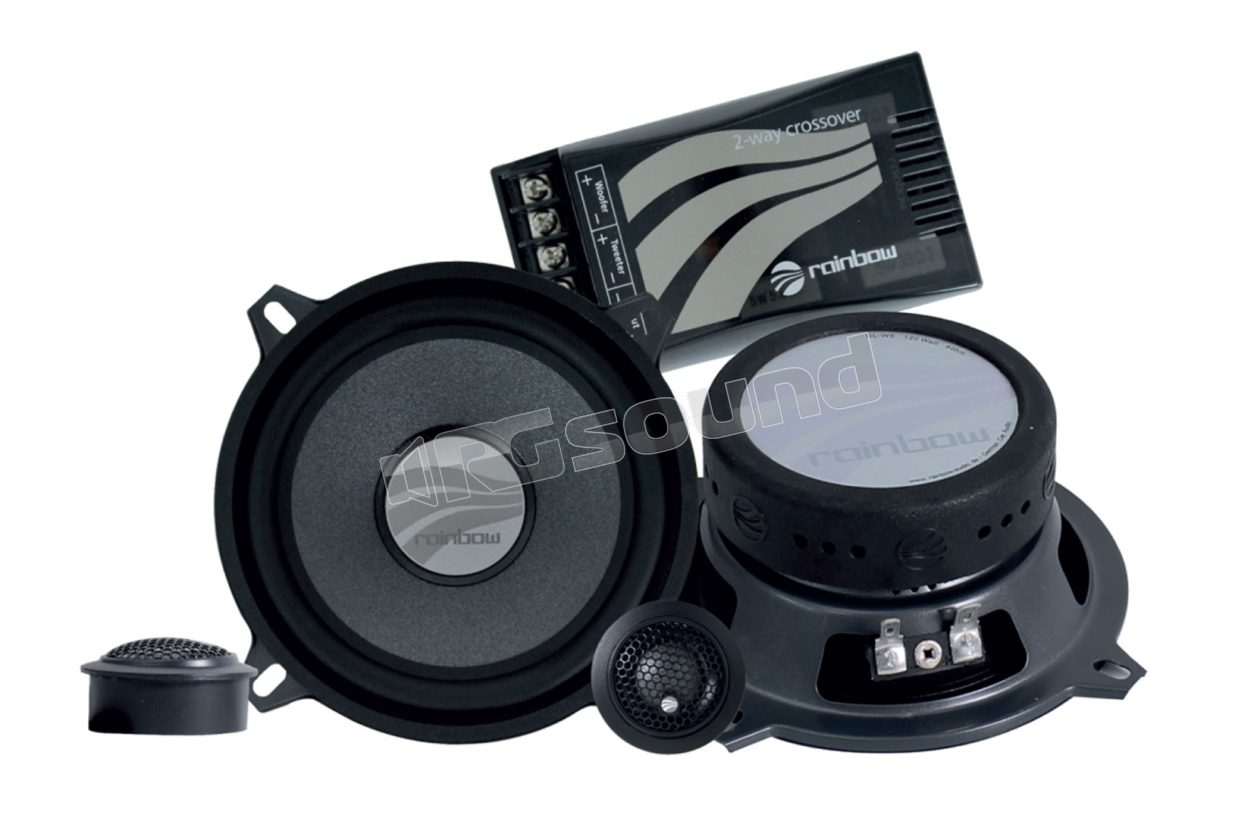

Rainbow DL-C5.2 two-way kit composed of a pair of DL-W5 130mm woofers, a pair of DL-T20 20mm tweeters and dedicated crossovers.

The Dream series provides kits and pairs of speakers made with quality materials at a price for which the definition "very good" is not enough.

The DL-W5 woofer has a steel basket, butyl rubber surround for controlled movement of the natural fiber cone. Kapton voice coil and copper conductors.

DL-T20 tweeter with 20 mm silk dome mixed with natural fiber and powerful neodymium magnet.

DL-C5.2 kit features

Maximum power 120 Watt

RMS power 80 Watt

Minimum amplifier power 30 Watt

Sensitivity 90 dB 1W/1m

Frequency response 60 - 21,000 Hz

Impedance 4 Ohm

Slope 2 x 12 dB/Okt.

Crossover frequency 4,200 Hz

Tweeter attenuation 3x

Component features

Woofer DL-W5

Maximum power 120 Watt

Nominal power 80 Watt

Minimum amplifier power 30 Watt

Sensitivity 90 dB 1W/1m

Frequency response 65 - 21,000 Hz

Impedance 4 Ohm

Slope 6 dB/Okt.

Crossover frequency 4,500 Hz

Diameter Ø 130 mm

External diameter Ø 153 mm

Installation hole Ø 113 mm

Mounting depth 54 mm

Tweeter DL-T20

Maximum power 150 Watt

Nominal power 100 Watt

Sensitivity 90 dB 1W/1m

Frequency response 2,000 - 21,000 Hz

Impedance 4 Ohm

Slope 12 dB/Okt. / 24 dB/Okt.

Crossover frequency 3,800 Hz (tweeter attenuation 2x)

Diameter Ø 36 / 45 mm

Mounting hole Ø 33 / 41 mm

Mounting depth 11 mm / with ring 14 mm
