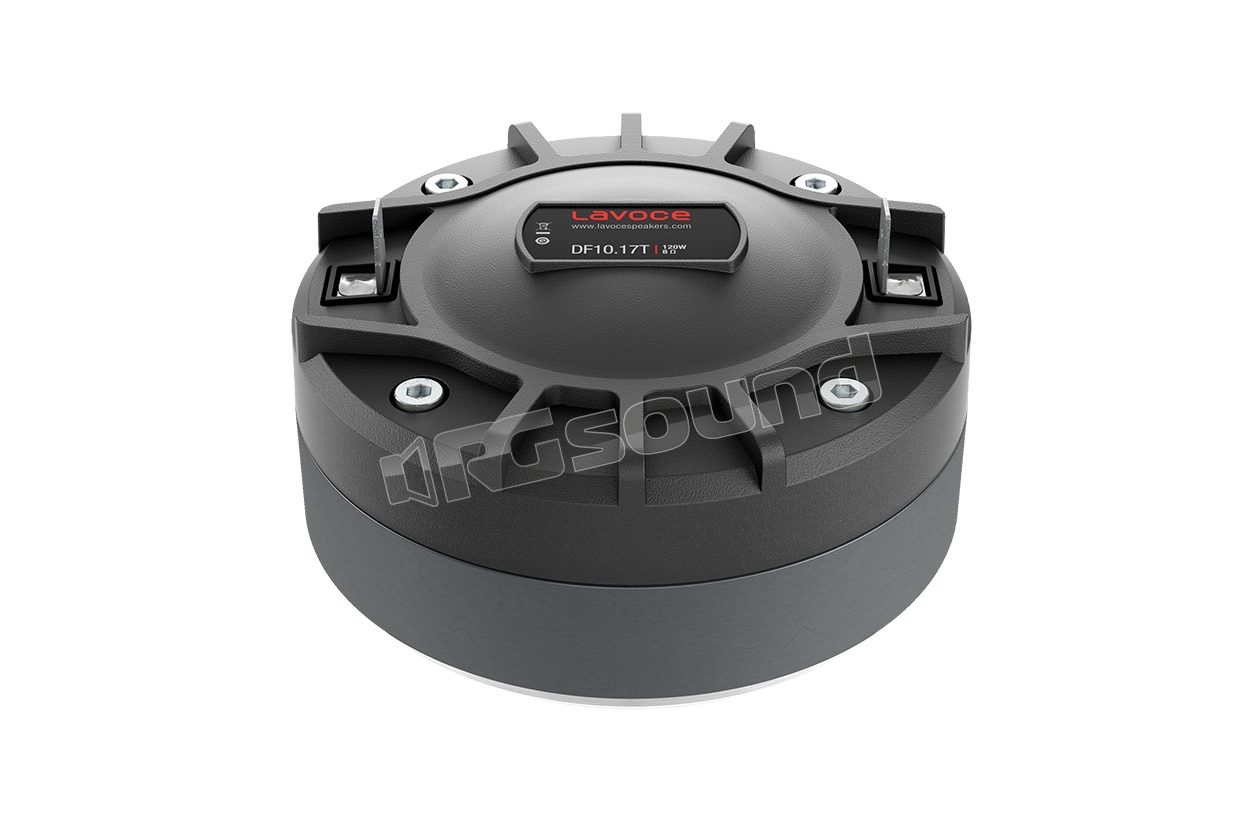

DF10.17T 1"/25mm High Frequency Tweeter

LaVoce

Discontinued

Your price:
€ 89,00
Price per single item (VAT included)
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1200 - 18000 Hertz
Sensitivity
106 dB
Impedance
8 Ohm
Weight
1,6 Kg
Voice Coil Diameter
44,4 mm

LaVoce DF10.17T High Frequency Tweeter 1"/25mm


LaVoce code 70R93103

DF10.17T Features

  • 1.7 inch edgewound CCA voice coil
  • Sensitivity 106 db/spl
  • 120 w program power handling
  • Motor, phaseplug and diaphragm optimized for FEM
  • Frequency range 1200 - 18000 hz
  • Diaphragm and suspension in titanium
  • Copper demodulation ring on the voice coil

Notes

  • Program power is defined as 3 dB higher than AES power.
  • Test with horn load for 2 hours with continuous pink noise and limited in band (1500-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on axis at 2.83 V, 1 m, speaker loaded with HD1003 horn, average SPL in the frequency range 1200 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

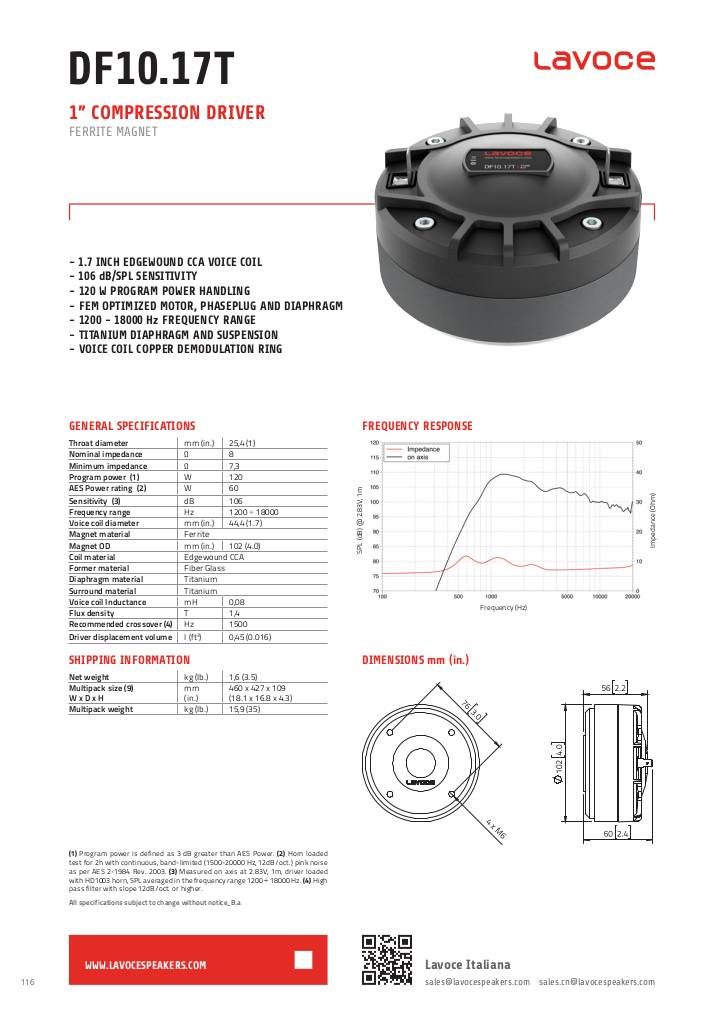

scheda tecnica

1549117661-df1017t-1.pdf

LaVoce DF10.17T Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power (1) W 120
  • AES power (2) W 60
  • Sensitivity (3) dB 106
  • Frequency range Hz 1200 ÷ 18000
  • Voice coil diameter mm (in) 44.4 (1.7)
  • Magnet material Ferrite
  • Coil material CCA edgewound
  • Membrane material Fiberglass
  • Diaphragm material Titanium
  • Edge material Titanium
  • Magnet OD mm (in) 102 (4.0)
  • Voice coil inductance mH 0.08
  • Flux density T 1.4
  • Suggested crossover (4) Hz 1500
  • Driver displacement volume l (ft³) 0.45 (0.016)
  • Multipack weight kg (lb) 15.9 (35)
  • Multipack dimensions L x W x H 460 x 427 x 109 (18.1 x 16.8 x 4.3)
  • Net weight kg (lb) 1.6 (3.5)
