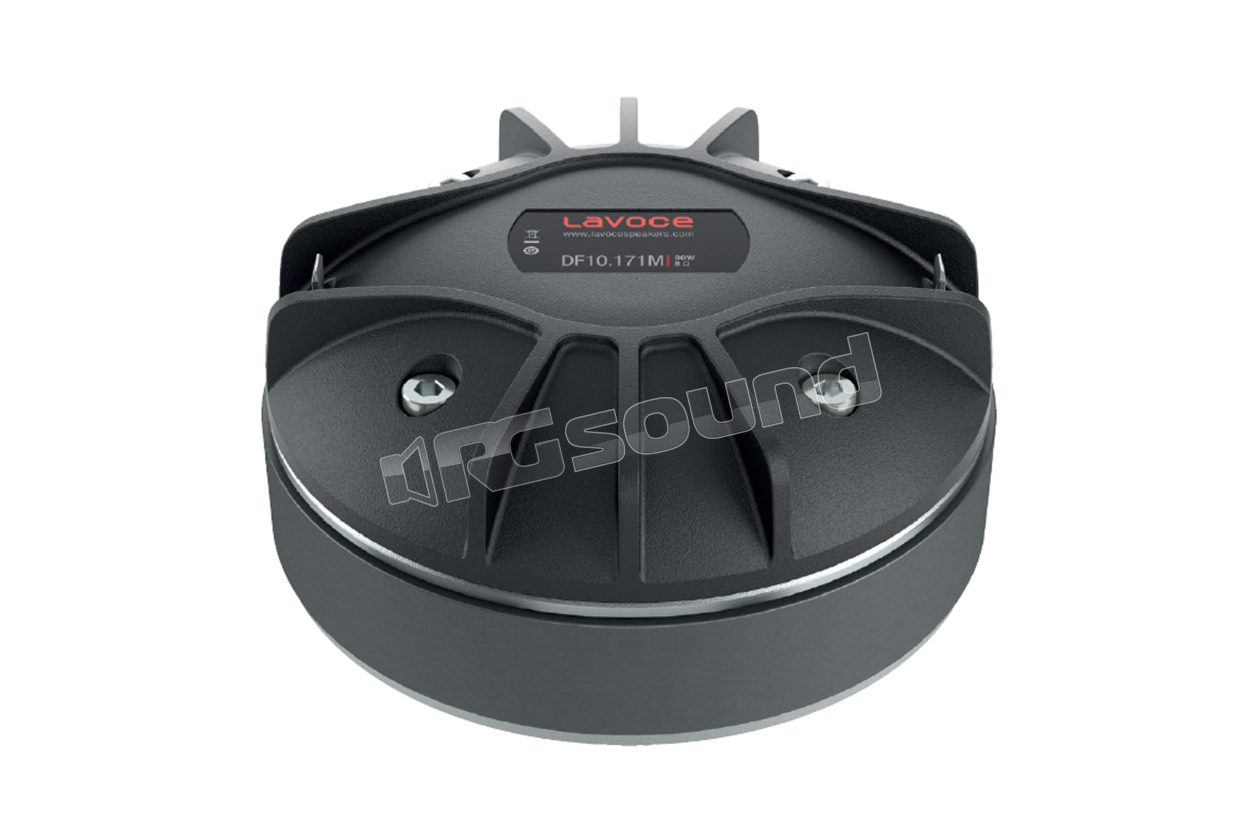

DF10.171M 1'' compression driver

LaVoce
Your price:
€ 67,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
90 Watt
RMS Power
45 Watt
Frequency Response
1200-20000 Hertz
Sensitivity
106.5 dB
Impedance
8 Ohm

LaVoce DF10.171M 1" Compression Driver

Main features of the DF10.171M speaker

  • Ferrite magnet
  • 1.7 inch ccaw voice coil
  • Sensitivity 106.5 db/spl
  • Program power handling 90 w.
  • Motor, phase plug and FEM optimized design
  • Frequency range 1200-20000 hz
  • Polyester diaphragm

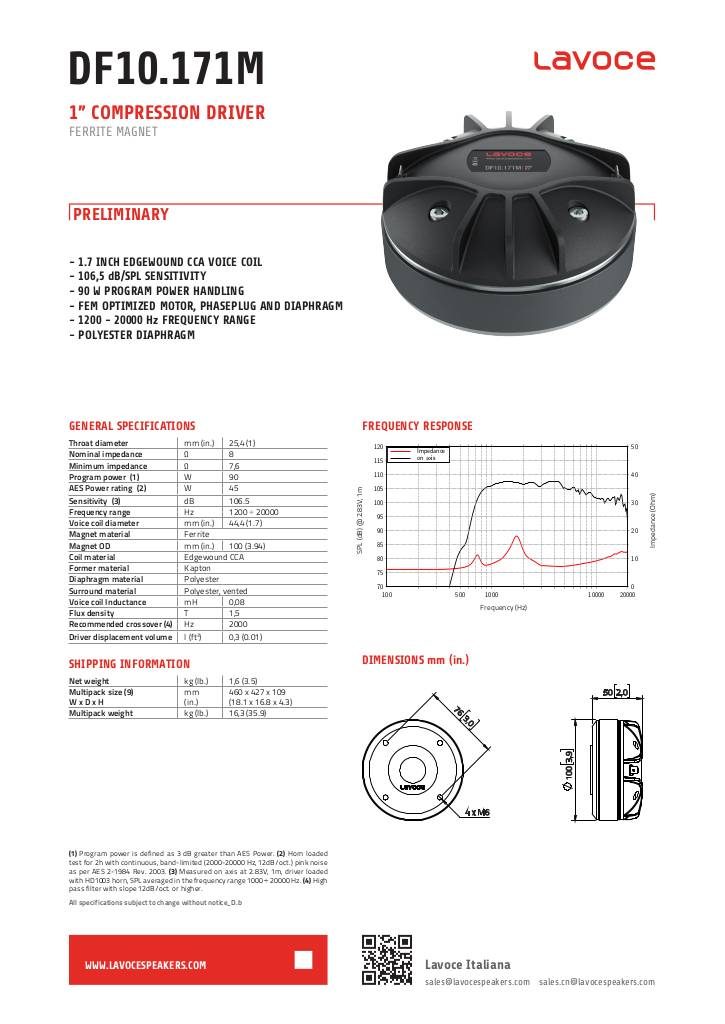

Scheda tecnica

n-20210315154214-1588163586-lavoce-df10-171m-1in-compression-driver-d-b.pdf

LaVoce DF10.171M Technical Specifications

  • Throat diameter mm (inches) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.6
  • Program power W 90
  • AES nominal power W 45
  • Sensitivity dB 106.5
  • Frequency range Hz 1200-20000
  • Voice coil diameter mm (inches) 44.4 (1.7)
  • Magnet material Ferrite
  • Coil material Edgewound CCA
  • Former material Kapton
  • Diaphragm material Polyester
  • Surround material Polyester, vented
  • Magnet OD mm (inches) 100 (3.94)
  • Voice coil inductance mH 0.08
  • Flux density T 1.5
  • Recommended crossover Hz 2000
  • Driver displacement volume l (ft³) 0.3 (0.01)
€ 67,80 Price incl. VAT
