DF10.101LS 1" compression driver

LaVoce
Your price:
€ 30,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
40 Watt
RMS Power
20 Watt
Frequency Response
1500 - 18000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm

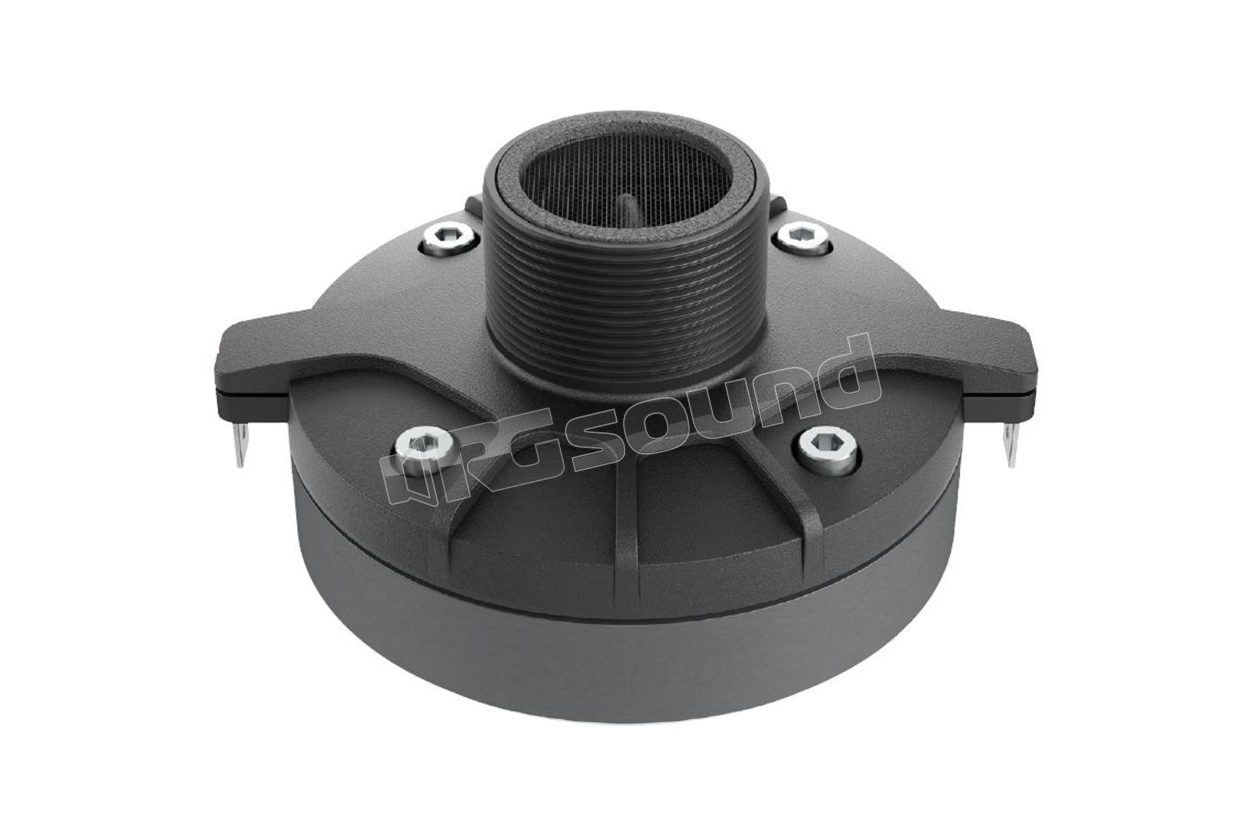

LaVoce DF10.101LS 1" Compression Driver

Main features of the DF10.101LS speaker

  • Ferrite magnet
  • 1 inch CCAW voice coil
  • Sensitivity 107 db/spl
  • Program power handling 40 w.
  • Motor, phase plug and diaphragm optimized fem
  • Frequency range 1500-18000 hz
  • High temperature polymer diaphragm
  • Screw coupling for 1 3/8 inch threaded horns

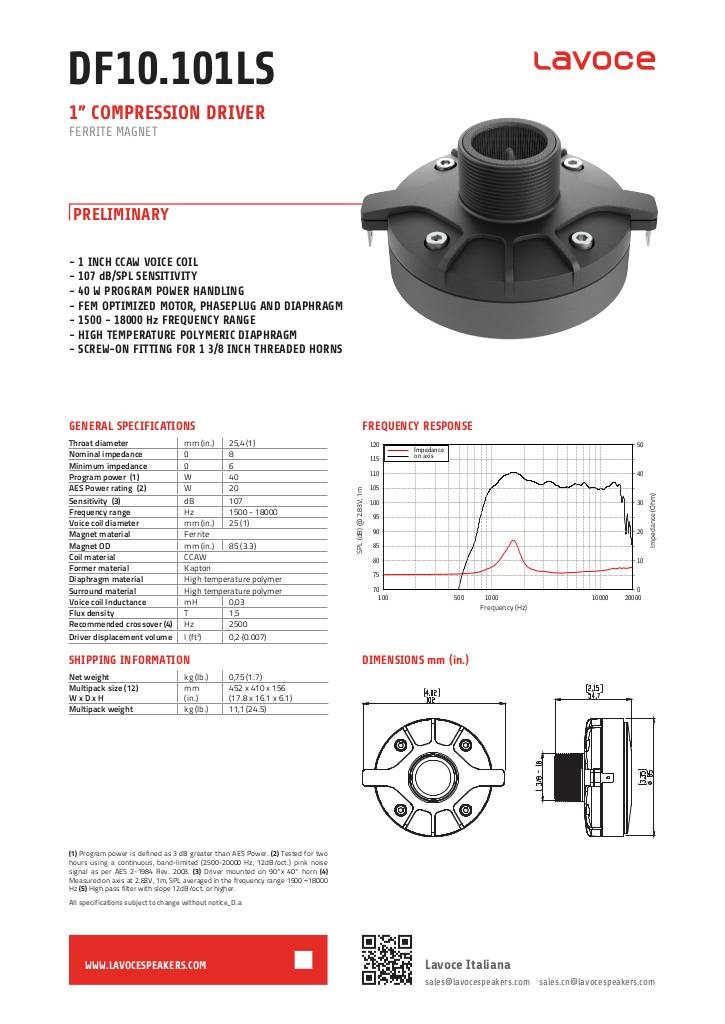

Scheda tecnica

n-20210315153752-1599049495-lavoce-df10-101ls-1in-compression-driver-d-a.pdf

LaVoce DF10.101LS Technical Specifications

  • Throat diameter mm (inches) 25.4
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 40
  • Rated power AES W 20
  • Sensitivity dB 107
  • Frequency range Hz 1500-18000
  • Voice coil diameter mm (inches) 25
  • Magnet material Ferrite
  • Coil material CCAW
  • Former material Kapton
  • Diaphragm material High temperature polymer
  • Surround material High temperature polymer
  • Magnet OD mm (inches) 85 (3.3)
  • Voice coil inductance mH 0.03
  • Flux density T 1.5
  • Recommended crossover Hz 2500
  • Driver displacement volume l (ft³) 0.2 (0.007)
€ 30,00 Price incl. VAT
