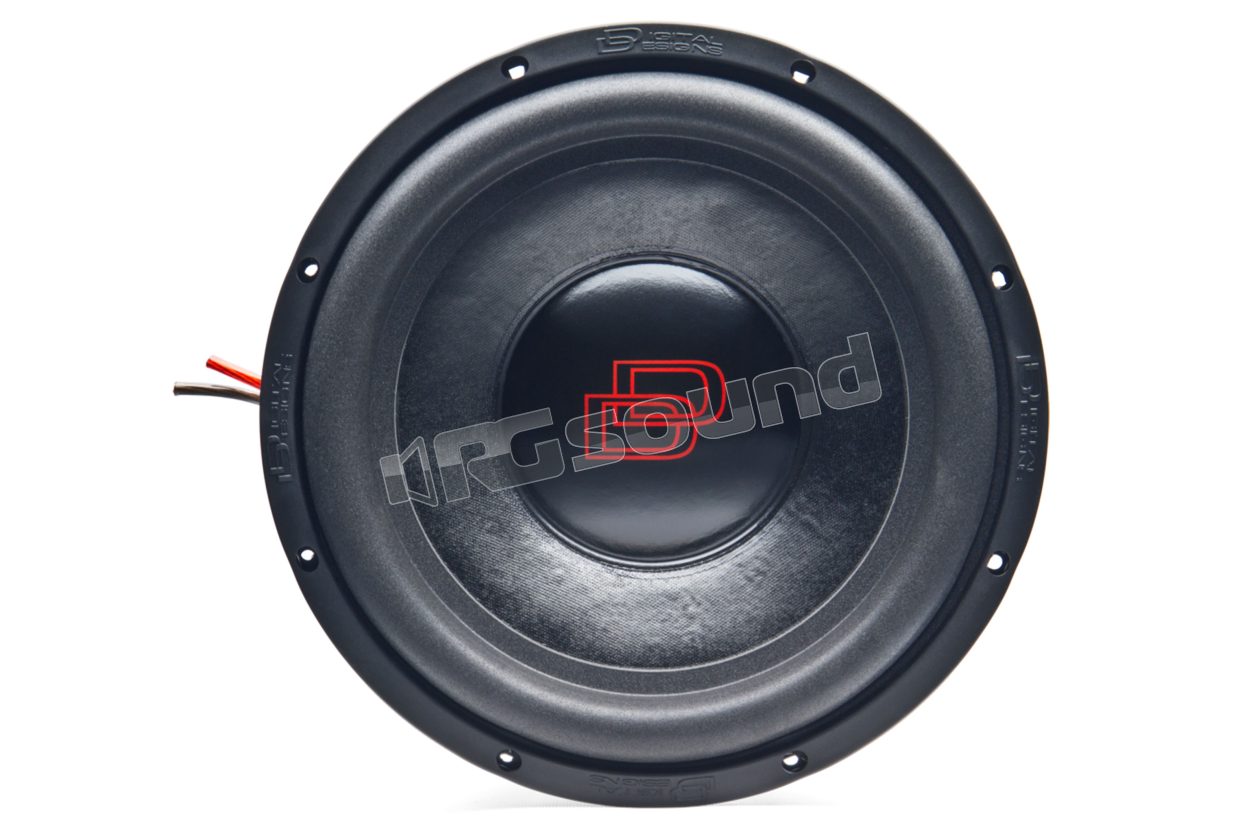

DD510c D2 dual 2 ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 149,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1.200 Watt
RMS Power
150 - 400 Watt
Impedance
2 + 2 Ohm
Weight
7 Kg
Installation Depth
140 mm

Digital Design 510c subwoofer 25cm with dual voice coil 2 Ohm, RMS power 150W

With a highly efficient design that combines high performance with minimal added system weight. The 500 series subs feature a dual magnet motor that provides the extra energy needed for both sealed and ported enclosures.

Resonance frequency Fs 41.72 Hz
Diaphragm surface area Sd 366.2 cm²
Effective diaphragm diameter Ø 21.59 cm
Mechanical Q Qms 6.20
Electrical Q Qes 0.63
Total Q factor Qts 0.57
Efficiency bandwidth product EBP 66
Equivalent air volume of the suspension Vas 12.289 liters
Mechanical compliance suspension Cms 65 μm / N
Moving mass Mmd 221.2 g
Moving mass (including air load) Mms 225.3 g
Mechanical resistance Rms 9.5 N · s / m
Maximum linear excursion Xmax ± 10 mm
Excursion limit Xlim ± 32 mm
Displacement volume at Xmax Vd 366.2 cm³
Efficiency 0.14%

Discontinued
