DD506 dual 4 ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 139,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
165 mm
MAX Power
1.200 Watt
RMS Power
150 - 400 Watt
Impedance
4 + 4 Ohm
Weight
5 Kg
Installation Depth
114 mm
Woofer Material
Cellulosa e fibra di vetro

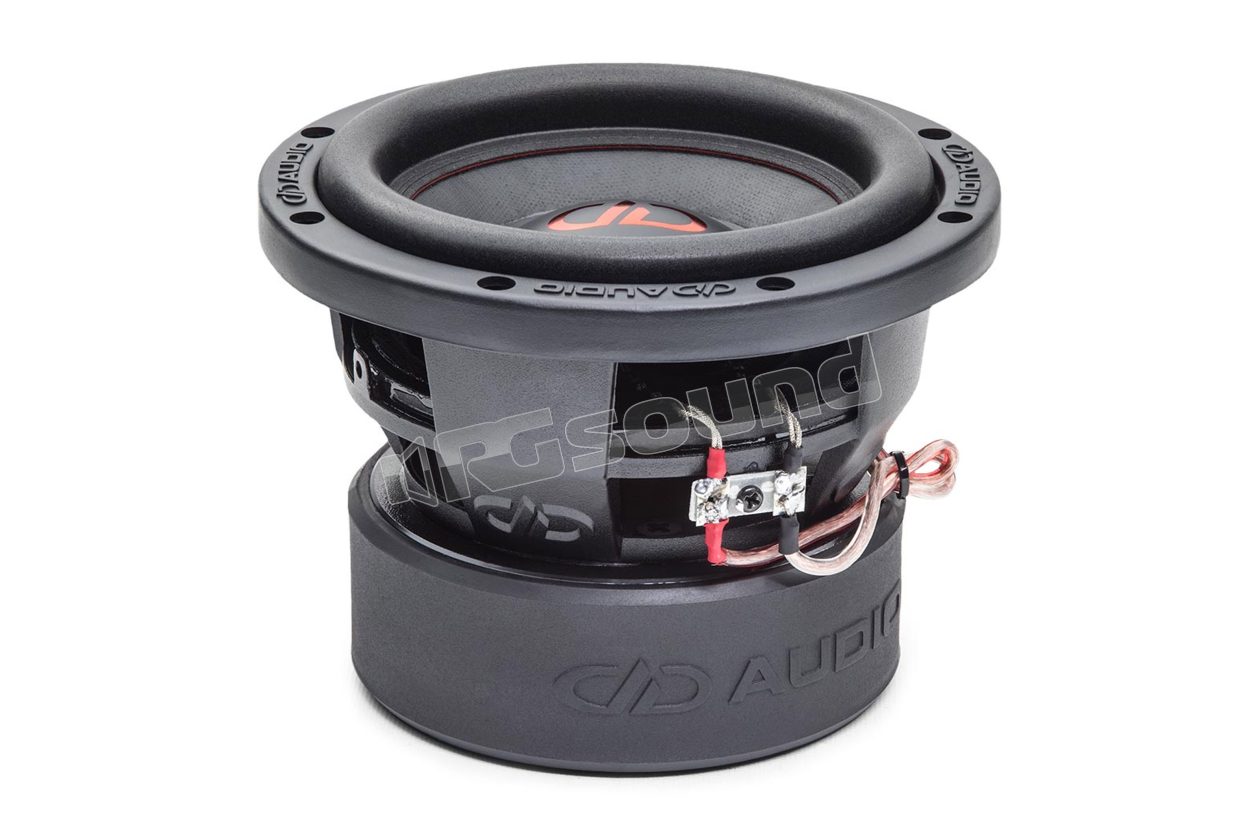

DD Audio 506 165 mm subwoofer, dual coil 4 Ohm

The 500 series is one of the most performant subs you can find in its power class. With a highly efficient design, the 500 series can be easily driven at high power levels with a minimum of 150-400 Watt. Compared to the 200 series, the 500 series uses a longer coil, a more powerful motor and the suspension is designed to handle higher transient peaks. Extremely versatile subwoofers that work well in sealed and vented enclosures.

500 series sub features:

EROM surround
2.0" voice coil capable of operating at high temperatures
Double Layer Deep bass, high excursion spider system
Cellulose and fiberglass cone
DD stamped steel basket (models 508-512)
Aluminum basket (model 506)

DD Audio 506 technical specifications

Subwoofer diameter 165 mm
RMS power 150 - 400 W
Maximum power 1,200 W
Dual coil 50 mm
Impedance 4 + 4 Ohm
Mounting hole diameter 152 mm
Mounting depth 114 mm

Discontinued
