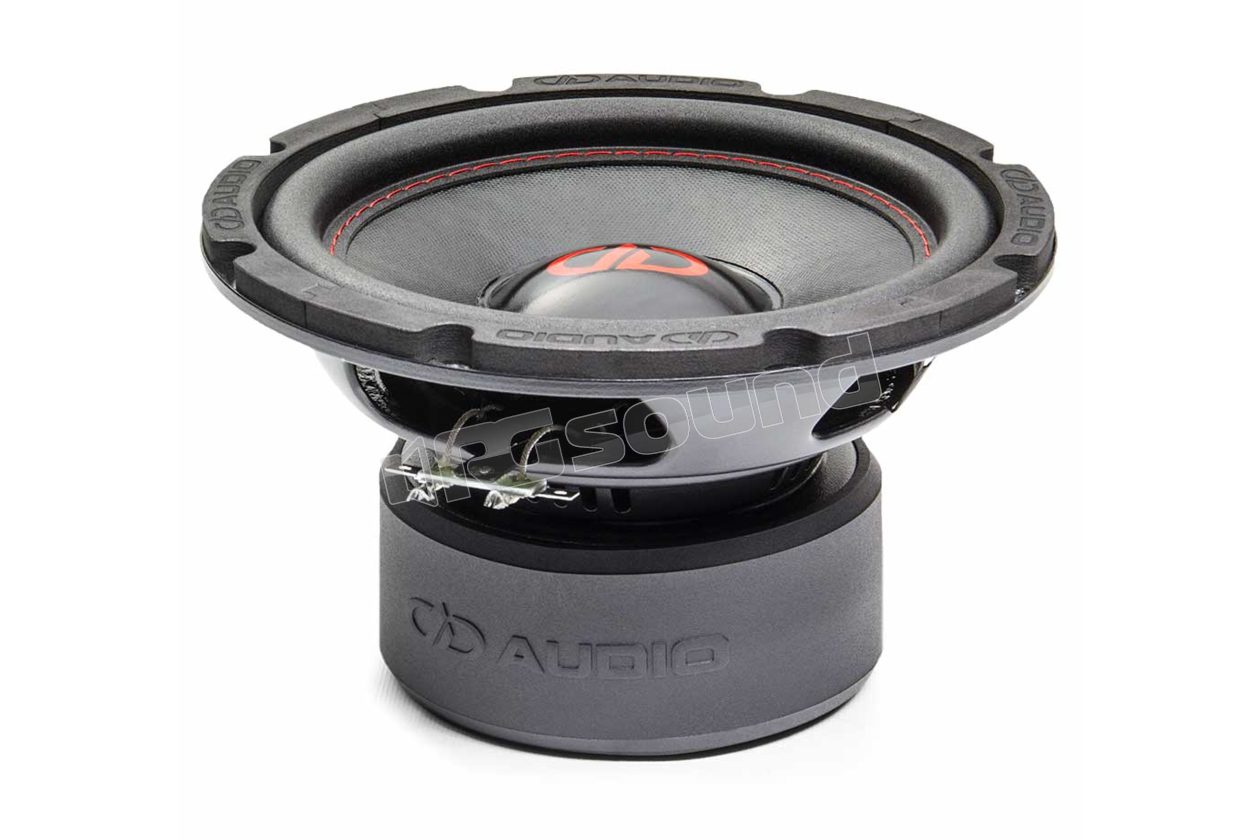

DD108 20cm subwoofer for sealed or ported enclosure

DD Audio Digital Designs

Discontinued

Your price:
€ 79,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
100 Watt
Impedance
4 + 4 Ohm
Installation Depth
103 mm
Woofer Material
Carta non pressata

DD Audio DD108 20cm / 8" subwoofer from the 100 Series, designed to deliver high performance with a contained power of 100 Watts. They are hand-crafted and tuned to perform well in sealed and vented enclosures.

Dual-stitched EROM surround
1.5" high temperature aluminum voice coil
Dual-layer laminated spider
Unpressed paper cone
Basket with cooling vents
Rear plate gap vent
Extended pole

DD Audio DD108 technical specifications

Speaker size (inches): 8
RMS Watts: 100
Peak Watts: 600
Impedance: D4
VCD (in): 2
Fa (Hz): 41
Qms: 5.692
Qes: 0.482
Qt: 0.445
Vas: 20.19
Outer frame diameter (inches): 8 13/64
Outer frame diameter (MM): 208
Mounting diameter (inches): 7 13/16
Mounting diameter (MM): 183
Mounting depth (inches): 4
Mounting depth (MM): 103
Motor diameter (inches): 4 15/16
Motor diameter (MM): 125
Sealed enclosure (CuFt): 0.5 - 1.0
Ported enclosure (CuFt): 0.75 - 1.25
