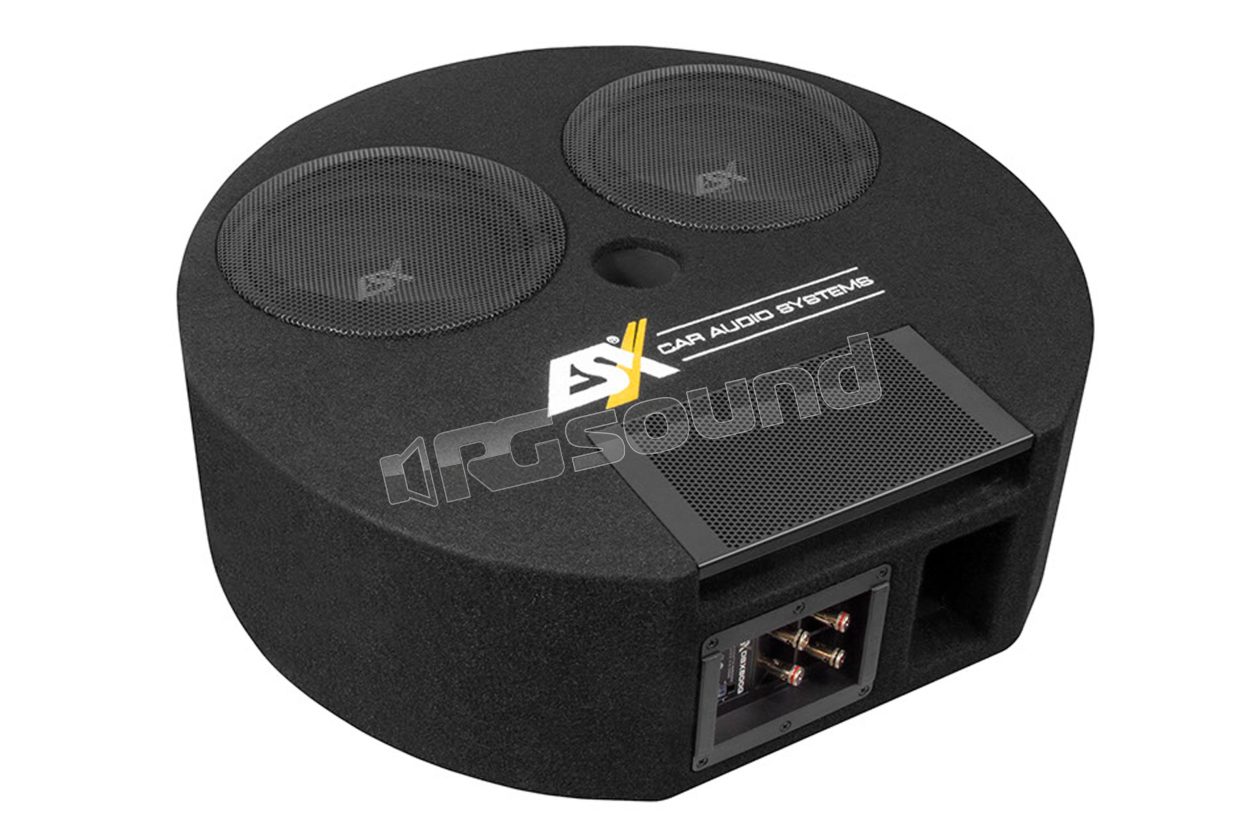

DBX800Q bass reflex system with dual 20cm subwoofers for spare wheel well

ESX
Your price:
€ 258,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
30 -300 Hertz
Impedance
2 + 2 Ohm
Enclosure Size
585 x 180 mm
Enclosure Type
Reflex Enclosure

ESX DBX800Q dual bassreflex 20cm

The new DBX models not only have the particularity of delivering an enormous amount of bass, but thanks to their compact design, they take up little space in the trunk.

DBX800Q can be converted into an active subwoofer simply by installing an ESX QM amplifier in the specially designed recess. The idea allows you to save even more space and also looks very elegant. If you don't want to sacrifice space and want a spare wheel recess, the DBX800Q system with dual 20 cm woofer can bring really rich bass into your car.

All models in the DBX series are equipped with a QUICK CONNECT connection terminal, with which you can easily establish the connection via Molex plug-in. Additionally, the newly designed multi-terminal also offers the possibility of connecting standard amplifiers via push pin.

ESX DBX800Q Technical Features

Dual Bass Reflex System from 2 x 20 cm (8") for the spare wheel recess

Rated Power 400/800 Watt RMS / max.

Impedance 2 + 2 Ohm, voice coils 50 mm (2")

Installation with protective grille measurement 200 x 36 x 120 mm

Dedicated slot for ESX QM400.2 and QM400.4 amplifiers

High quality logo embroidery, robust carpet covering

QUICK CONNECT terminal

Dimensions: Ø 58.5 x 18 cm

Center mounting hole: Ø 6 cm

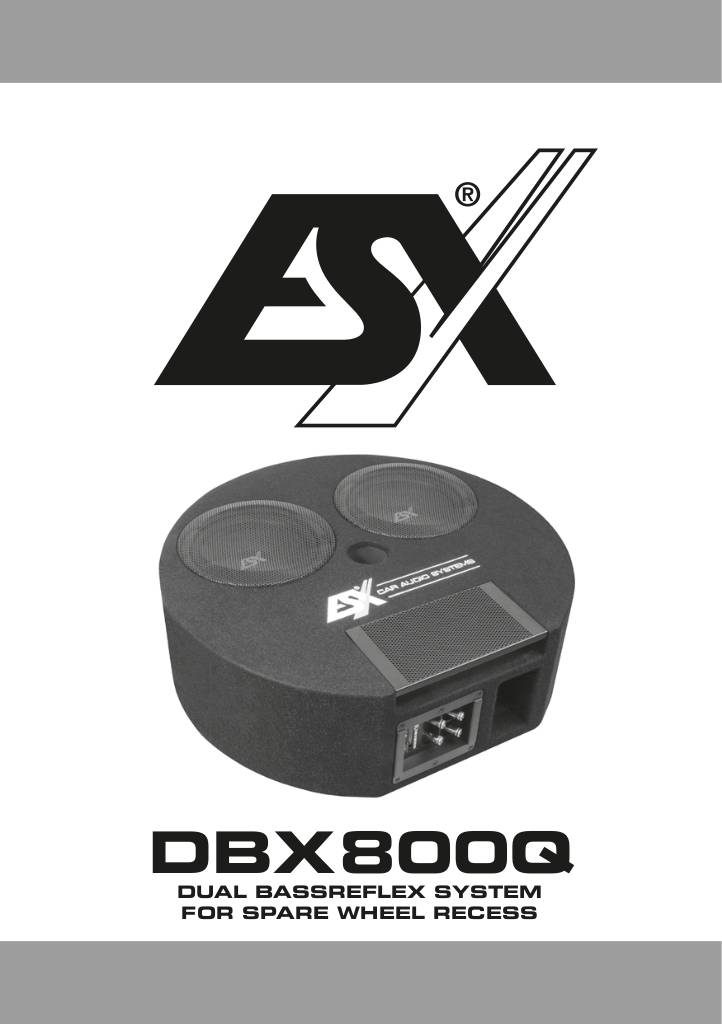

Manuale utente

n-20210211103416-dbx800q.pdf
