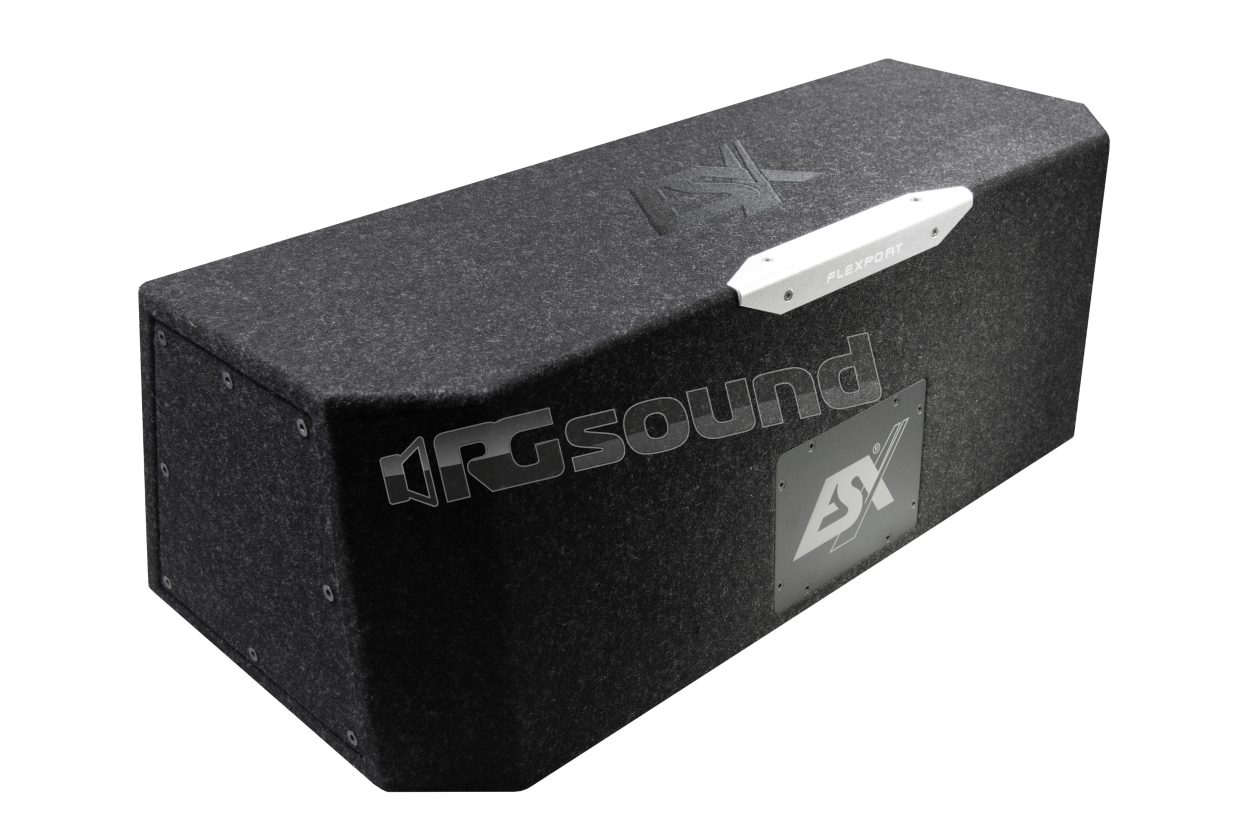

DBX208BPQ 2x8” sub with dual bandpass system

ESX
Your price:
€ 335,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
Other sizes
MAX Power
800 Watt
RMS Power
400 Watt
Impedance
2+2 Ohm
Enclosure Size
78 x 29 x 39/29 mm
Enclosure Type
Sealed Enclosure

ESX DBX208BPQ Sub 2x8" with double bandpass system

The dual enclosure DBX208BPQ is designed as a bandpass system, the particularity of the construction is the internal bass channel, which carries the sound forward or backward. Depending on the application, the aluminum rear cover of the port can also be screwed to the front opening. With this alternative mounting, the opening of the rear channel becomes active. Especially in convertibles or open vehicles, the dual enclosures can develop their full potential.

In addition to conventional connection sockets, in which the 2+2 Ω output can be connected to a single 4 or even 1 Ω output, the box also has the new and innovative Quick Connect socket, which allows a plug+play connection with any amplifier via a 4-pin Molex connector. This requires special Quick Connect subwoofer cables, available in 4 different lengths.

Scheda Tecnica

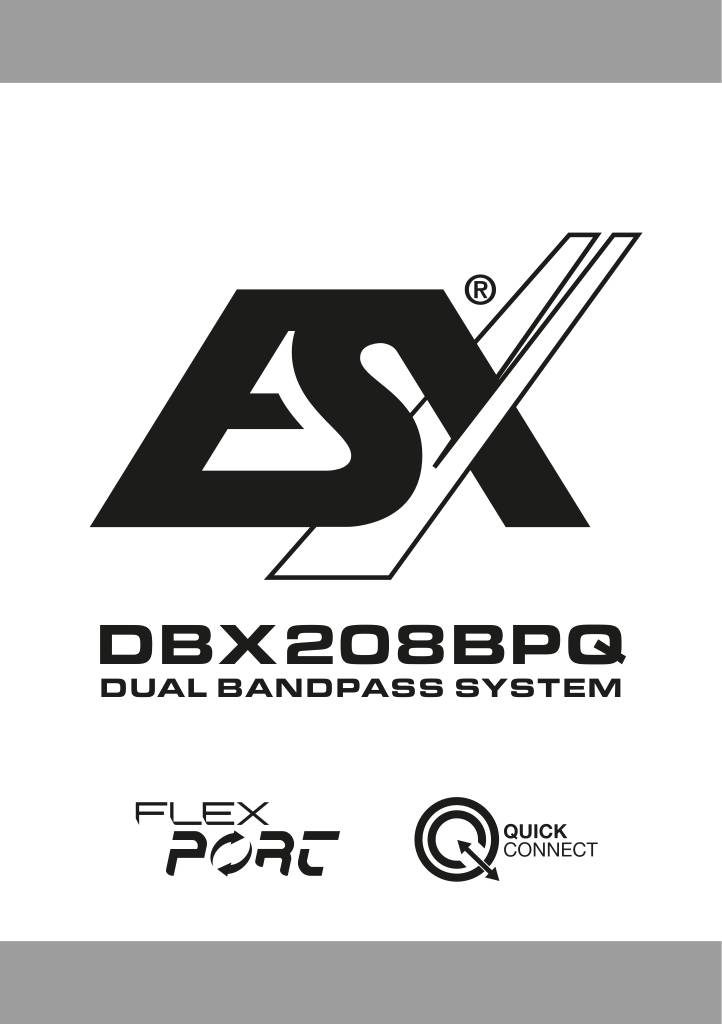

n-20240820170440-dbx208bpq.pdf

ESX DBX208BPQ Technical Specifications

  • Dual bandpass system 2 x 20 cm (8") with Flex Port technology
  • Rated power 400/800 Watt RMS/Max.
  • Impedance 2+2 Ω
  • Voice coils 50 mm (2")
  • Subwoofer with flared paper cone
  • High quality logo embroidery
  • Robust carpet coating
  • Quick connect socket
  • Dimensions 78 x 29 x 39/29 cm
€ 335,00 Price incl. VAT
