DBX200Q 6x9" enclosed subwoofer Ducato Jumper Boxer

ESX

Discontinued

Your price:
€ 143,00
Price per single item (VAT included)
Type
Subwoofer in enclosure
Speaker Size
6x9''
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
40-300000 Hertz
Impedance
2 Ohm
Enclosure Size
365x185x265 mm
Enclosure Type
Reflex Enclosure

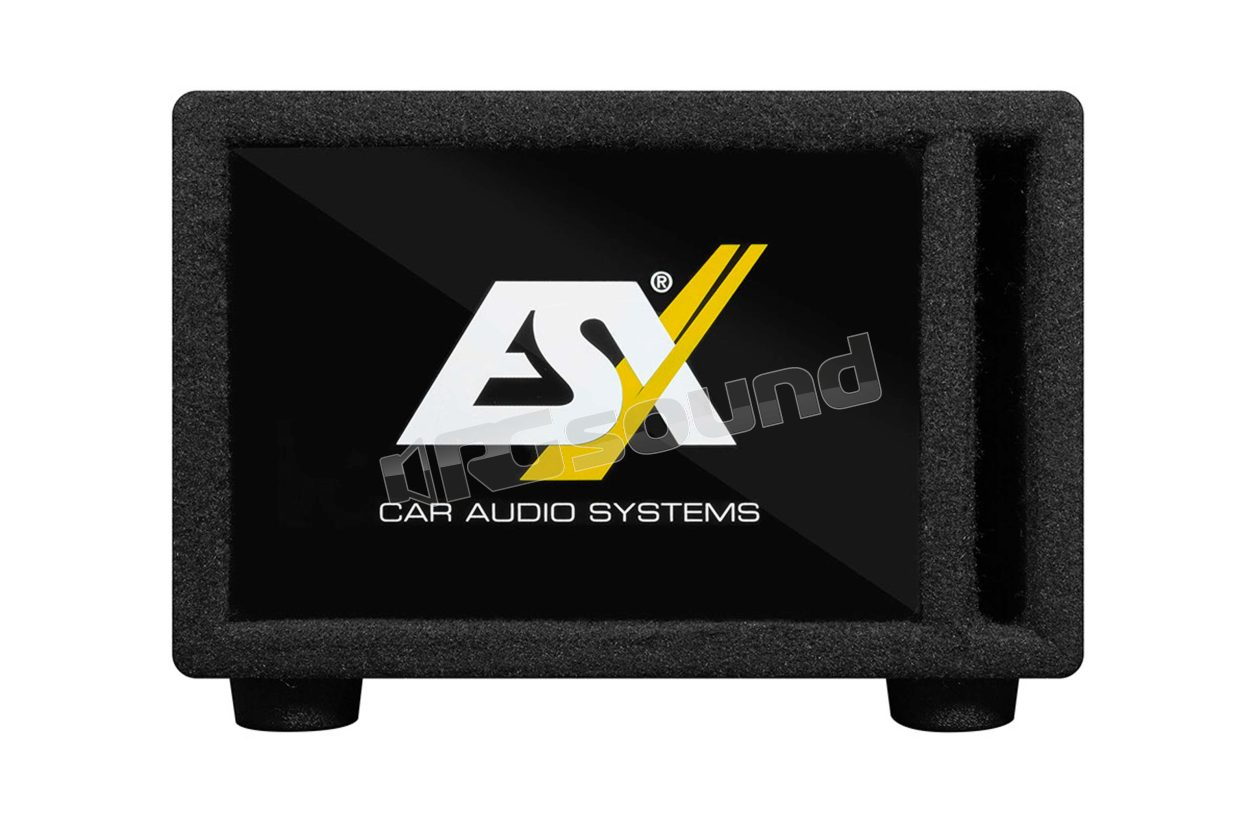

ESX DBX200Q Subwoofer in enclosure 6x9" Ducato Jumper Boxer

Often owners of Fiat Ducato or Citroen Jumper / Peugeot Boxer want to improve the sound of the original audio system. Since no subwoofer is installed originally, the sound in the bass frequency range leaves something to be desired. To fill this gap ESX has created the compact bass reflex sub DBX200Q, which can be easily positioned anywhere in the vehicle with a discreet installation. Even better, if no additional battery is installed it can be positioned under the front passenger seat and fits perfectly to the dimensions of 36.5 x 18.5 x 26.5 cm of the free space under the seat.

The DBX200Q system is very compact and can also be used universally in all other vehicles as a retrofit enclosure. Especially with the so-called "Downfire" principle, the downward emission of the subwoofer, produces very powerful bass, because the high tones are eliminated. An optical highlight is the enclosure with fine acrylic glass and the ESX logo, the woofer itself is protected by a sturdy grille. In addition to conventional connection terminals, where the 2 + 2 ohm output can also be connected to a single 4 ohm or even 1 ohm output, the enclosure has the new and innovative QUICK CONNECT terminal, which allows plug & play connection with any amplifier via a 4-pin Molex connector. It requires special cables for, available in 4 different lengths.

Compatible models:

  • Fiat Ducato F8 (from 2021)
  • Fiat Ducato III (Type 250, from 2006), Ducato IV (Type 290, from 2015)
  • Citroën Jumper II (Type 250, from 2006), Jumper III (Type 290, from 2015)
  • Peugeot Boxer II (Type 250, from 2006), Boxer III (Type 290, from 2015)
  • Opel Movano III (from 10/2021)
  • Ford Ka II (2009-2016)

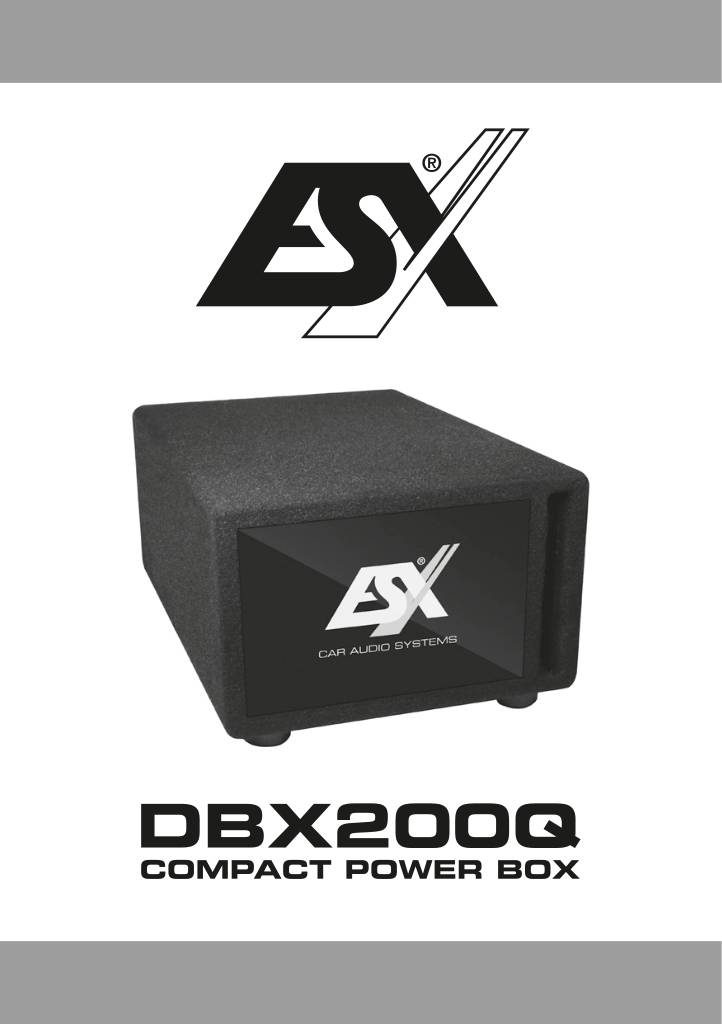

Manuale di istruzioni

n-20181123153653-dbx200q.pdf

ESX DBX200Q Technical Specifications

  • Nominal power 200 Watt RMS
  • Maximum power 400 Watt
  • Impedance 2 + 2 Ohm
  • Bass reflex port positioned laterally
  • Subwoofer with paper cone
  • Subwoofer protective grille
  • QUICK CONNECT terminal
  • Dimensions: 36.5 x 18.5 x 26.5 cm
Discontinued
