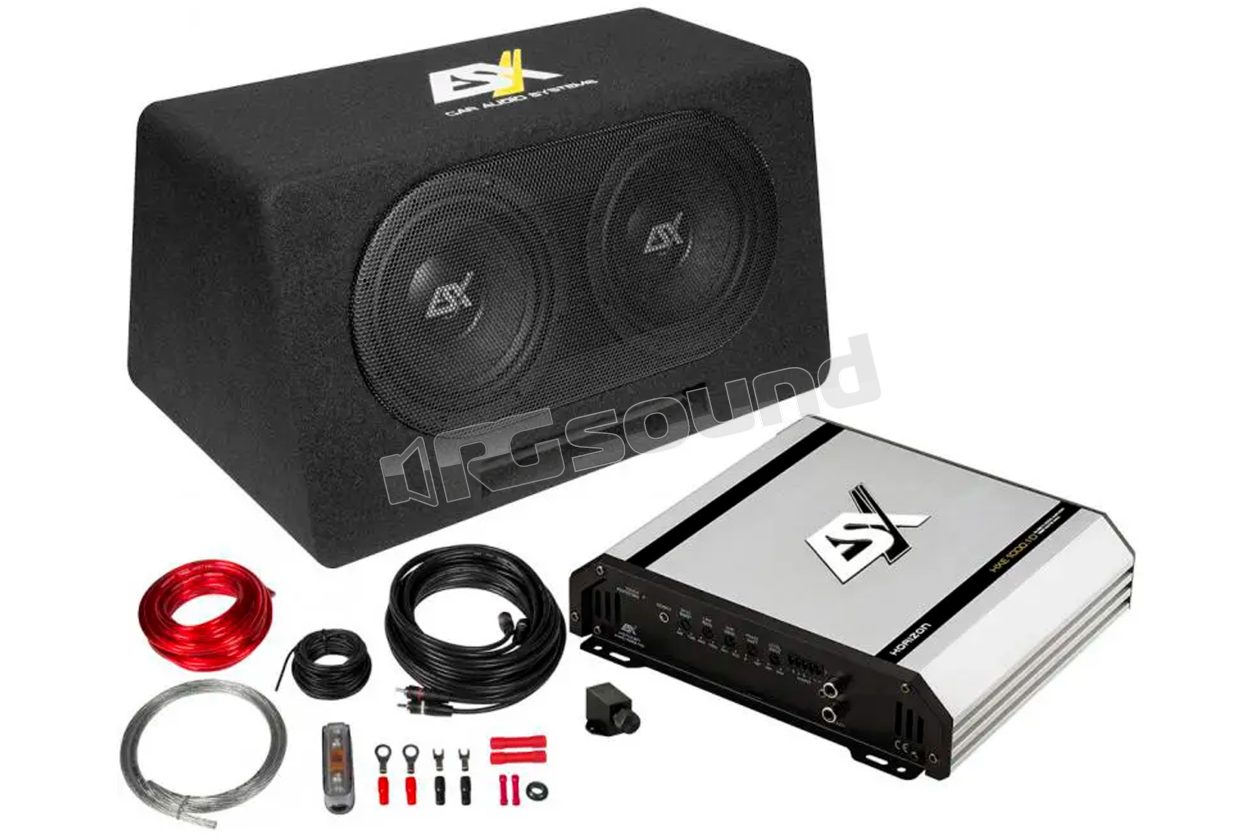

DBP208Q bass reflex system with dual 20cm subwoofer and ESX HXE1000.1D amplifier

ESX

Discontinued

Your price:
€ 354,00
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
800 Watt
RMS Power
400 Watt
Impedance
2 + 2 Ohm
Enclosure Size
220 x 51 x 222 mm
Enclosure Type
Reflex Enclosure

ESX DBP-208Q powered bass reflex system with dual 20 cm (8") subwoofers and ESX HXE1000.1D

Bass reflex enclosure with trapezoidal housing, equipped with protective grilles that optimally protect the high-quality woofers and their paper cone. These are equipped with a 50 mm voice coil and provide powerful bass. The DBP208Q also features QUICK CONNECT terminals, which allow connection via Molex in the blink of an eye. Additionally, the newly designed multi-terminal also offers the possibility of connecting standard amplifiers via push pin terminals.

ESX HXE1000.1D Class D mono digital amplifier with a maximum power of 2000 Watts.

Solid aluminum heat sink with acrylic inlays and Diamond Cut wire logo
Lower panel with robust mounting brackets
3-way protection circuit
MOSFET PWM power supply
High level inputs with error protection system
Automatic turn-on
Compact bass remote1 x 400/900/1100 Watt max. @ 4/2/1 Ohm

Scheda tecnica

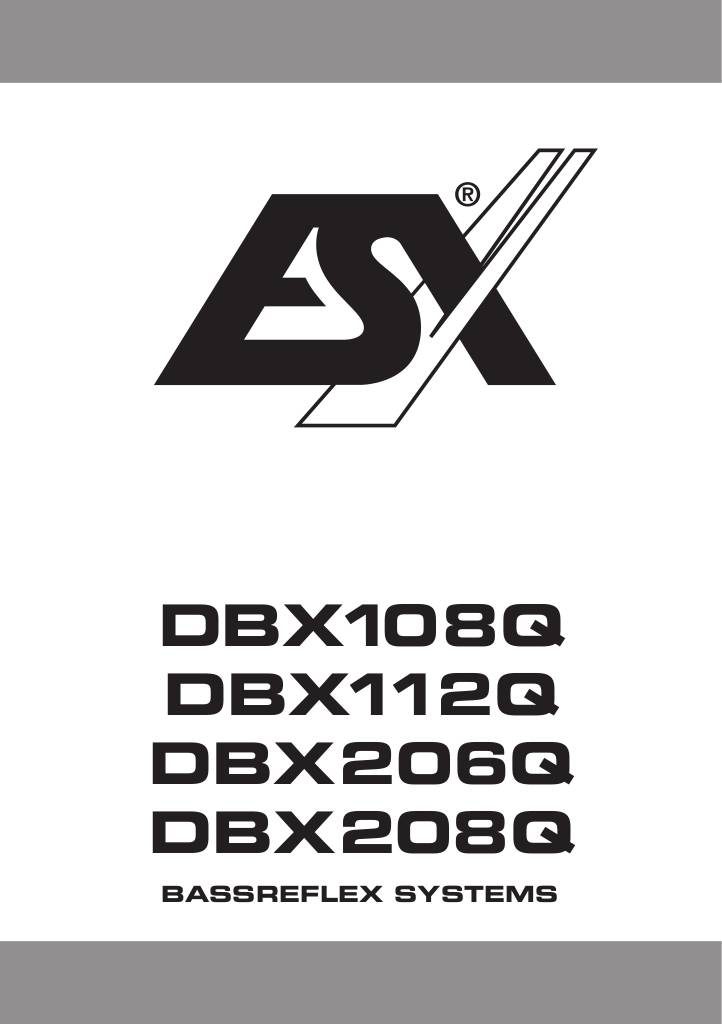

n-20200917162719-dbx-series.pdf

ESX DBP-208Q technical specifications of components

DBX-208Q Subwoofer

Nominal power 400/800 Watt RMS / max.

Impedance 2 + 2 Ohm

Voice coils 50 mm (2")

Subwoofer with recessed paper cone

Subwoofer protective grilles

High quality logo embroidery, robust carpet covering

QUICK CONNECT terminal

Dimensions: 57 x 31 x 37/22 cm

HXE1000.1D Amplifier

1 x 300/425/550 Watt RMS @ 4/2/1 Ohm

LPF 40-150 Hz, Subsonic 15-35 Hz

Bass Boost 0-12 dB, Phase Shift 0-180°

RCA inputs, RCA outputs, compact bass remote

High level inputs, automatic turn-on function

Dimensions: 220 x 51 x 222 mm

Efficiency up to 84%
