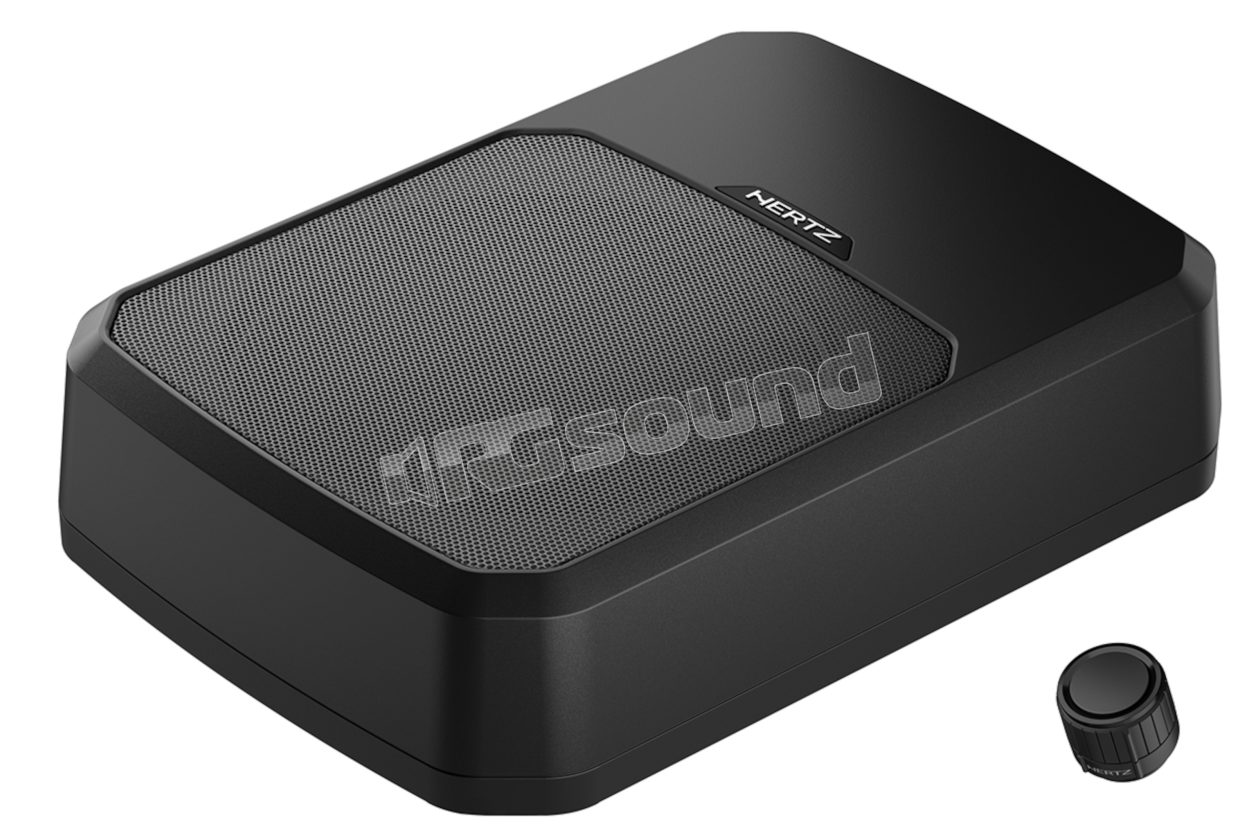

DBA 201 F Dieci line flat active subwoofer

Hertz
Your price:
€ 299,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
440 Watt
RMS Power
220 Watt
Frequency Response
15 - 150 Hertz
Sensitivity
100 dB
Weight
6,7 Kg
Enclosure Size
345 x 245 x 79 mm
Enclosure Type
Sealed Enclosure

Hertz DBA 201F Flat Active Subwoofer Dieci Line

The flat active subwoofer enclosure DBA 201 F, optimized with FEM simulation, guarantees superior performance, maximizing subwoofer output with a super flat size. The massive 8-inch driver magnet guarantees optimal control during maximum cone excursion. The integrated 24 dB/Oct low-pass crossover filter with variable cutoff frequency (50÷150 Hz) allows you to perfectly adapt the DBA 201 F to your speaker system. The adjustable bass boost (0÷6 dB @ 45Hz) allows you to add bass output as you prefer, allowing correction for OEM sound equalization.

With the phase inverter (0-180°), it is possible to optimize phase alignment between the DBA 201 F and the speaker system, regardless of the subwoofer's position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from excessive excursion and amplifiers from overheating. Input sensitivity control is the perfect tool to maximize the overall system output level, avoiding clipping. The integrated audio detection circuit allows the DBA 201 F to turn on and automatically switch to standby mode. The audio detection function can be disabled when a remote turn-on cable is available.

DBA 201F Features

  • High performance in a super flat design
  • Class D internal amplifier with 440 watts peak
  • Compatible with any car audio system
  • Plug & Play connection
  • Complete set of controls to precisely adjust performance in your car
  • Automatic turn-on and standby mode
  • Remote control provided

Manuale Utente

n-20231002124503-manuale-dba-201f.pdf

Hertz DBA 201F Technical Specifications

  • Size mm (in.) 200 (8)
  • Continuous Power Rating - W 220
  • Peak Power Rating - W 440
  • Impedance Ohm 0.4
  • Sealed Super Flat design
  • Voice Coil Ø 38.6 (1.52) mm (in.)
  • Frequency Response Hz 32 ÷ 400
  • Magnet Dimensions D x d x h mm (in.) 110 x 45 x 17 (4.33 x 1.78 x 0.67)
  • Component Weight kg (lb.) 4.3 (9.48)
  • High Flux Density Ferrite Magnet
  • Pressed Paper Cone
  • Copper Voice Coil

Power Supply

  • Operating Voltage VDC (fuse) 6.5 ÷ 18 (15A)
  • Start and Stop Voltage VDC 6
  • Idle Current A (off) 260 m (1 m)
  • Consumption at 14.4 VDC Maximum Music Power A 8.5
  • Remote IN Turn-on VDC (current) 4 (1 mA)
  • PRE Input Signal Turn-on VRMS 10 mV
  • SPK Input CC Turn-on Vcc

Amplifier Stage

  • Distortion - THD at 100 Hz % 0.15
  • Bandwidth Hz 15 - 150
  • S/N Ratio dBA 100
  • Output Power (RMS) @ 14.4 VDC, 1% THD W 220

Input Signals / Filter

  • PRE Input Signal VRMS (impedance) 0.2 ÷ 5 (10kΩ)
  • SPK Input Signal VRMS (impedance) 1.2 ÷ 30 (6Ω)
  • LO-PASS Filter @ 24 dB Oct Hz adjustable 50 ÷ 150
  • Subsonic Filter @ 24 dB Oct Hz fixed 15
  • Phase Switcher 0 / 180
  • Bass Boost @ 45 Hz dB 0 ÷ 6
  • Remote Sub Volume Control dB 0 ÷ -15 (HRC 01 included)
