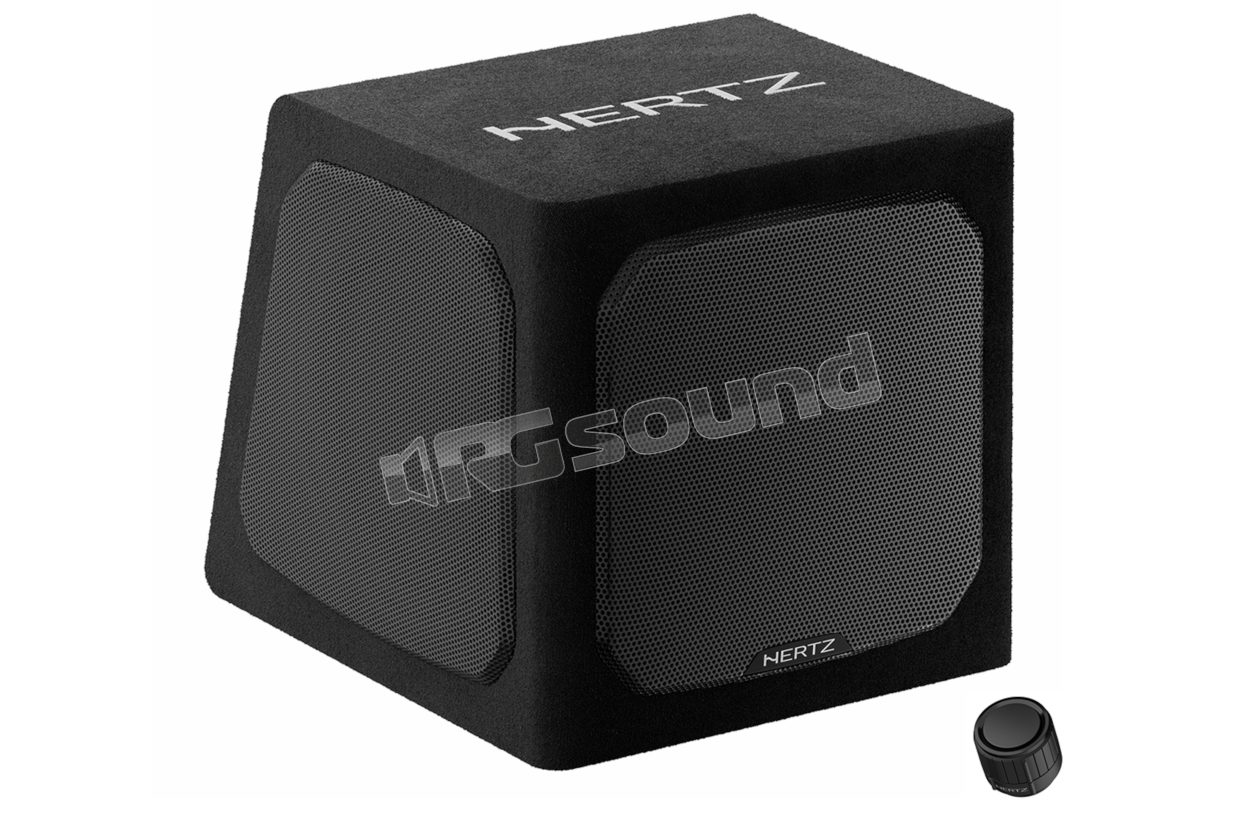

DBA 201 Dieci line active subwoofer in enclosure

Hertz
Your price:
€ 289,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
440 Watt
RMS Power
220 Watt
Frequency Response
15 - 150 Hertz
Sensitivity
100 dB
Weight
4,3 Kg
Enclosure Size
315 x 291 x 264 mm
Enclosure Type
Sealed Enclosure

Hertz DBA 201 Active Subwoofer in Dieci Line Enclosure

The dual passive radiator enclosure DBA 201, made of solid MDF and optimized with FEM simulation, guarantees superior performance, maximizing subwoofer output. The massive magnet of the 8 inch driver ensures optimal control during maximum cone excursion. A complete set of controls to precisely adjust performance in the car The integrated 24 dB/Oct low-pass crossover filter with variable cutoff frequency (50÷150 Hz) allows you to perfectly adapt the DBA 201 to your speaker system. The adjustable bass boost (0÷6 dB @ 45Hz) allows you to add bass output as you prefer, allowing correction for OEM sound equalization.

The phase inverter (0-180°) allows you to optimize phase alignment between the DBA 201 and the speaker system, regardless of the subwoofer position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from excessive excursion and amplifiers from overheating. Input sensitivity control is the perfect tool to maximize the overall system output level, avoiding clipping. The integrated audio detection circuit allows the DBA 201 to turn on and automatically switch to standby mode. Audio detection function can be disabled when a remote turn-on cable is available.

DBA 201 Features

  • High performance in a super flat design
  • Class D amplifier with 440 watts peak power
  • Compatible with any car audio system
  • Plug & Play connection
  • Complete set of controls to precisely adjust performance in the car
  • Automatic turn-on and standby mode
  • Remote control included

Manuale Utente

n-20231002124041-manuale-dba-201.pdf

Hertz DBA 201 Technical Specifications

  • Dimensions mm (in.) 200 (8)
  • Continuous power handling - W 220
  • Peak power handling - W 440
  • Impedance Ohm 0.4
  • Design Dual passive radiator enclosure
  • Voice coil Ø 38.6 (1.52) mm (in.)
  • Frequency response Hz 32 ÷ 400
  • Magnet dimensions D x d x h mm (in.) 115 x 47 x 25 (4.5 x 1.8 x 0.98)
  • Component weight kg (lb.) 6.7 (10.54)
  • Magnet High flux density ferrite
  • Cone Pressed paper
  • Voice coil Copper

Power Supply

  • Operating voltage VDC (fuse) 6.5 ÷ 18 (15A)
  • Start and stop voltage VDC 6
  • Idle current A (off) 260 m (1 m)
  • Consumption at 14.4 VCC Maximum music power A 8.5
  • Remote IN Turn-on VDC (current) 4 (1 mA)
  • PRE input signal Turn-on VRMS 10 mV
  • SPK input DC Turn-on VDC 2

Amplifier Stage

  • Distortion - THD at 100 Hz % 0.15
  • Bandwidth Hz 15 - 150
  • S/N ratio dBA 100
  • Output power (RMS) @ 14.4 VDC, 1% THD W 2

Input Signals / Filter

  • PRE input signal VRMS (impedance) 0.2 ÷ 5 (10kΩ)
  • SPK input signal VRMS (impedance) 1.2 ÷ 30 (6Ω)
  • LO-PASS filter @ 24 dB Oct Hz adjustable 50 ÷ 150
  • Subsonic filter @ 24 dB Oct Hz fixed 15
  • Phase switch 0 / 180
  • Bass boost @ 45 Hz dB 0 ÷ 6
  • Sub volume control remote dB 0 ÷ -15 (HRC 01 included)
