DB 8A

Helix

Discontinued

Your price:
€ 200,70
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
210 mm
MAX Power
150 Watt
RMS Power
60 Watt
Frequency Response
50-125 Hertz
Sensitivity
12 dB
Weight
3.6 Kg
Enclosure Size
85x265x250 mm
Enclosure Type
Sealed Enclosure

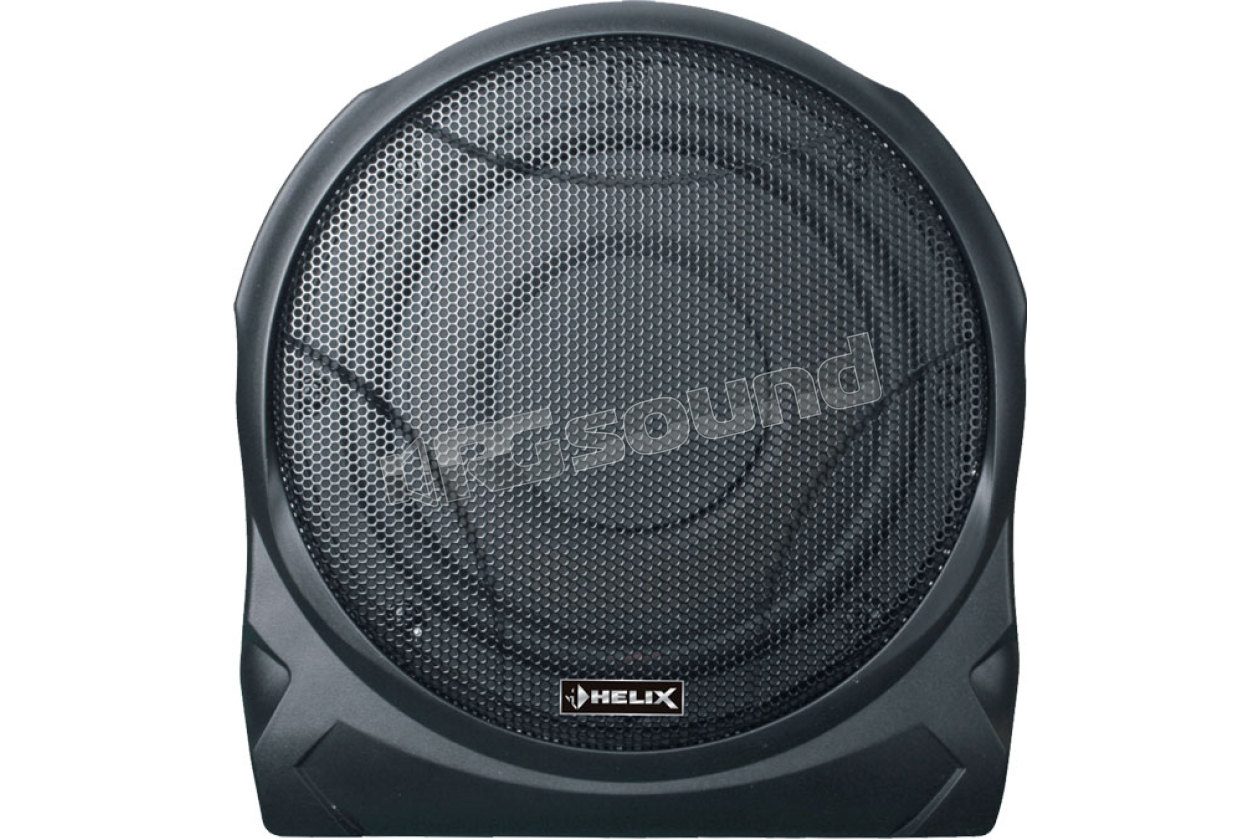

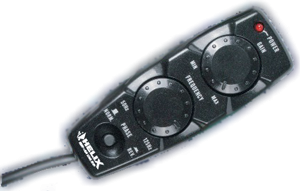

Compact active subwoofer housed in a die-cast aluminum enclosure with a 200 mm speaker. Multiple mounting brackets facilitate installation for both horizontal and vertical mounting. Remote control included for gain, frequency and phase adjustment.

Features:

RMS Power: 60 Watt
Max Power: 150 Watt
Woofer: 20 cm
Frequency response from 50 Hz to 125 Hz
Variable low-pass crossover from 50 to 120 Hz
Low-pass filter slope 12 dB/oct
Phase rotation switchable 0 or 180 degrees
Supply voltage: 14.4 Volts DC (10.8 - 15.6 V)
Dimensions in mm: 85 x 265 x 250 mm
Weight: 3.65 kg

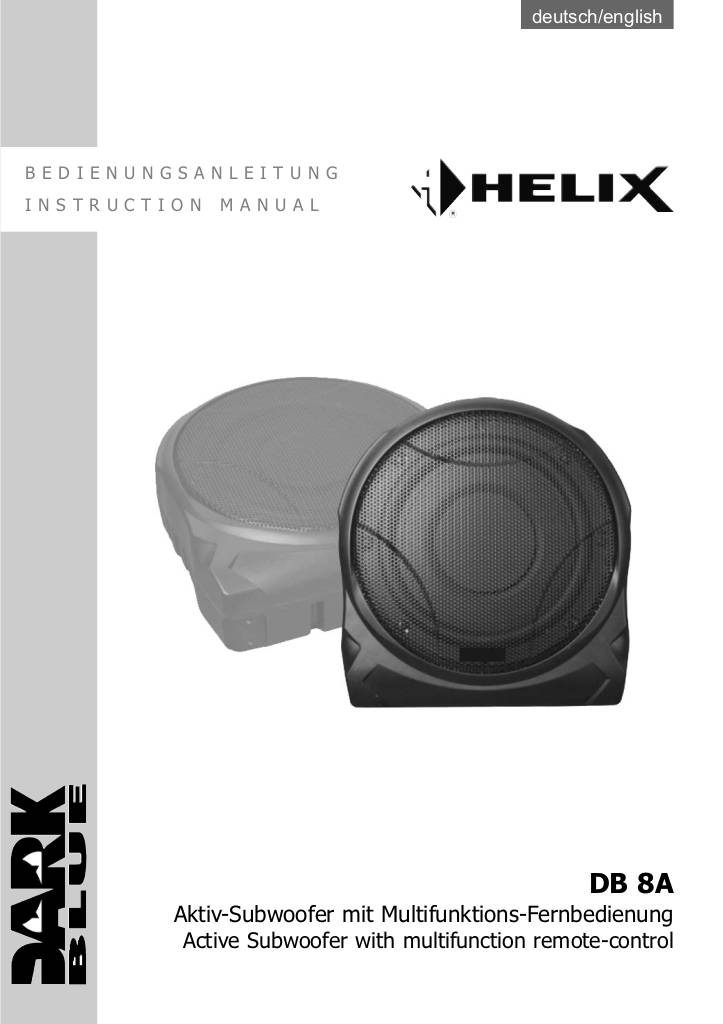

Manuale

20130124145547-im-helix-db8a.pdf
