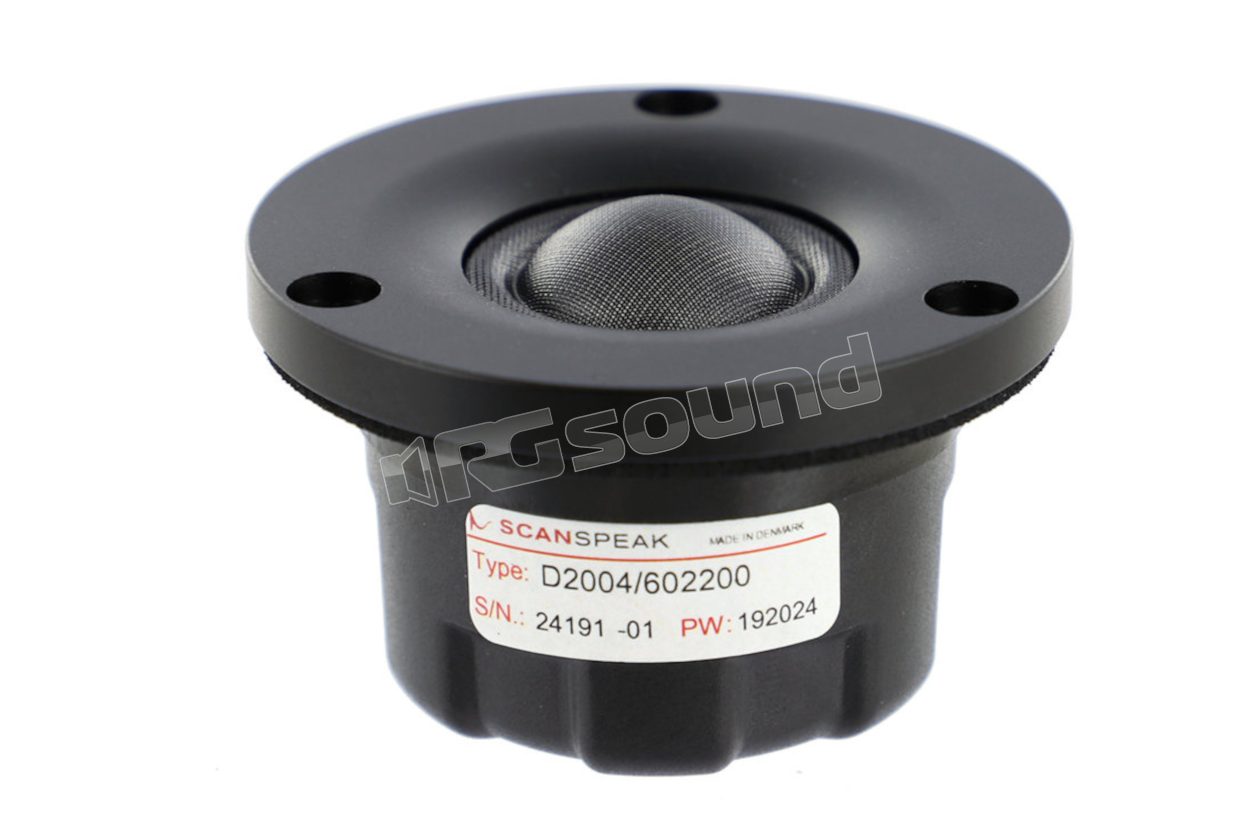

D2004/602200 20 mm 4ohm dome tweeter, neo magnet

Scan Speak
Your price:
€ 259,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
20 mm
MAX Power
120 Watt
RMS Power
50 Watt
Frequency Response
3000 - 40000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Outer Diameter
55 mm
Installation Depth
27,6 mm
Tweeter Material
Cupola in seta

Scan Speak D2004/602200 20 mm Dome Tweeter 4 ohm, Neo-magnet

The compact dimensions are one of the key elements of these Illuminator tweeters, which offer a high degree of flexibility in design options.

The reduced dimensions are used without compromising sound quality: these compact tweeters are entirely comparable to the renowned full size Illuminator and Revelator tweeters, regardless of whether music is played at high or low listening levels.

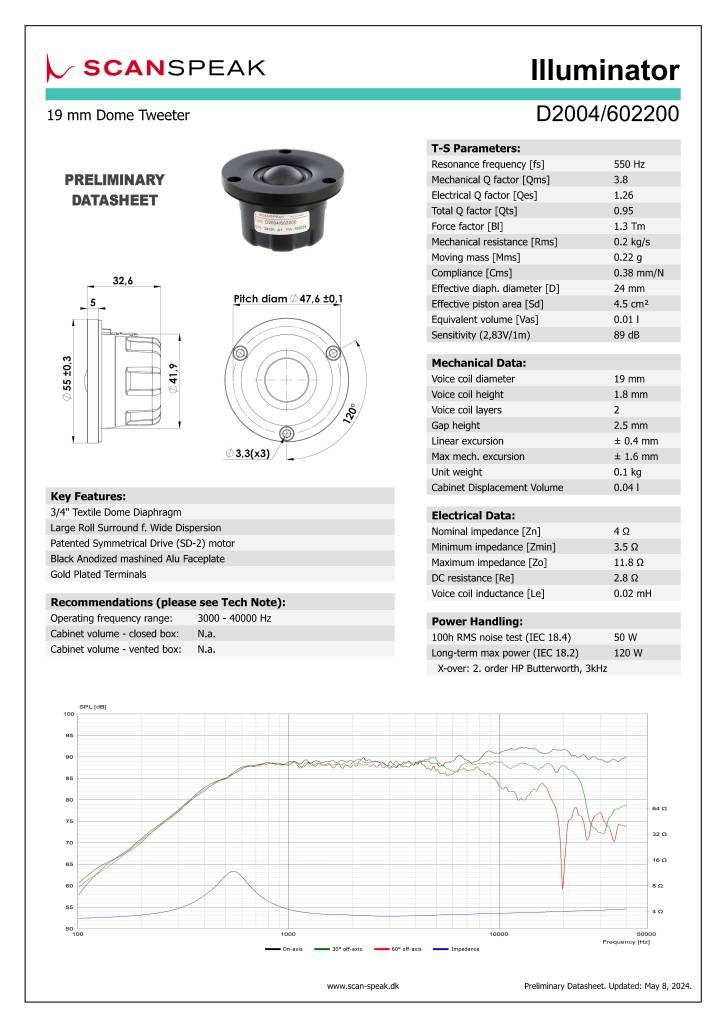

Scheda Tecnica

n-20240701172251-d2004-602200.pdf

Scan Speak D2004/602200 Technical Specifications

  • Resonance frequency [fs] 550 Hz
  • Mechanical Q factor [Qms] 3.8
  • Electrical Q factor [Qes] 1.26
  • Total Q factor [Qts] 0.95
  • Force factor [BI] 1.3 Tm
  • Mechanical resistance [Rms] 0.2 kg/s
  • Moving mass [Mms] 0.22 g
  • Compliance [Cms] 0.38 mm/N
  • Effective diaphragm diameter [P] 24 mm
  • Effective piston area [Sd] 4.5 cm2
  • Equivalent volume [Vas] 0.01 l
  • Sensitivity (2.83V/1m) 89 dB

Mechanical Data

  • Voice coil diameter 19 mm
  • Voice coil height 1.8 mm
  • Voice coil layers 2
  • Gap height 2.5 mm
  • Linear excursion ± 0.4 mm
  • Maximum mechanical excursion ± 1.6 mm
  • Unit weight 0.1 kg
  • Cabinet displacement volume 0.04 l

Electrical Data:

  • Nominal impedance [2n] 4 Ω
  • Minimum impedance [min] 3.5 Ω
  • Maximum impedance [Zo] 11.8 Ω
  • DC resistance [Re] 2.8 Ω
  • Voice coil inductance [Le] 0.02 mH

Power Handling

  • RMS noise test 100h (IEC 18.4) 50 W
  • Long-term maximum power (IEC 18.2) 120 W
  • X-over: 2nd order Butterworth HP, 3kHz
€ 259,00 Price incl. VAT
