CZ180 Cz Series

Ciare

Discontinued

Your price:
€ 30,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
5x7''
Coaxial Type
2-way
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Acciaio
Tweeter Material
Neodimio

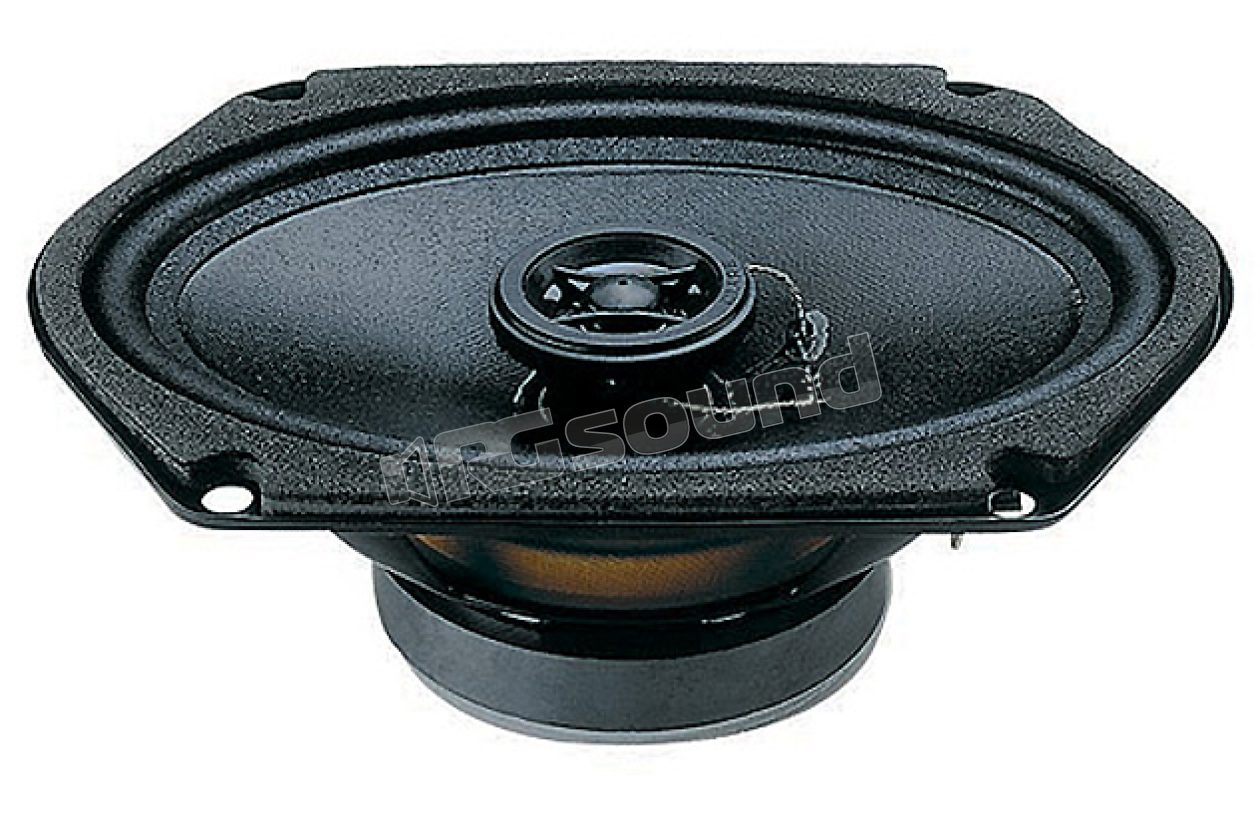

Ciare CZ180 two-way coaxial 130x180mm (5"x7") Cz Series with damped cellulose woofer membrane, neodymium tweeter. Coaxial with excellent quality-to-price ratio, great linearity of frequency response and reliability at the price. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allowing the company to achieve the highest quality standards in the creation of every component.

CZ180 Features

  • Max power: 100W
  • Nominal power: 50W
  • Nominal impedance: 4Ω
  • Diameter: 130x180mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB

CZ180 Materials

  • Basket type: Steel
  • Suspension type: Polyurethane
  • Former type: Aluminum
  • Air gap height: 4 mm

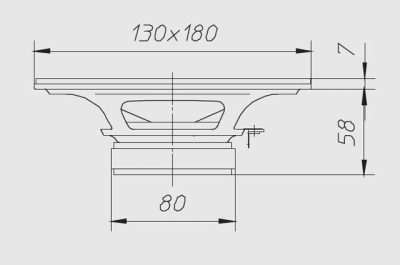

CZ180 Dimensions

  • External diameter: 130 x 180 mm
  • Depth under flange: 58 mm
  • Flange thickness: 7 mm
  • Panel hole: 160x110 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 6.5 mm
  • Mounting hole position distance: 11x11 cm
  • Weight with individual packaging: 0.72 Kg

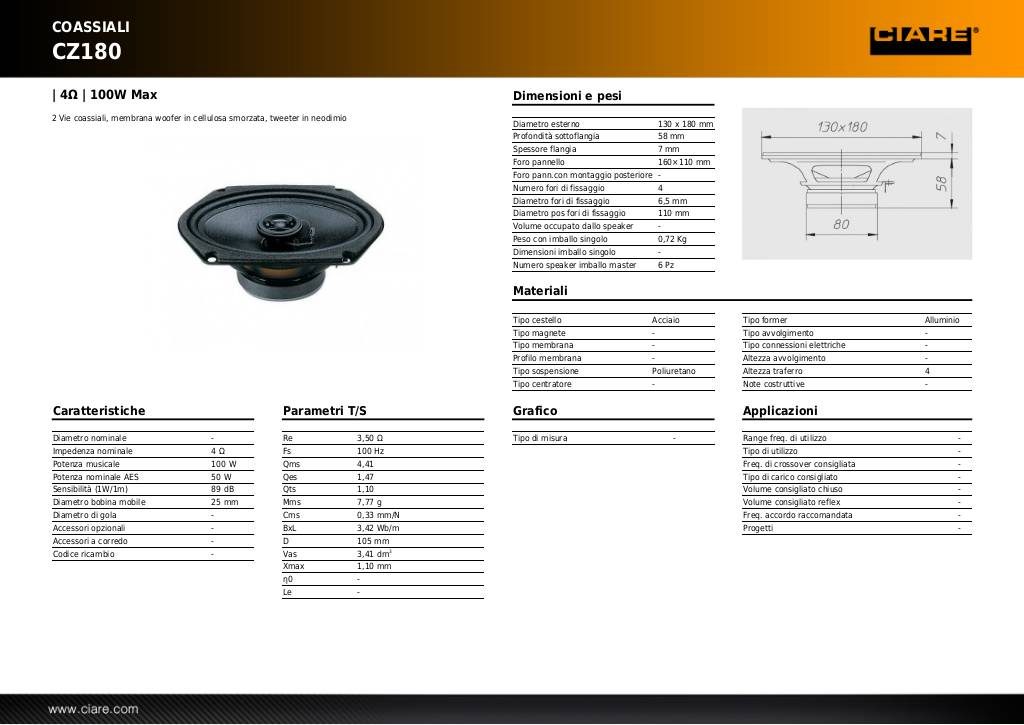

Scheda tecnica

20131031102128-cz180.pdf

1 Ciare CZ180 coaxial speaker
Discontinued
