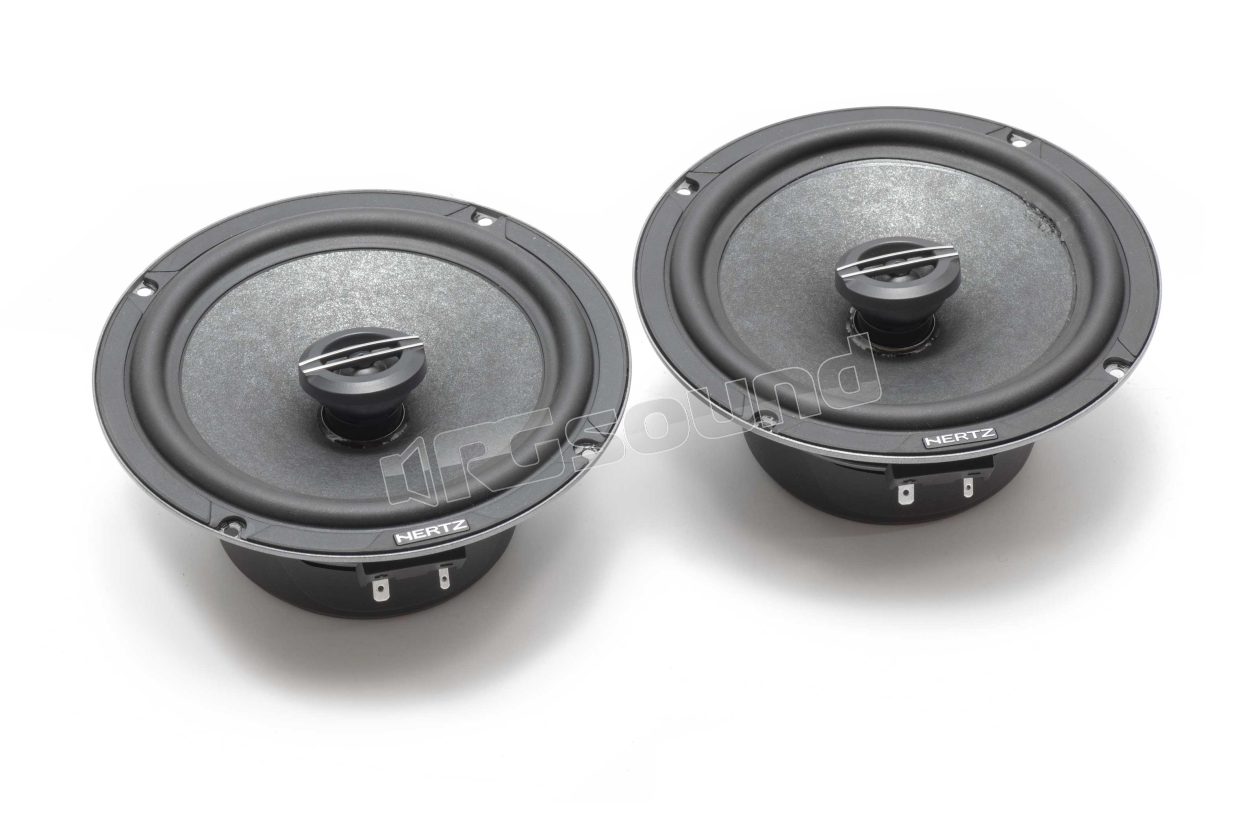

CX 165 con difetto estetico 165mm 2-way coaxial speakers with cosmetic defect on the surround

Hertz

Discontinued

Your price:
€ 65,90
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
55 - 22.000 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Impedance
4 Ohm
Woofer Material
Cellulosa semi pressata
Tweeter Material
Tetolon

Hertz CX 165 pair of 165mm 2-way coaxial speakers with aesthetic defect on the suspension

Hertz CX 165 strengths

Soft dome tweeter in Tetolon® 24 mm (0.9 in.) with ferrofluid cooled voice coil, for extended and natural high frequencies.
RHFC™ tweeter (Rotary High Frequency Contour) angled and adjustable toward the listener for perfect frequency response in any installation scenario.
Tweeter faceplate with optimized geometry using FEM simulations (Finite Element Modeling), to provide extremely linear off-axis frequency response.
Woofer voice coil 25 mm (1 in.) diameter with aluminum former to ensure high excursion and power handling.
Semi-pressed SPP-M paper cone (Semi Pressed Paper-Mica) 165 mm (6.5 in.) enriched with Mica powder for excellent balance between lightness and damping.
High flux density ferrite magnet combined with low carbon steel poles, for lower distortion at high power levels.
Compact three-spoke basket acoustically transparent combined with rubber magnet cover for complete damping of spurious vibrations.
Elegant optional grille with high-strength ABS plastic structure and metallic finish combined with protective metal mesh.

Hertz CX 165 technical specifications

Two-way coaxial component
Woofer dimensions mm (inches) 165 (6.5)
Tweeter diaphragm mm (inches) 24 (0.9)

Voice coil diameter Ø:
Woofer mm (inches) 25 (1)
Tweeter mm (inches) 13 (0.5)

Power handling
W peak 210
W continuous 70
Impedance Ω 4

Frequency response Hz 55 ÷ 22k
Woofer magnet dimensions: W x W x H 85 x 32 x 15 mm (3.35 " x 1.26" x 0.59 ")
Tweeter magnet dimensions D x h 13 x 2 mm (0.51 " x 0.08")
Weight per speaker kg (lb.) 0.95 (2.09)
Woofer magnet High flux density ferrite
Tweeter magnet Neodymium
Cone Semi-pressed paper + Mica
Dome Tetolon

Discontinued
