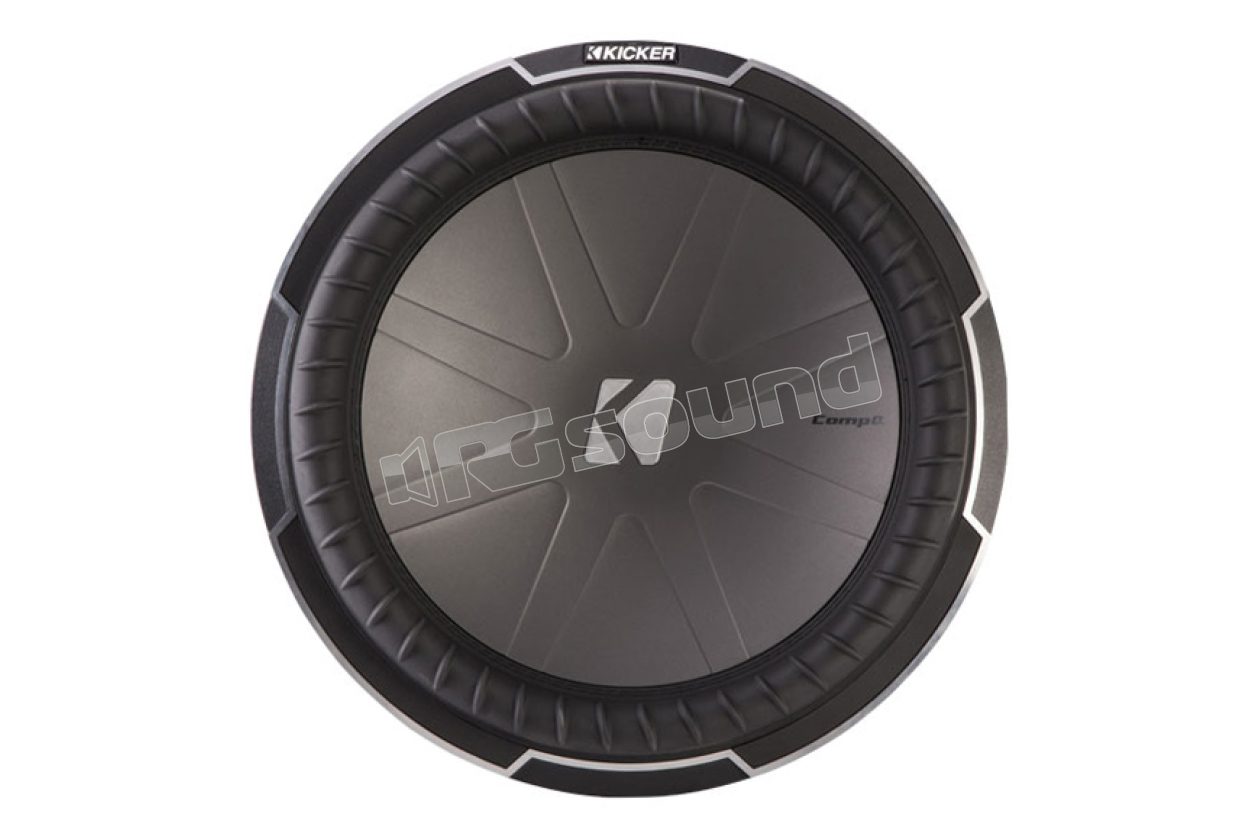

CWQ154 sub 38cm 4Ohm CompQ

Kicker

Discontinued

Your price:
€ 599,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2200 Watt
RMS Power
1100 Watt
Frequency Response
18 - 100 Hertz
Sensitivity
88.6 dB
Impedance
4 Ohm
Installation Depth
226 mm

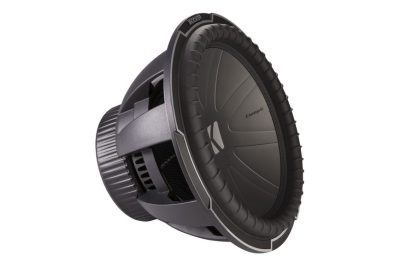

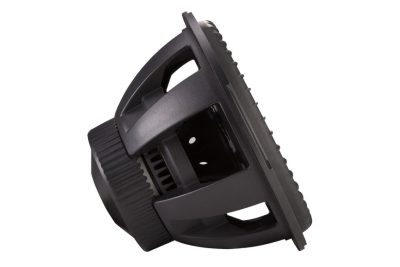

Kicker CWQ154 subwoofer CompQ line 38 cm 4 Ohm with extraordinary power handling, high-level stability and robustness, and extreme RMS power.

CompQ Series great power and extremely accurate bass reproduction.

The reinforced spider and cone of the CWQ154 ensure perfectly linear movement, adding greater stability to the sub to achieve unparalleled sound precision and extraordinary power volume.

A ceramic magnet and computer-optimized coil provide exceptional power handling, while the shape and components of the CompQ subs have been designed to maintain low temperatures, even in the presence of extreme power loads.



CompQ CWQ154 Technical Specifications

Impedance 4 Ohm

Sensitivity 88.6 dB

Nominal Power 1,100 W

Frequency Response 18 - 100 Hz

Qts 0.472

Qms 9.672

Qes 0.496

Vas 70.747 L

Mounting Depth 226 mm

Mounting Hole 352 mm

CWQ154 Specifications in Sealed Enclosure

Minimum Recommended Volume 42.5 L

Recommended Volume 169.9 L

Nominal Power 1,100 W

CWQ154 Specifications in Compact Ported Enclosure

Recommended Volume 85 L

Port Opening 6.4 x 41 cm (2.5x16.25")

Port Length 50 cm (19.5")

Nominal Power 1,100 W

CWQ154 Specifications in SQ (Sound Quality) Ported Enclosure

Recommended Volume 170 L

Port Opening 8.9 x 41 cm (3.5x16.25")

Port Length 35 cm (13.75")

Nominal Power 1,100 W

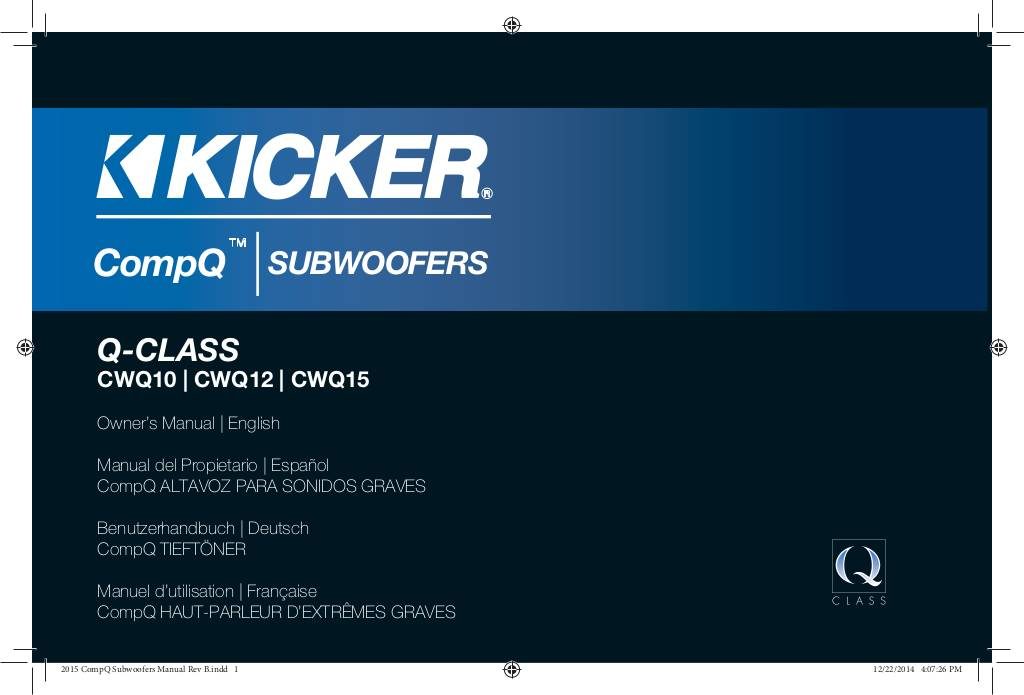

Manuale utente

20160308153033-compq-revb.pdf
Discontinued
