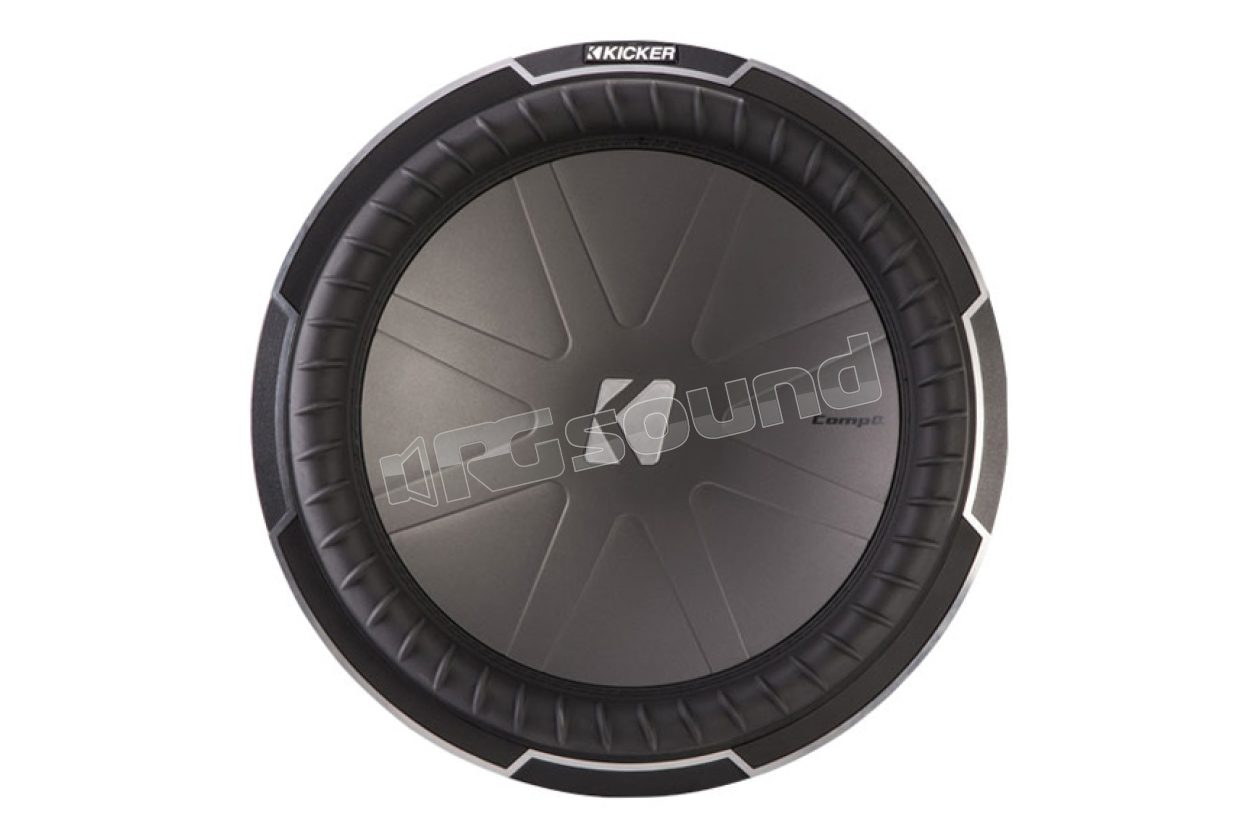

CWQ124 30cm 4Ohm CompQ sub

Kicker

Discontinued

Your price:
€ 499,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1700 Watt
RMS Power
850 Watt
Frequency Response
20-100 Hertz
Sensitivity
86.2 dB
Impedance
4 Ohm
Installation Depth
181 mm

Kicker CWQ124 CompQ line 30 cm subwoofer 4 Ohm with extraordinary power handling, high level stability and robustness, and extreme RMS power.

CompQ Series great power and extremely accurate bass reproduction.

The spider and reinforced cone of the CWQ124 ensure perfectly linear motion, adding greater stability to the sub to achieve unparalleled sound precision and extraordinary power output.

A ceramic magnet and computer-optimized voice coil provide exceptional power handling, while the shape and components of the CompQ subs were designed to maintain low temperatures, even in the presence of extreme power loads.



CompQ CWQ124 Technical Specifications

Impedance 4 Ohm

Sensitivity 86.2 dB

Rated Power 850 W

Frequency Response 20 - 100 Hz

Qts 0.546

Qms 8.878

Qes 0.582

Vas 26 L

Mounting Depth 181 mm

Mounting Hole 281 mm

CWQ124 Specifications in Sealed Enclosure

Minimum Recommended Volume 24.92 L

Recommended Volume 56.64 L

Rated Power 850 W

CWQ124 Specifications in Compact Ported Enclosure

Recommended Volume 49.6 L

Port Opening 6.4 x 34 cm (2.5x13.25")

Port Length 57 cm (22.5")

Rated Power 850 W

CWQ124 Specifications in SQ (sound quality) Ported Enclosure

Recommended Volume 92 L

Port Opening 7.6 x 34 cm (3x13.25")

Port Length 37 cm (14.5")

Rated Power 850 W

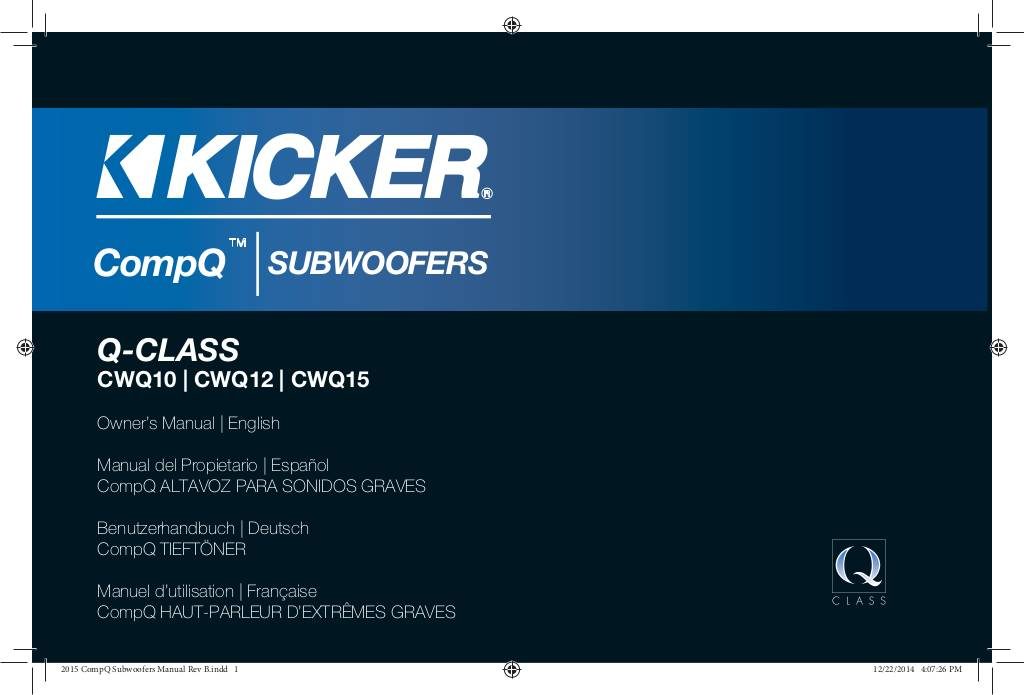

Manuale utente

20160308160818-compq-revb.pdf
