CWQ122 30cm 2Ohm CompQ sub

Kicker

Discontinued

Your price:
€ 499,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1700 Watt
RMS Power
850 Watt
Frequency Response
20-100 Hertz
Sensitivity
86.2 dB
Impedance
2 Ohm
Installation Depth
181 mm

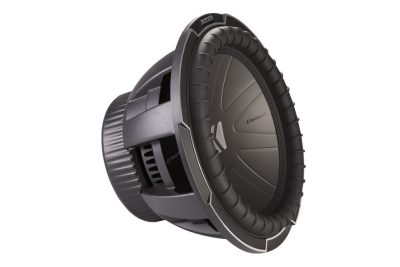

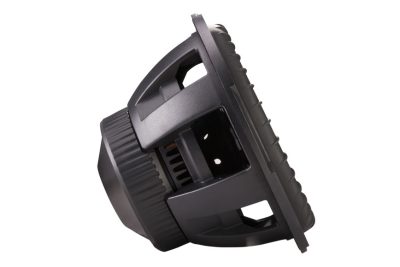

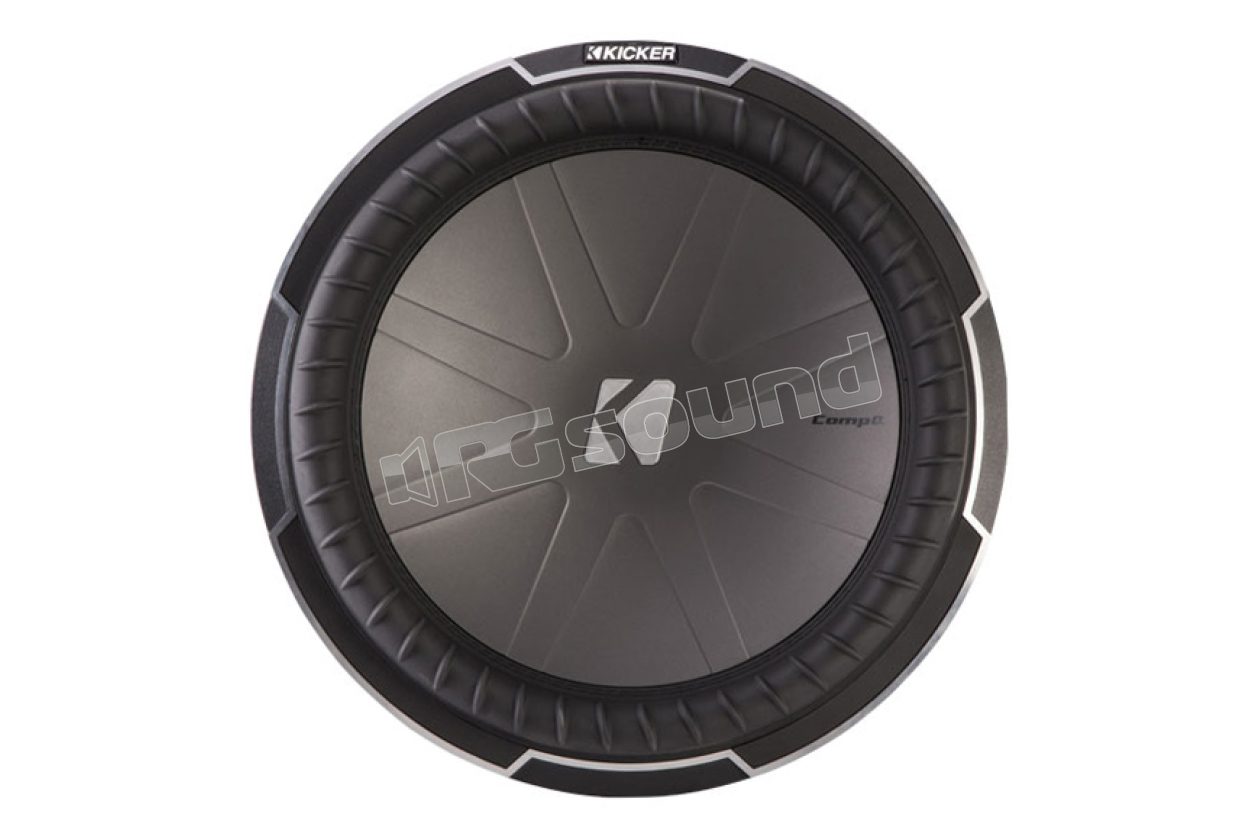

Kicker CWQ122 subwoofer CompQ line 30 cm 2 Ohm with extraordinary power handling, high-level stability and robustness, and extreme RMS power.

CompQ Series high power and extremely accurate bass reproduction.

The spider and reinforced cone of the CWQ122 ensure perfectly linear movement, adding greater stability to the sub to achieve unparalleled sound precision and extraordinary power volume.

A ceramic magnet and computer-optimized coil provide exceptional power handling, while the shape and components of the CompQ subs have been designed to maintain low temperatures, even under extreme power loads.



CompQ CWQ122 Technical Specifications

Impedance 2 Ohm

Sensitivity 86.2 dB

Rated Power 850 W

Frequency Response 20 - 100 Hz

Qts 0.546

Qms 8.878

Qes 0.582

Vas 26 L

Mounting Depth 181 mm

Mounting Hole 281 mm

CWQ122 Specifications in Sealed Enclosure

Minimum Recommended Volume 24.92 L

Recommended Volume 56.64 L

Rated Power 850 W

CWQ122 Specifications in Compact Ported Enclosure

Recommended Volume 49.6 L

Port Opening 6.4 x 34 cm (2.5x13.25")

Port Length 57 cm (22.5")

Rated Power 850 W

CWQ122 Specifications in SQ (Sound Quality) Ported Enclosure

Recommended Volume 92 L

Port Opening 7.6 x 34 cm (3x13.25")

Port Length 37 cm (14.5")

Rated Power 850 W

Scheda tecnica

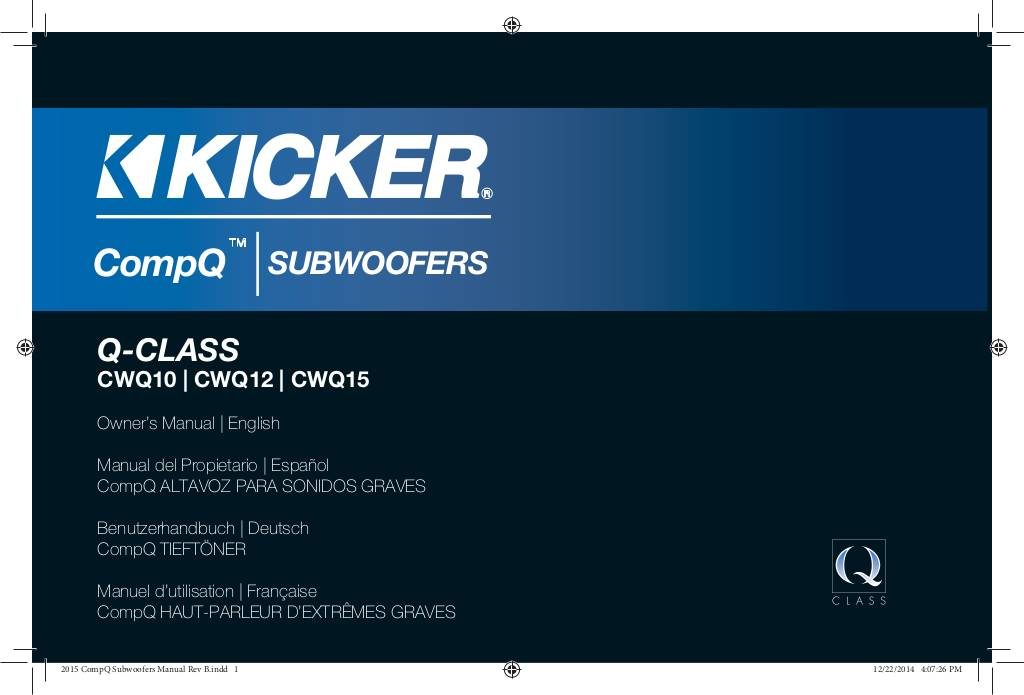

20160308154149-compq-revb.pdf
