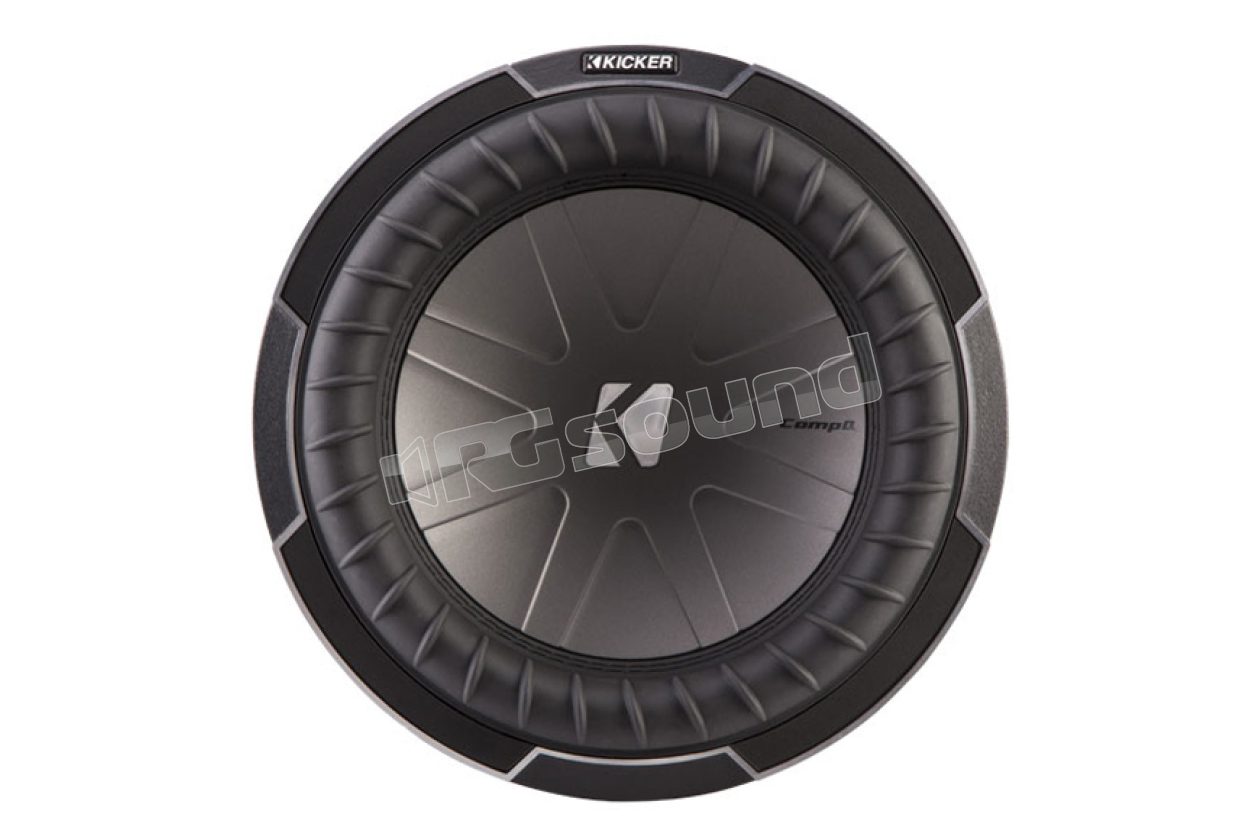

CWQ102 25cm 2Ohm CompQ sub

Kicker

Discontinued

Your price:
€ 399,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
24-100 Hertz
Sensitivity
85.7 dB
Impedance
2 Ohm
Installation Depth
162 mm

Kicker CWQ102 CompQ line 25 cm subwoofer 2 Ohm with extraordinary power handling, high-level stability and robustness, and extreme RMS power.

CompQ Series high power and extremely accurate bass reproduction.

The reinforced spider and cone of the CWQ102 ensure perfectly linear movement, adding greater stability to the sub to achieve unparalleled sound precision and extraordinary power volume.

A ceramic magnet and computer-optimized voice coil provide exceptional power handling, while the shape and components of CompQ subs have been designed to maintain low temperatures, even in the presence of extreme power loads.



CompQ CWQ102 Technical Specifications

Impedance 2 Ohm

Sensitivity 85.7 dB

Rated Power 700 W

Frequency Response 24 - 100 Hz

Qts 0.437

Qms 8.916

Qes 0.46

Vas 16.75 L

Mounting Depth 162 mm

Mounting Hole 234 mm

CWQ102 Specifications in Sealed Box

Minimum Recommended Volume 18.7 L

Recommended Volume 35.4 L

Rated Power 700 W

CWQ102 Specifications in Compact Ported Box

Recommended Volume 35.4 L

Port Entrance 6.4 x 29 cm (2.5x11.25")

Port Length 50 cm (19.75")

Rated Power 7000 W

CWQ102 Specifications in SQ (Sound Quality) Ported Box

Recommended Volume 63.7 L

Port Entrance 7.6 x 29 cm (3x11")

Port Length 46 cm (18")

Rated Power 700 W

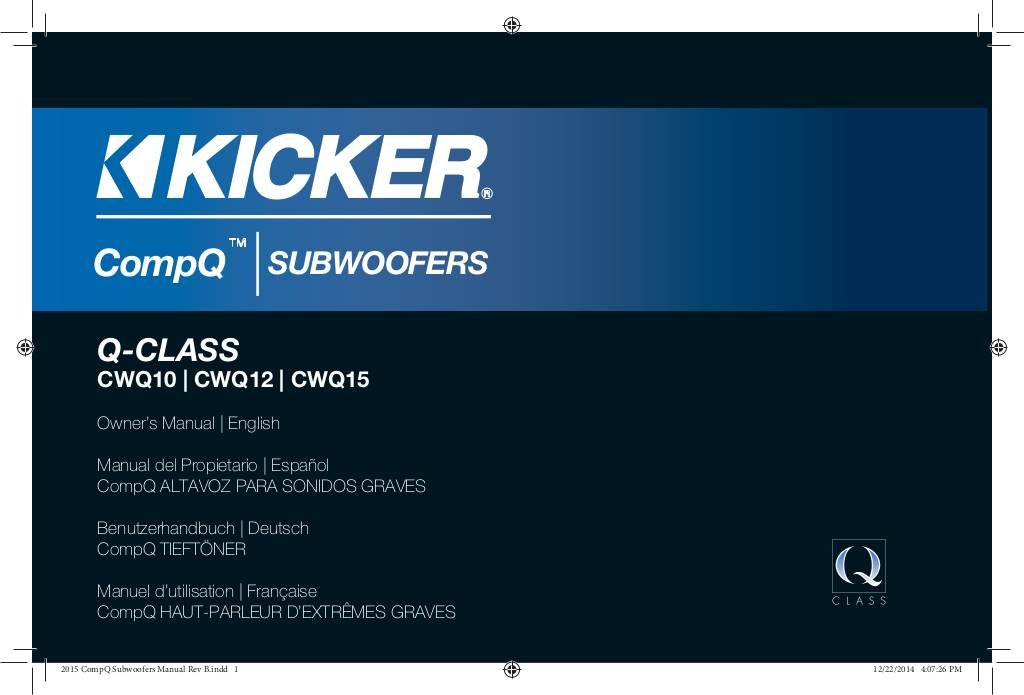

Manuale utente

20160308162107-compq-revb.pdf
