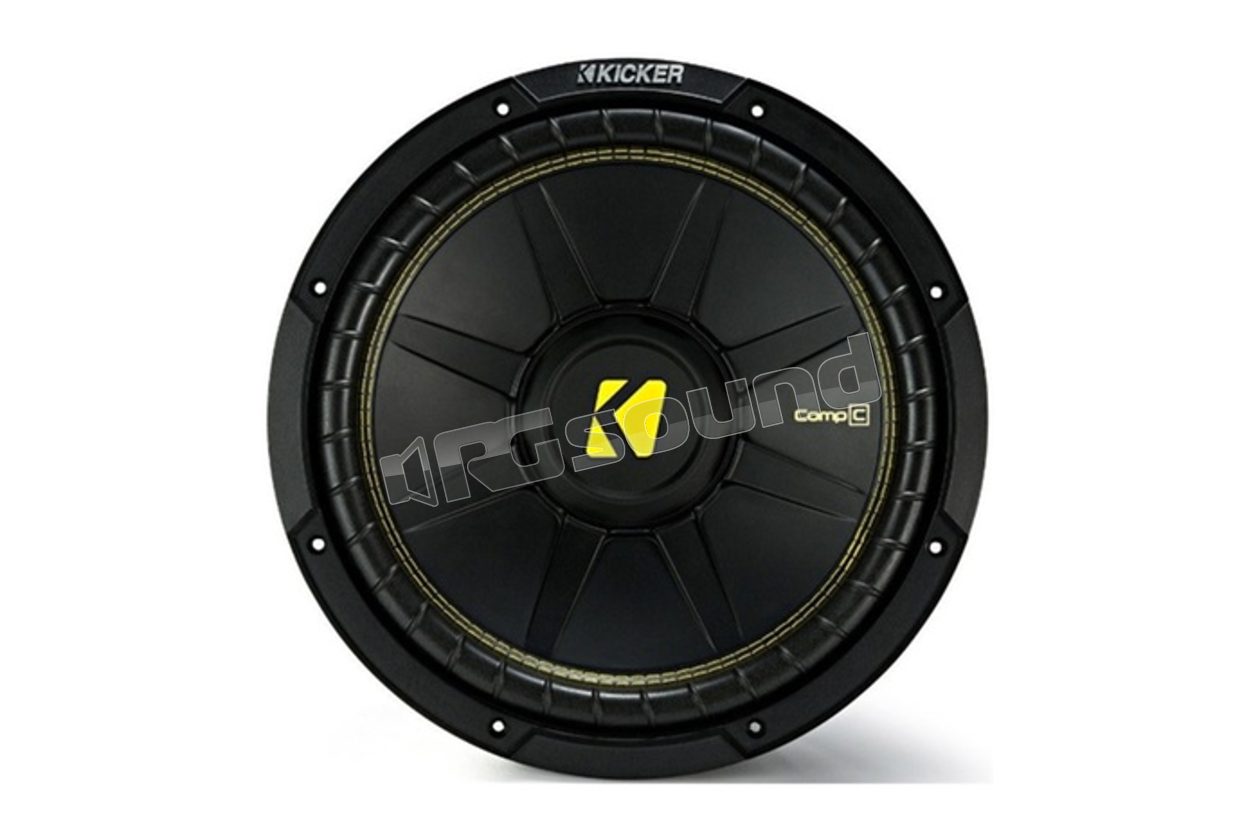

CWCD84 8" 20 cm CompC subwoofer

Kicker

Discontinued

Your price:
€ 99,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
30-500000 Hertz
Sensitivity
85.6 dB
Impedance
4 Ohm
Installation Depth
98 mm
Woofer Material
polipropilene

The 8" 20 cm CompC CWCD84 subwoofers with dual voice coil simplify wiring with a pair of spring terminals, for easy optimization of an amplifier from the CX series. Great power and big bass are easy to achieve.

Features:

Dual four ohm voice coil
Injection molded polypropylene cone
Perimeter vent for thermal management
Ribbed polyurethane surround
Yellow stitching
Teal high-resistance spiral coils
Stamped steel basket
High temperature voice coil
Spring loaded speaker terminals

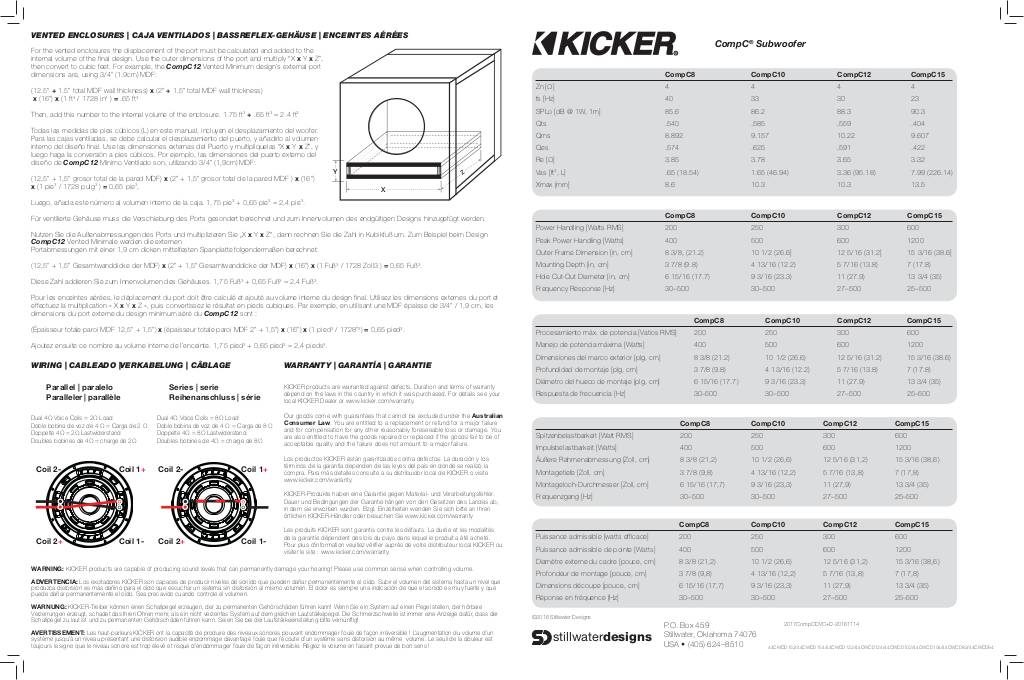

Manuale di istruzioni

n-20181122150655-2017-compc-dvc-rev-d.pdf

Size (IN.,CM)

8, 20

Impedance (OHMS)

4 DVC

Max Rec Amplifier Power (WATTS PEAK/RMS)*

400/200

Sensitivity (dB 1w/1m)

85.6

Mounting Depth (in, cm)

3-7/8, 9.8

Mounting Diameter (in, cm)

7, 17.7

Min Sealed Box Vol (cu. ft, L)

0.5, 14.2

Max Sealed Box Vol (cu. ft, L)

1.2, 34

Min Vented Box Vol (cu. ft, L)

0.66, 18.7

Max Vented Box Vol (cu. ft, L)

1.2, 34

Discontinued
