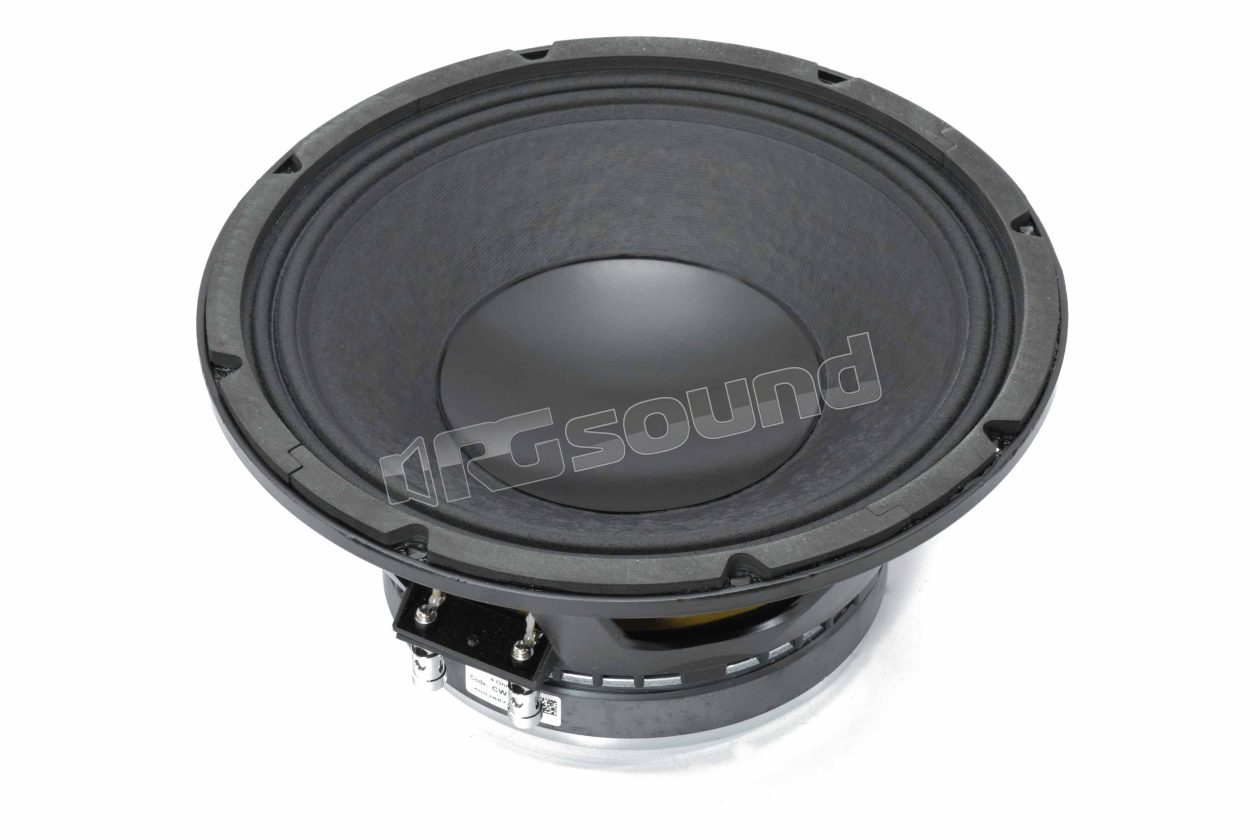

CW337 32cm woofer with NOMEX cloth suspensions, 400 W RMS power

Ciare

Discontinued

Your price:
€ 178,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
45 - 2.000 Hertz
Sensitivity
96 dB
Impedance
4 Ohm
Weight
8,2 Kg
Installation Depth
133 mm
Woofer Material
Kapton

Ciare CW337 woofer 320mm with cellulose membrane, NOMEX fabric suspensions, 400 W RMS power

Ciare CW337 is a mid-bass woofer speaker with a nominal diameter of 320 mm (12″), and was designed as a 4 Ω component for the Professional segment. Its construction features an aluminum die-cast basket with a ferrite magnetic assembly 190 mm in diameter. This woofer can be installed in an enclosure of approximately 20 liters, tuned as a bass reflex around 70 Hz. In fact, the CW337 is an excellent component for use in multi-way professional systems, paired with midrange and/or compression drivers.

CW337 Features

  • Max power: 800W
  • Nominal power: 400W
  • Nominal impedance: 4Ω
  • Diameter: 320mm
  • Voice coil diameter: 75mm
  • Sensitivity 1W/1m: 96 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 20 dm3
  • Recommended tuning frequency: 72 Hz

CW337 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Kapton
  • Air gap height: 10 mm

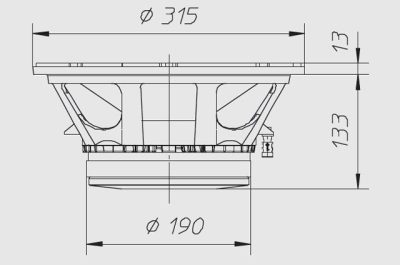

CW337 Dimensions

  • Outer diameter: 315 mm
  • Depth below flange: 133 mm
  • Flange thickness: 13 mm
  • Panel hole: 282 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 7 mm
  • Mounting hole position diameter: 295
  • Weight with single packaging: 8.20 Kg

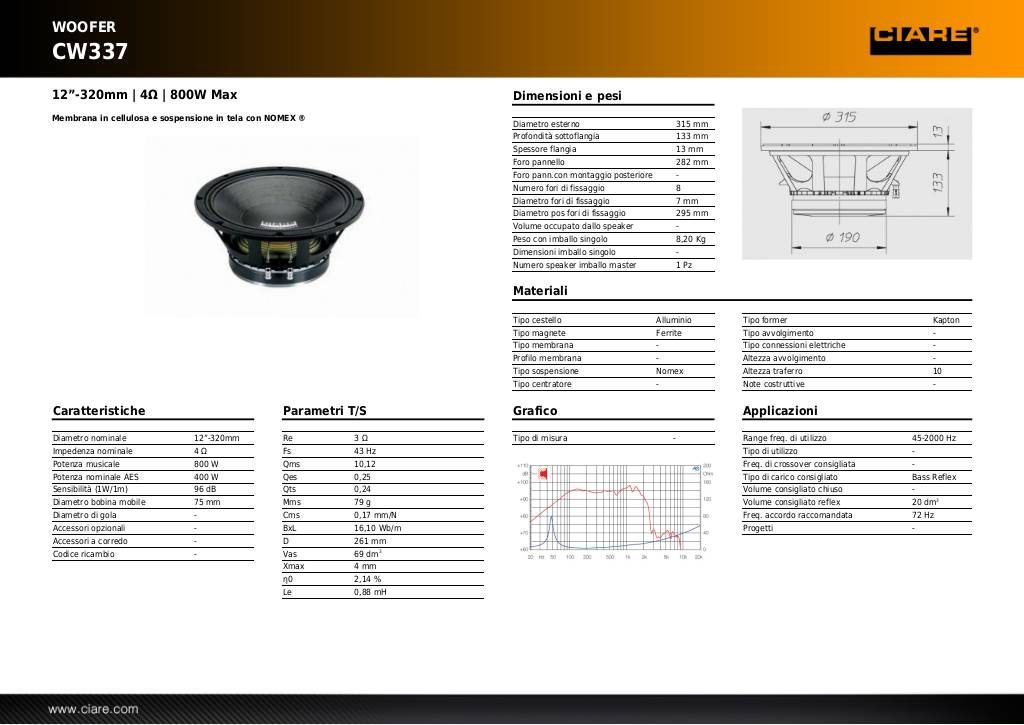

Scheda tecnica

20131030154846-cw337.pdf

1 Ciare CW337 woofer speaker
Discontinued
