CW258ND

Ciare

Discontinued

Your price:
€ 307,10
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt

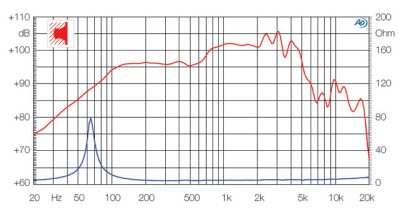

Frequency Response
60 - 5.000 Hertz
Sensitivity
94.5 dB
Impedance
4 Ohm
Weight
4,6 Kg
Installation Depth
119 mm
Woofer Material
Fibra di vetro

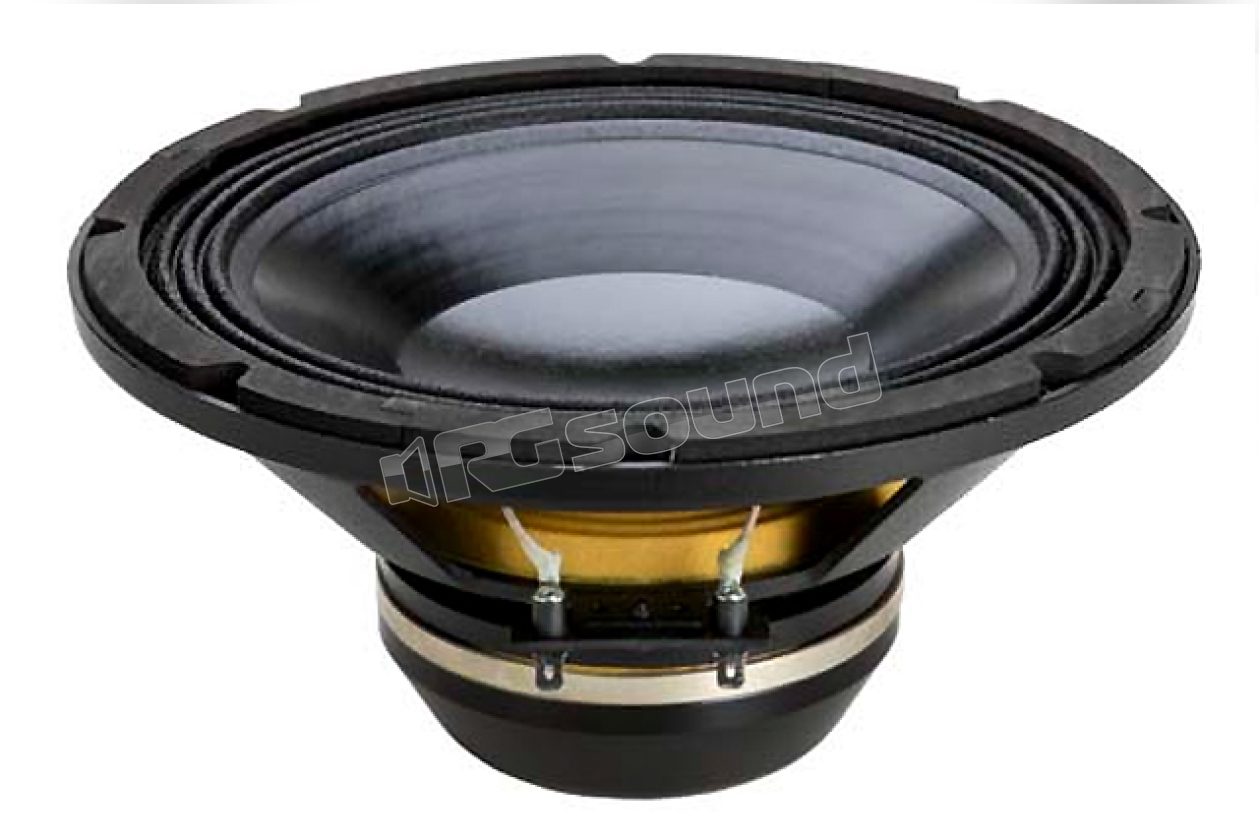

Ciare CW258ND 250mm woofer with treated cellulose cone, NOMEX ® cloth surround, fiberglass coil with aluminum wire, neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CW258ND Features

  • Max power: 600W
  • Nominal power: 300W
  • Nominal impedance: 4Ω
  • Diameter: 250mm
  • Voice coil diameter: 75mm
  • Sensitivity 1W/1m: 94.5 dB
  • Recommended enclosure type: Sealed box
  • Recommended reflex volume: 55 dm3

CW258ND Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Cone type: Treated cellulose fiber
  • Surround type: Rubber
  • Former type: Aluminum
  • Electrical connection type: Faston
  • Air gap height: 6 mm

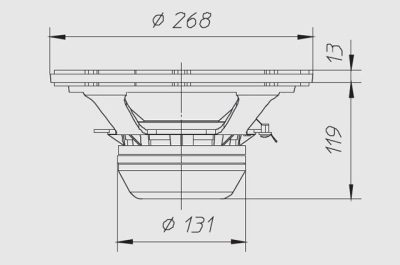

CW258ND Dimensions

  • External diameter: 268 mm
  • Depth below flange: 119 mm
  • Flange thickness: 13 mm
  • Panel hole: 235 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 253
  • Weight with single packaging: 4.60 Kg

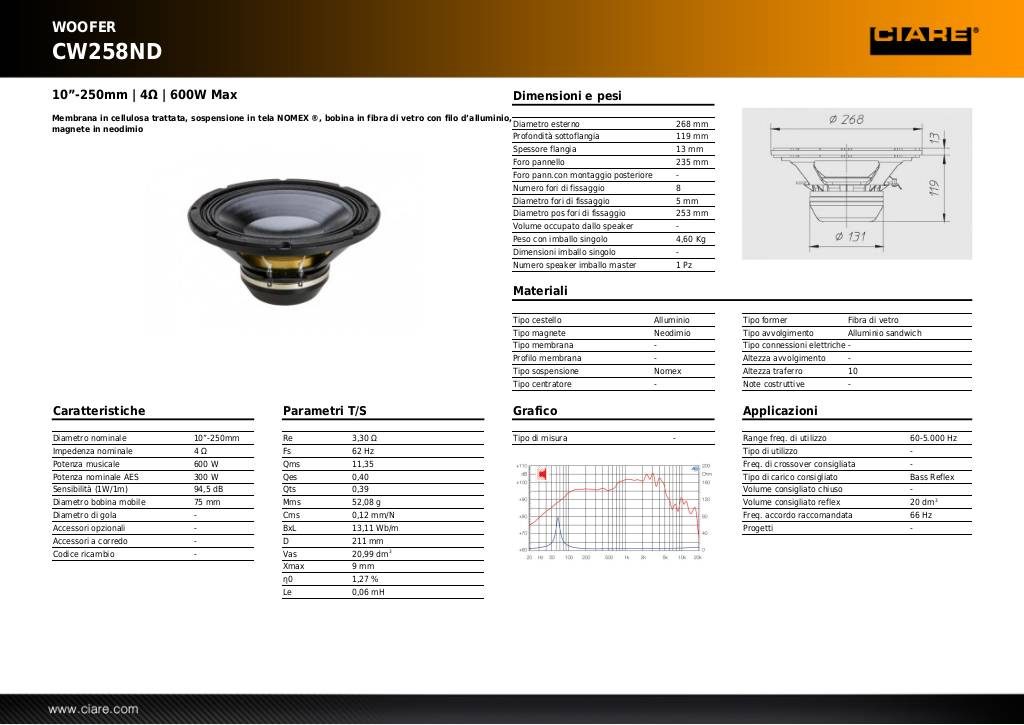

Scheda tecnica

20131030152842-cw258nd.pdf

1 Ciare woofer speaker CW258ND
Discontinued
