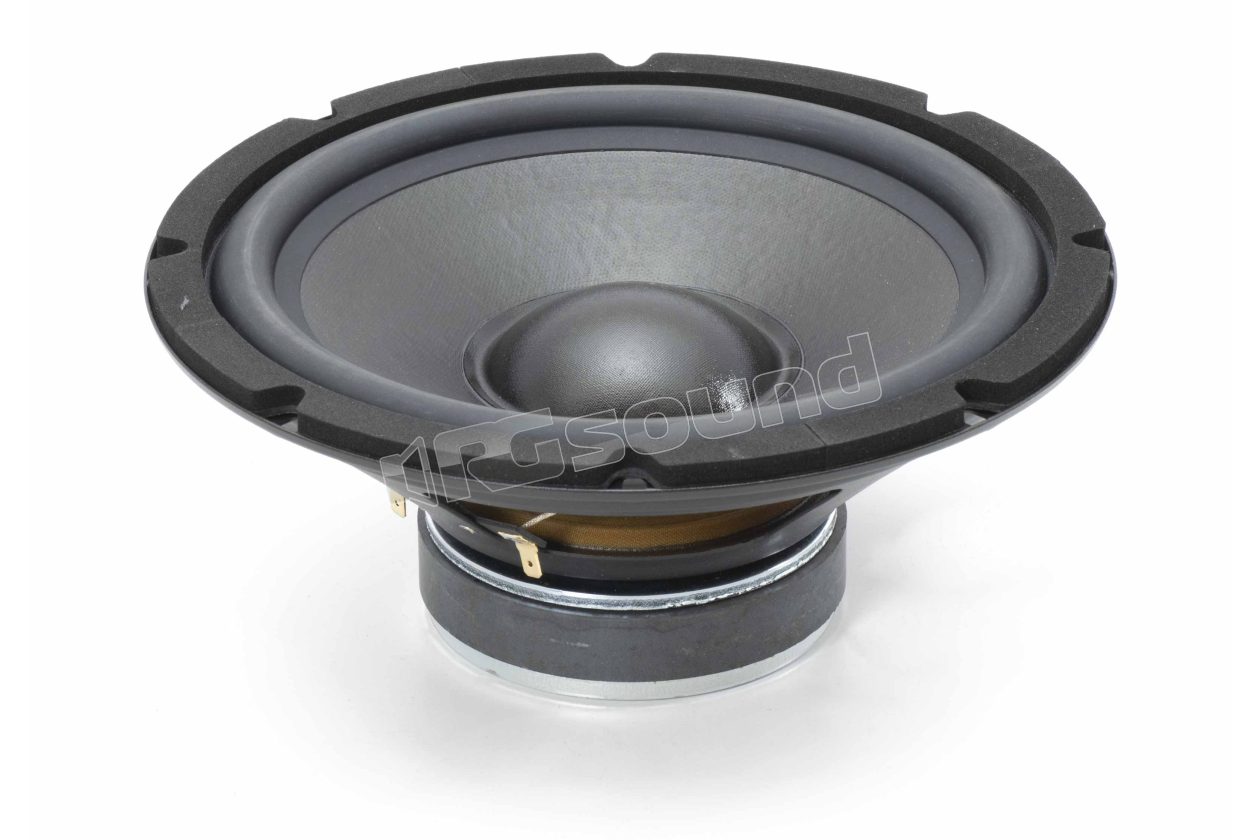

CW256Z 250mm woofer, 90W RMS / 180W max power

Ciare

Discontinued

Your price:
€ 91,10
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
180 Watt
RMS Power
90 Watt
Frequency Response
20 - 3.000 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Weight
2,6 Kg
Installation Depth
102,5 mm
Woofer Material
Alluminio

Ciare CW256Z 250mm woofer with damped cellulose diaphragm, rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

CW256Z Features

  • Max power: 180W
  • Rated power: 90W
  • Nominal impedance: 4Ω
  • Diameter: 250mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 92 dB
  • Recommended load type: Closed enclosure
  • Recommended reflex volume: 55 dm3

CW256Z Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Diaphragm type: Treated cellulose fiber
  • Suspension type: Rubber
  • Former type: Aluminum
  • Electrical connection type: Faston
  • Air gap height: 6 mm

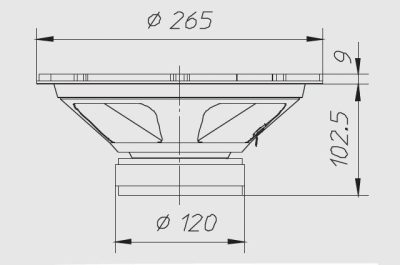

CW256Z Dimensions

  • Outer diameter: 265 mm
  • Sub-flange depth: 102.5 mm
  • Flange thickness: 9 mm
  • Panel cutout: 238 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 253
  • Weight with single packaging: 2.60 Kg

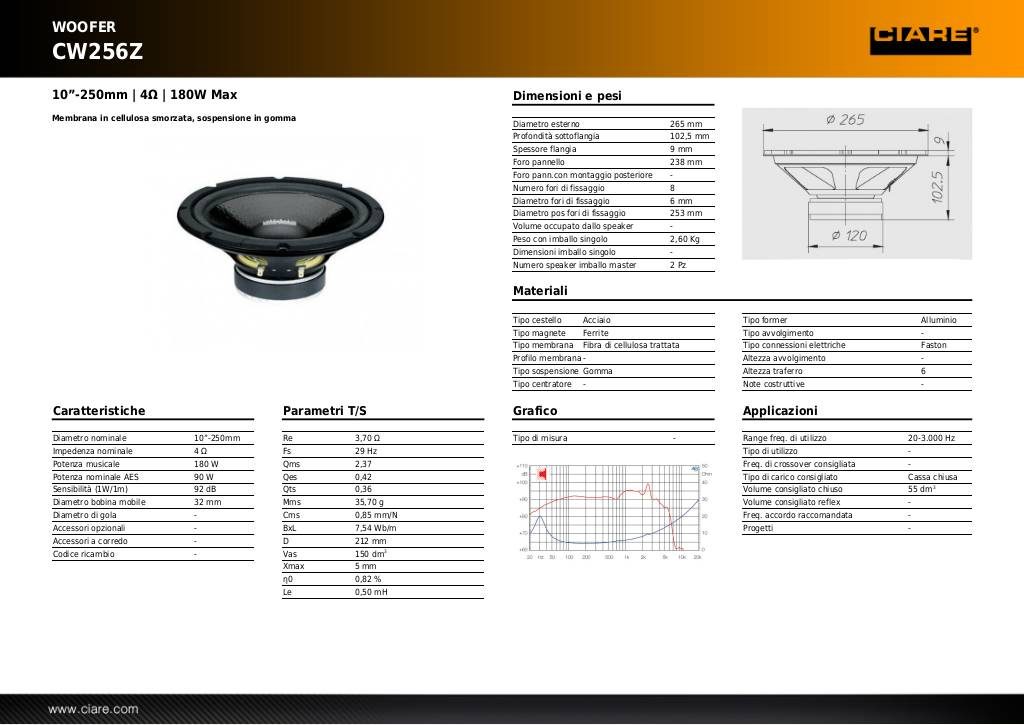

Scheda tecnica

20131030151714-cw256z.pdf

1 Ciare woofer CW256Z speaker
Discontinued
