CW180Z

Ciare

Discontinued

Your price:
€ 25,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
100 mm
MAX Power
120 Watt
RMS Power
50 Watt

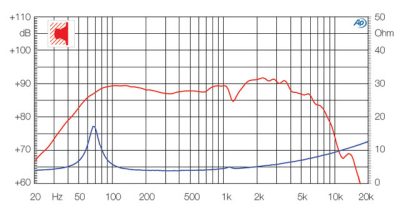

Frequency Response
45 - 5.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Weight
0,67 Kg
Installation Depth
58 mm
Woofer Material
Alluminio

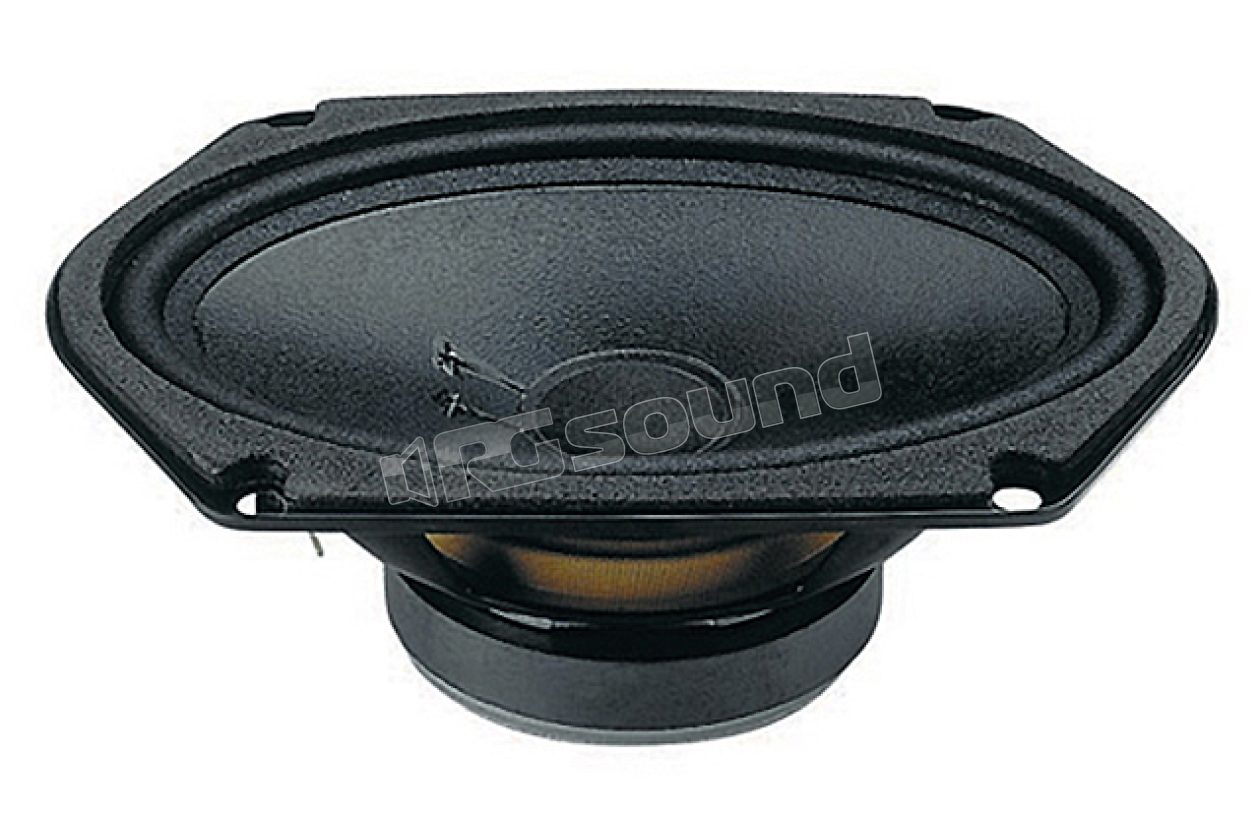

Ciare CW180Z elliptical woofer 130x180mm with damped cellulose membrane, polyurethane suspension. Ciare is a company constantly in step with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CW180Z Features

  • Max power: 120W
  • Nominal power: 50W
  • Nominal impedance: 4Ω
  • Diameter: 130x180mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB

CW180Z Materials

  • Basket type: Steel
  • Membrane type: Treated cellulose fiber
  • Suspension type: Polyurethane
  • Former type: Aluminum
  • Electrical connections type: Faston
  • Air gap height: 4 mm

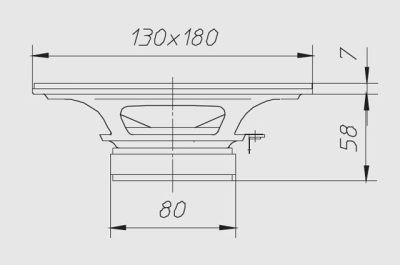

CW180Z Dimensions

  • External diameter: 130 x 180 mm
  • Depth under flange: 58 mm
  • Flange thickness: 7 mm
  • Panel hole: 160x110 mm
  • Number of fixing holes: 4
  • Fixing hole diameter: 6.5 mm
  • Fixing hole position diameter: 110
  • Weight with single packaging: 0.67 Kg

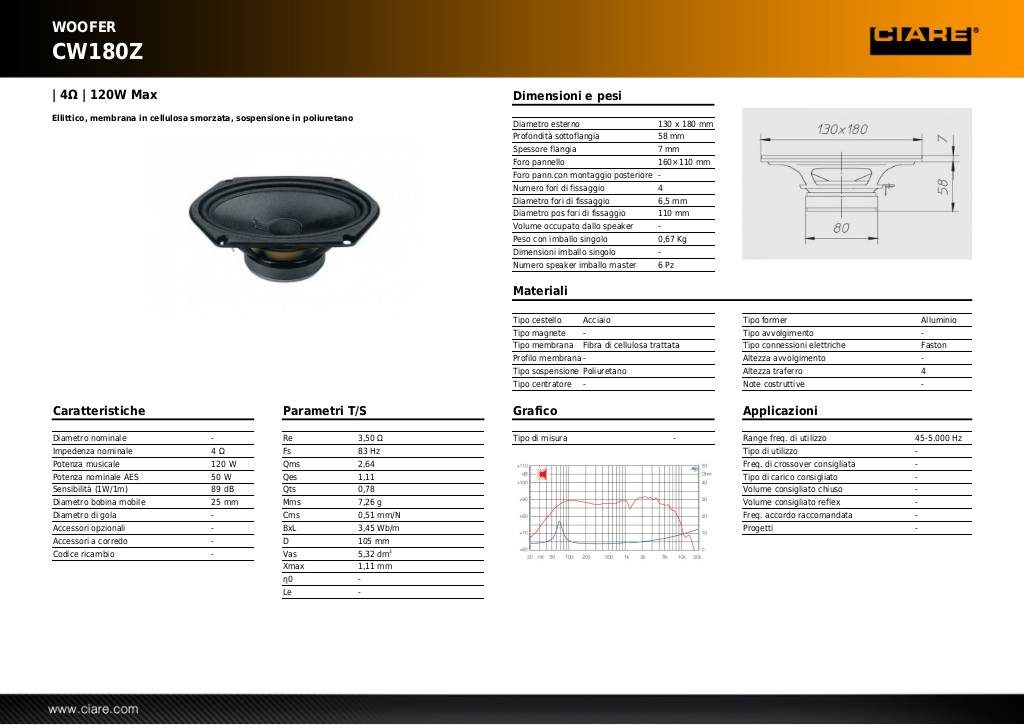

Scheda tecnica

20131029180621-cw180z.pdf
