CSW8001 SPL Series

Ciare

Discontinued

Your price:
€ 783,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
8.000 Watt
RMS Power
600 Watt
Frequency Response
25 - 200 Hertz
Sensitivity
89.5 dB
Impedance
1+1 Ohm
Weight
12,9 Kg
Installation Depth
190,5 mm
Woofer Material
Alluminio

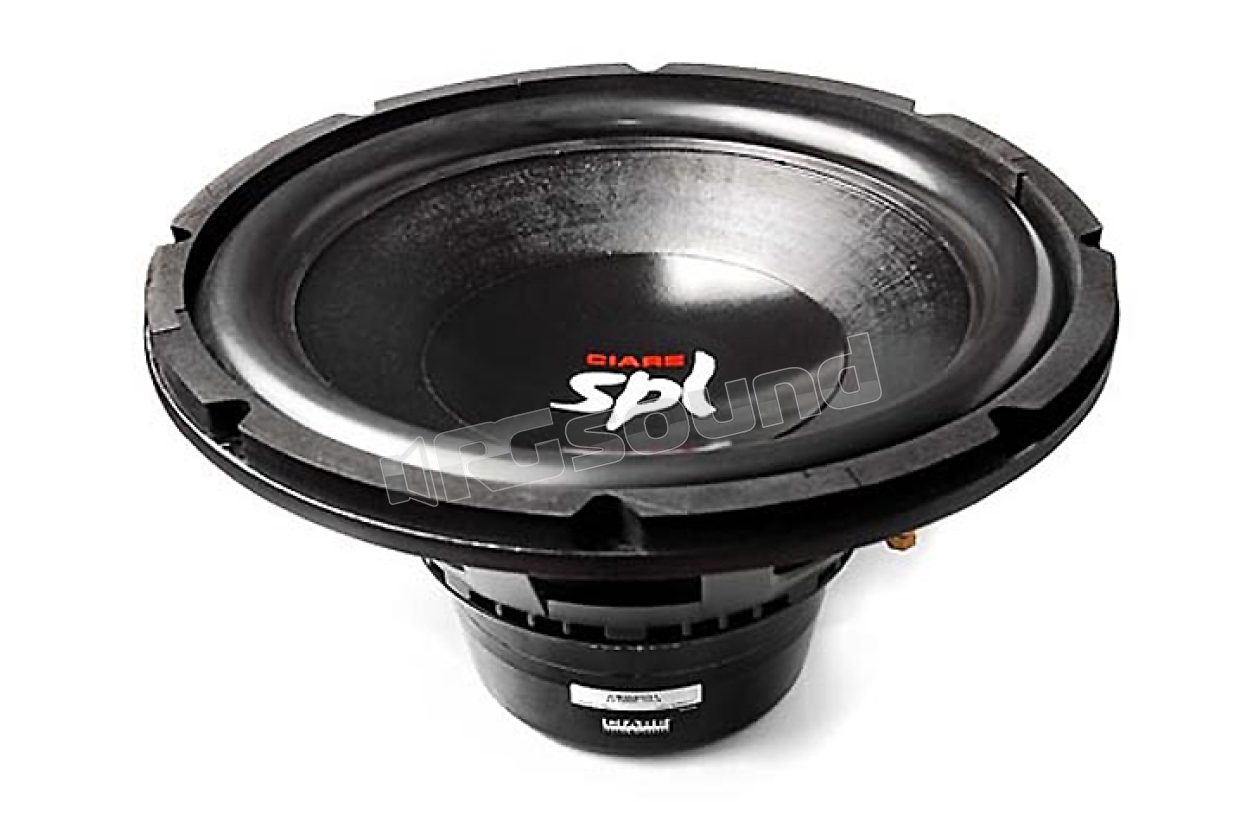

Ciare CSW8001 380mm subwoofer for SPL competitions with multi-fiber cone and aluminum flat wire coil, capable of dissipating extraordinary power. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allow the company to achieve the highest quality standards in the production of every component.

• CSW8001 SPL Series Features

• 100 mm coil with support and winding in aluminum flat wire
• Maximum "Burp" power: 2 x 4000 W
• Maximum mechanical excursion: +- 30 mm
• Innovative machined magnetic assembly with high temperature neodymium magnet
• Totally ventilated air gap
• Twin dual spiders in NOMEX ®
• Exclusive high-resistance rubber suspension
• Exclusive extra rigid sandwich membrane in special cellulose
• Exclusive gold-plated brass connection terminals for cables up to AWG1

CSW8001 Specifications

Max power: 8.000W
Nominal power: 600+600W
Diameter: 15''-380mm
Nominal impedance: 1+1?
Voice coil diameter: 100mm
Sensitivity 1W/1m: 89.5 dB
Usage type: Car SPL Competitions
Recommended load type: Bass Reflex
Recommended reflex volume: 40 dm3
Recommended tuning frequency: 42 Hz


CSW8001 Materials

Basket type: Aluminum
Magnet type: Neodymium
Membrane type: Reinforced cellulose fiber
Suspension type: Rubber
Spider type: Nomex
Former type: Aluminum
Winding type: Flat aluminum
Electrical connections type: Gold-plated brass
Membrane profile: Straight

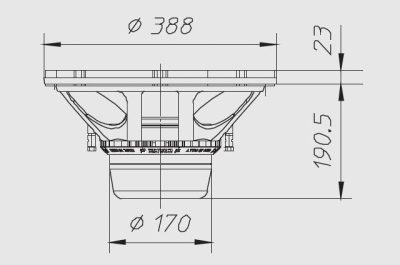

CSW8001 Dimensions

Air gap height: 20 mm
Outer diameter: 388 mm
Depth below flange: 190.5 mm
Flange thickness: 23 mm
Panel hole: 354 mm
Number of mounting holes: 8
Mounting hole diameter: 6.5 mm
Mounting hole position diameter: 368
Weight with individual packaging: 12.90 Kg

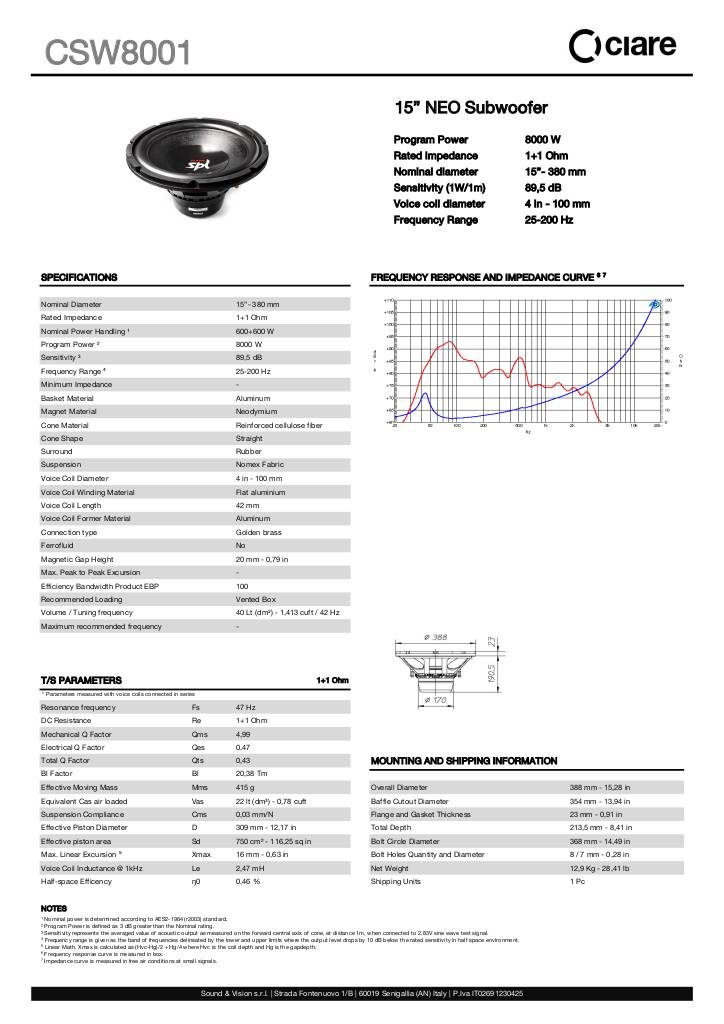

Scheda tecnica

n-20250411122535-ciare-csw8001-en.pdf

1 Ciare CSW8001 subwoofer speaker
Discontinued
