CSW7115 SPL Series

Ciare

Discontinued

Your price:
€ 830,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
7000 Watt
RMS Power
1000 Watt
Sensitivity
90.5 dB
Impedance
2+2 Ohm
Weight
19,6 Kg
Installation Depth
203 mm
Woofer Material
Cellulosa trattata

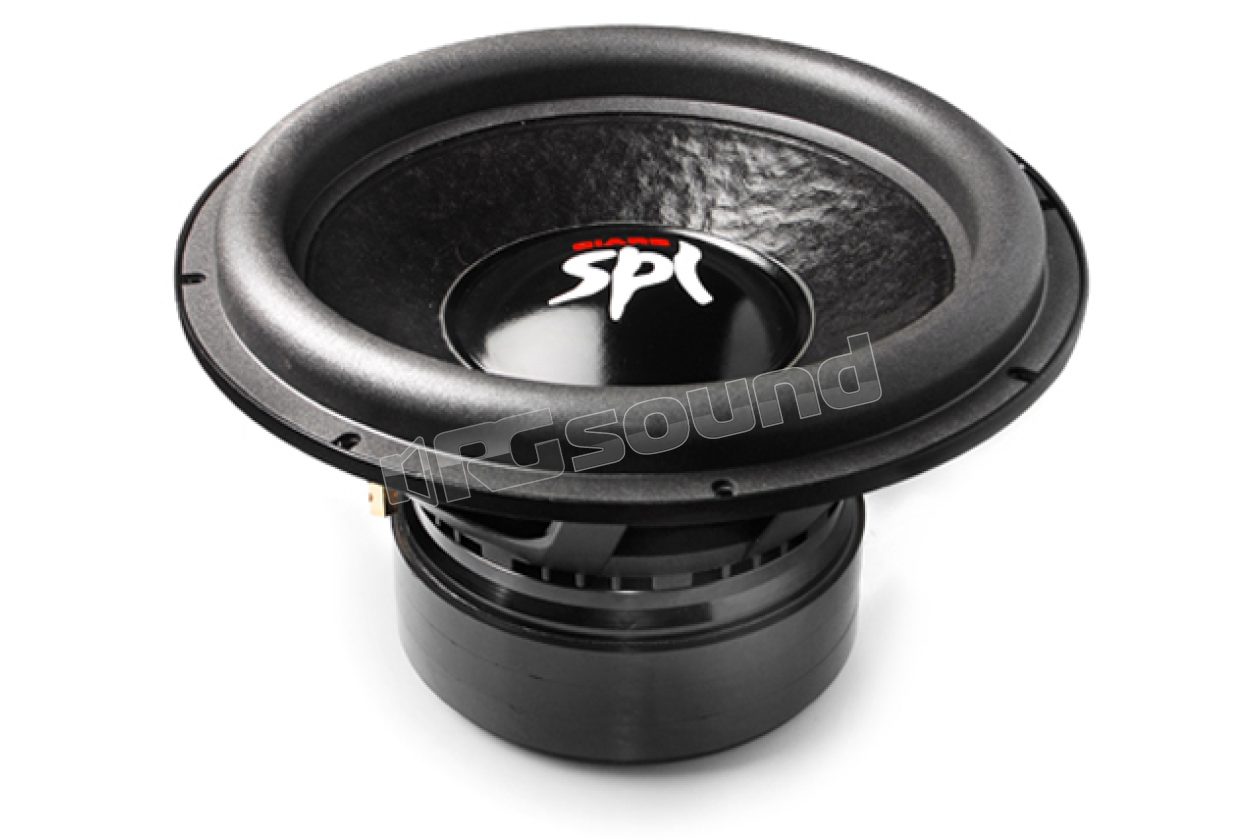

CIARE CSW7115 380 mm subwoofer for SPL competitions with multi-fiber cone and flat aluminum wire coil, capable of dissipating extraordinary power. Ciare is a company constantly keeping pace with technological innovations and under continuous market demand stimulus, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely autonomously manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CSW7115 SPL Series Features

• For SPL competitions
• 75 mm coil with aluminum support
• Flat aluminum wire winding
• Maximum "Burp" power: 2 x 3500 W
• Maximum mechanical excursion: +- 35 mm
• Fully vented air gap
• Double NOMEX ® cross-woven center caps
• Innovative high excursion suspension
• Exclusive extra rigid multi-fiber diaphragm
• Exclusive gold-plated brass connection terminals for cables up to AWG1

CSW7015 Specifications
Music power: 7.000 W
Nominal AES power: 500+500 W
Nominal diameter: 15''-380mm
Nominal impedance: 1 + 1 Ohm
Moving coil: 75mm
Sensitivity 1W/1m: 90.5 dB
Type of use: Car SPL Competitions
Recommended load type: Bass Reflex
Recommended reflex volume: 75 dm3
Recommended tuning frequency: 39 Hz
Frequency range of use: 25-200 Hz


Materials CSW7015
Basket type: Aluminum
Magnet type: Ferrite
Diaphragm type: Reinforced cellulose fiber
Suspension type: Polyurethane
Center cap type: Nomex
Former type: Aluminum
Winding type: Flat aluminum
Connection type: Screw terminal
Diaphragm profile: Straight
Air gap height: 15 mm

CSW7015 Dimensions
Outer diameter: 388 mm
Depth under flange: 203 mm
Flange thickness: 36 mm
Panel hole: 350 mm
Number of mounting holes: 8
Mounting hole diameter: 6.5 mm
Mounting hole position diameter: 368
Weight with single package: 19.60 Kg

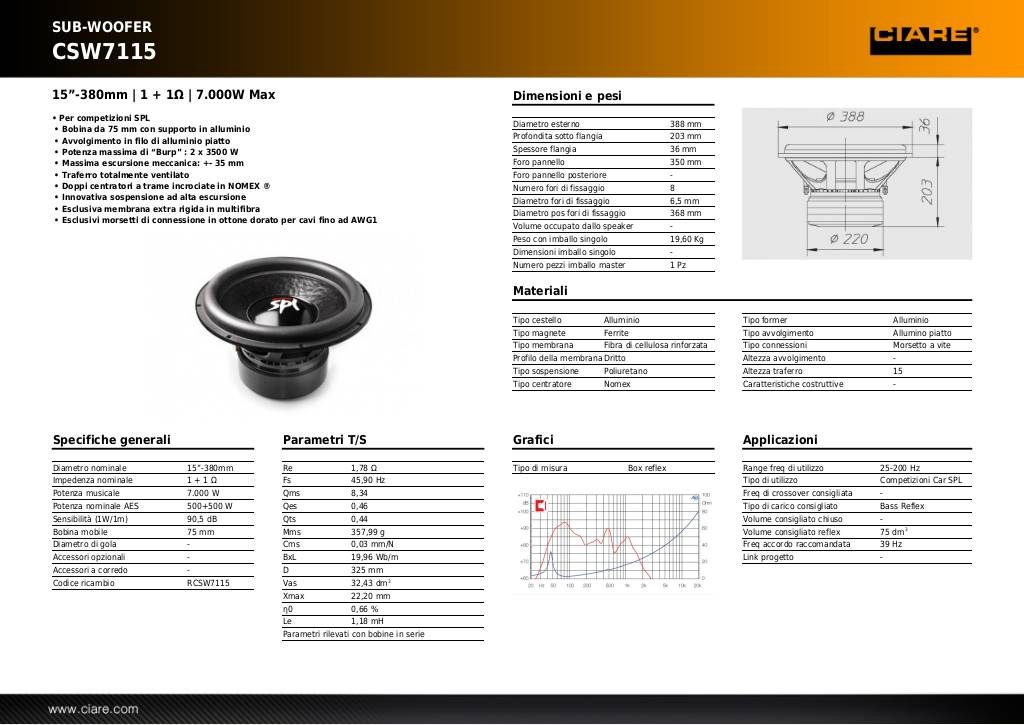

Scheda tecnica

20140228150208-csw7115.pdf
