CSS674 two-way system with 165mm woofer, 20mm tweeter, crossover and grilles

Kicker

Discontinued

Your price:
€ 179,10
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
35 - 21.000 Hertz
Woofer Size
165 mm
Tweeter Size
20 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
Titanio

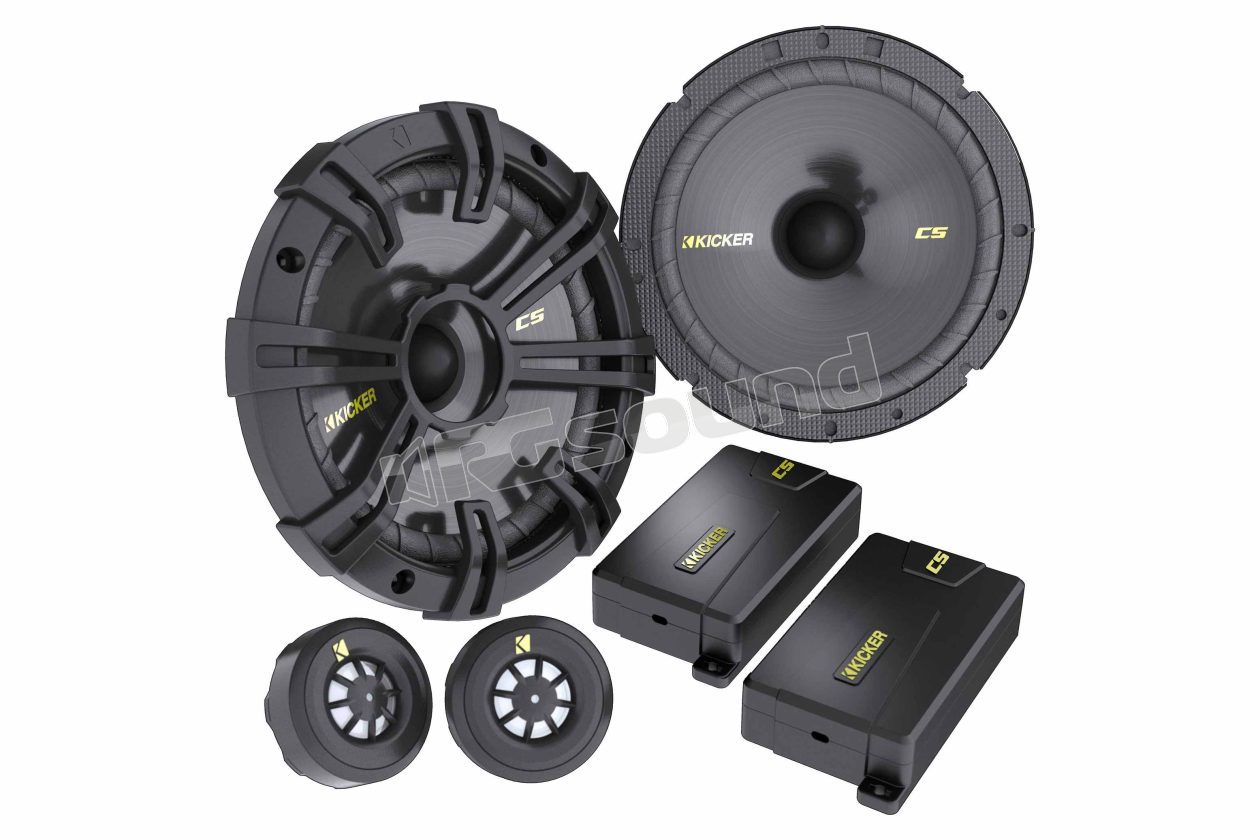

Kicker CSS674 two-way system of the CS Series composed of a pair of 165 mm woofers, a pair of 20 mm tweeters, a pair of dedicated crossovers and speaker grilles.

The Kicker CS series presents the two-way CSS674 kit which, with the woofer and tweeter combination, offers remarkable performance and precise bass. The woofers use a robust motor/magnet structure with EVC Technology (Extended Voice Coil), polypropylene cone for precise and reliable linear excursion.

Titanium tweeter and two-way crossover with tweeter level control.

These CS speakers work best with a recommended power of 100 watts.

Technical characteristics of the CSS674 kit

Woofer Size in 6 3/4 [165 mm]

Tweeter Size in 3/4 [20 mm]

Dome Material Titanium

Peak Power [watts] 300

Continuous Power | [watts RMS] 100

Effective Frequency Range Hz 35-21k

Woofer Mounting Hole Diameter in 5 1/2 [140 mm]

Woofer Bottom Mount Depth in 1 13/16 [47 mm]

Flush Mounting Tweeter Hole Diameter in 1 9/16 [40 mm]

Flush Mount Tweeter Depth in 9/16 [14.5 mm]

High Pass | dB, at Frequency Hz 12, 4000

Low Pass | dB, at Frequency Hz 12, 4000

High Frequency Output Attenuation dB 0, 3, & 6

Bolt-Thru Grilles Yes

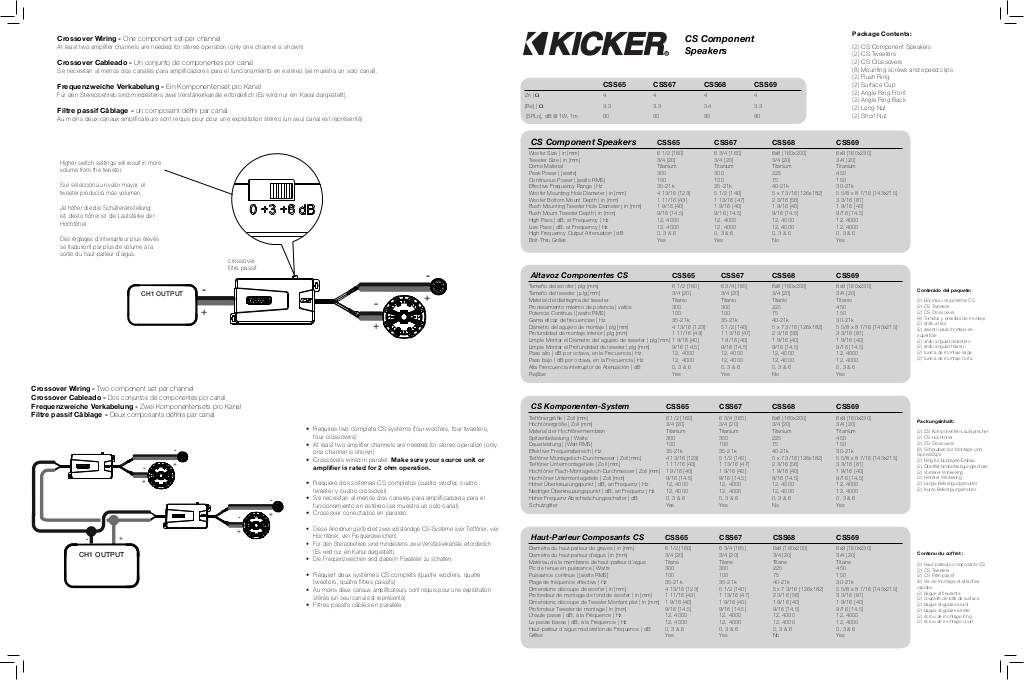

Scheda tecnica

n-20161019095637-cs-components-revb.pdf
