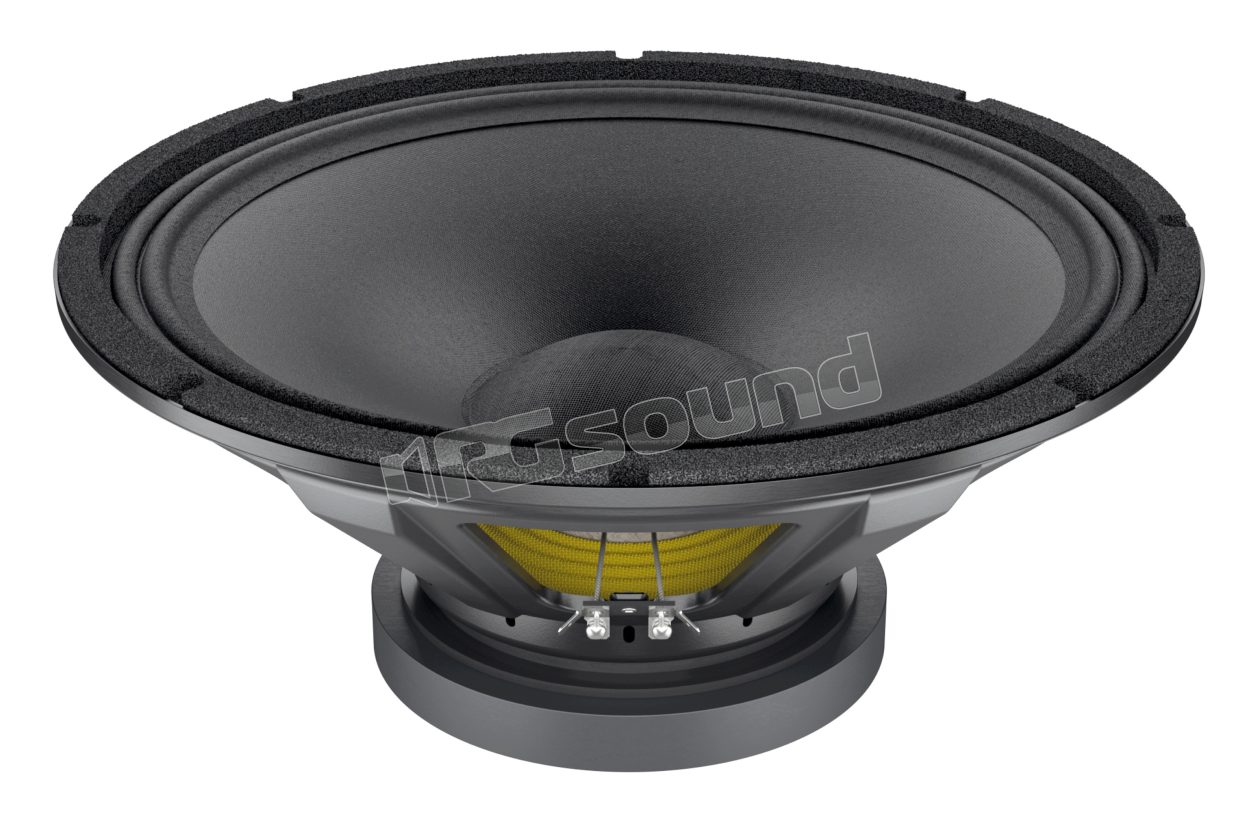

CSF153.00K 38cm full range speaker, 700 W power

LaVoce
Your price:
€ 257,30
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
50 - 2000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
6,4 Kg
Installation Depth
175 mm
Voice Coil Diameter
75 mm

LaVoce CSF153.00K full range speaker 38cm (15"), impedance 8 Ohm, power 700 W

Main features of the LaVoce CSF153.00K speaker

  • Common ferrite magnet for high and low frequencies
  • Driver with steel basket
  • Copper voice coil wound on 3 inch edge for low frequencies
  • CCA voice coil wound on 1.7 inch edge for high frequencies
  • Sensitivity 98 db/spl
  • Nominal power of 700 watt
  • Common motor optimized with fem,
  • Phaseplug and diaphragm iis patented
  • Frequency range from 50 to 20,000 hz
  • Nominal coverage of 80°
  • Polyimide diaphragm for high frequencies
  • Dual aluminum demodulation rings
  • Compact and lightweight design

LaVoce CSF153.00K technical specifications

  • Nominal diameter 380 mm (15 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 6.85 ohm
  • Program power 700 W
  • Nominal AES power 350 W
  • Sensitivity 98 dB
  • Frequency range 50 ÷ 2000 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Frame material STEEL
  • Magnet material FERRITE
  • Magnet dimensions (outer diameter x inner diameter x height) 185 x 85 x 22 mm (7.28 x 3.35 x 0.87 inches)
  • Coil material COPPER WOUND ON EDGE
  • Core material FIBERGLASS
  • Cone material WATERPROOF TREATED PAPER
  • Suspension material POLYCOTTON
  • Flux density 0.9 T
  • Xmax 7.2 mm (0.28 inches)
  • Xmech 11.2 mm (0.44 inches)
  • Air gap height 8 mm (0.31 inches)
  • Voice coil winding height 18.5 mm (0.73 inches)
  • Driver displacement volume 4.1 l (0.14 cubic feet)
  • Recommended enclosure 99.1 l (3.5 cubic feet)
  • Recommended tuning 51 Hz
  • HF output 25.4 mm (1 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 7.6 ohm
  • Program power 120 W
  • Nominal AES power 60 W
  • Sensitivity 108 dB
  • Frequency range 1000 ÷ 20000 Hz
  • Voice coil diameter 44.4 mm (1.7 in)
  • Coil material CCA wound on edge
  • Support material KAPTON
  • HF dome material POLYAMIDE
  • Suspension material POLYAMIDE
  • Flux density 1.7 T
  • Recommended crossover 1600 Hz
€ 257,30 Price incl. VAT
