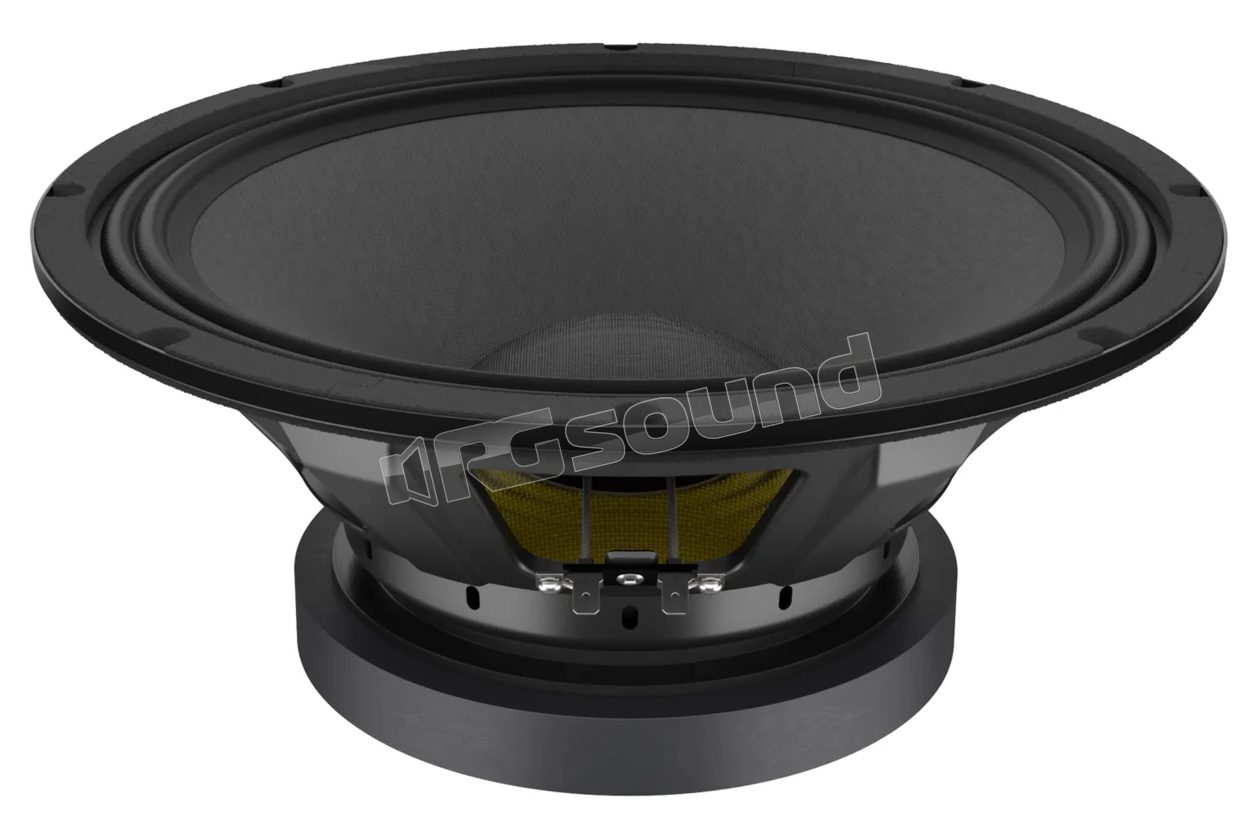

CSF122.50K 30cm speaker with ferrite magnet

LaVoce
Your price:
€ 218,12
instead of:€ 229,60
You save € 11,48
Offer valid until 29/11/2026
Price per single item (VAT included)
Black Friday: offers valid until 29 November
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
45 - 4000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
5,6 Kg
Installation Depth
148 mm
Voice Coil Diameter
65 mm

LaVoce CSF122.50K speaker 30cm / 12'' with ferrite magnet

Main features of the LaVoce CSF122.50K speaker

  • Common ferrite magnet for high and low frequencies
  • Drive system with steel basket
  • 2.5 inch voice coil for low frequencies, edge wound, in cca
  • 1.7 inch voice coil for high frequencies, edge wound, in cca
  • Sensitivity 97 db/spl
  • Rated power of 600 watts
  • Motor, phaseplug and diaphragm optimized with fem
  • Frequency range from 45 to 20,000 hz
  • Nominal coverage of 80°
  • Hf diaphragm in polyimide
  • Dual aluminum demodulation rings
  • Compact and lightweight design

LaVoce CSF122.50K technical specifications

  • Nominal diameter 300 mm (12 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 6.6 ohm
  • Program power 600 W
  • Rated power AES 300 W
  • Sensitivity 97 dB
  • Frequency range 45 ÷ 4000 Hz
  • Voice coil diameter 65 mm (2.5 inches)
  • Frame material STEEL
  • Magnet material FERRITE
  • Magnet dimensions (outer diameter x inner diameter x height) 185 x 85 x 22 mm (7.28 x 3.34 x 0.87 inches)
  • Coil material CCA EDGE WOUND
  • Core material FIBERGLASS
  • Cone material WATERPROOF TREATED PAPER
  • Suspension material POLYCOTTON
  • Flux density 1.12 T
  • Xmax 6.25 mm (0.25 inches)
  • Xmech 10.25 mm (0.4 inches)
  • Gap height 8 mm (0.31 inches)
  • Voice coil winding height 16.6 mm (0.65 inches)
  • Driver displacement volume 3 l (0.11 cubic feet)
  • Recommended speaker enclosure 55 l (1.94 cubic feet)
  • Recommended tuning 55 Hz
  • HF output 25.4 mm (1 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 7.6 ohm
  • Program power 120 W
  • Rated power AES 60 W
  • Sensitivity 105 dB
  • Frequency range 1000 ÷ 20000 Hz
  • Voice coil diameter 44.4 mm (1.7 in)
  • Coil material CCA EDGE WOUND
  • Support material KAPTON
  • HF dome material POLYAMIDE
  • Edge material POLYAMIDE
  • Flux density 1.65 T
  • Recommended crossover 1600 Hz
