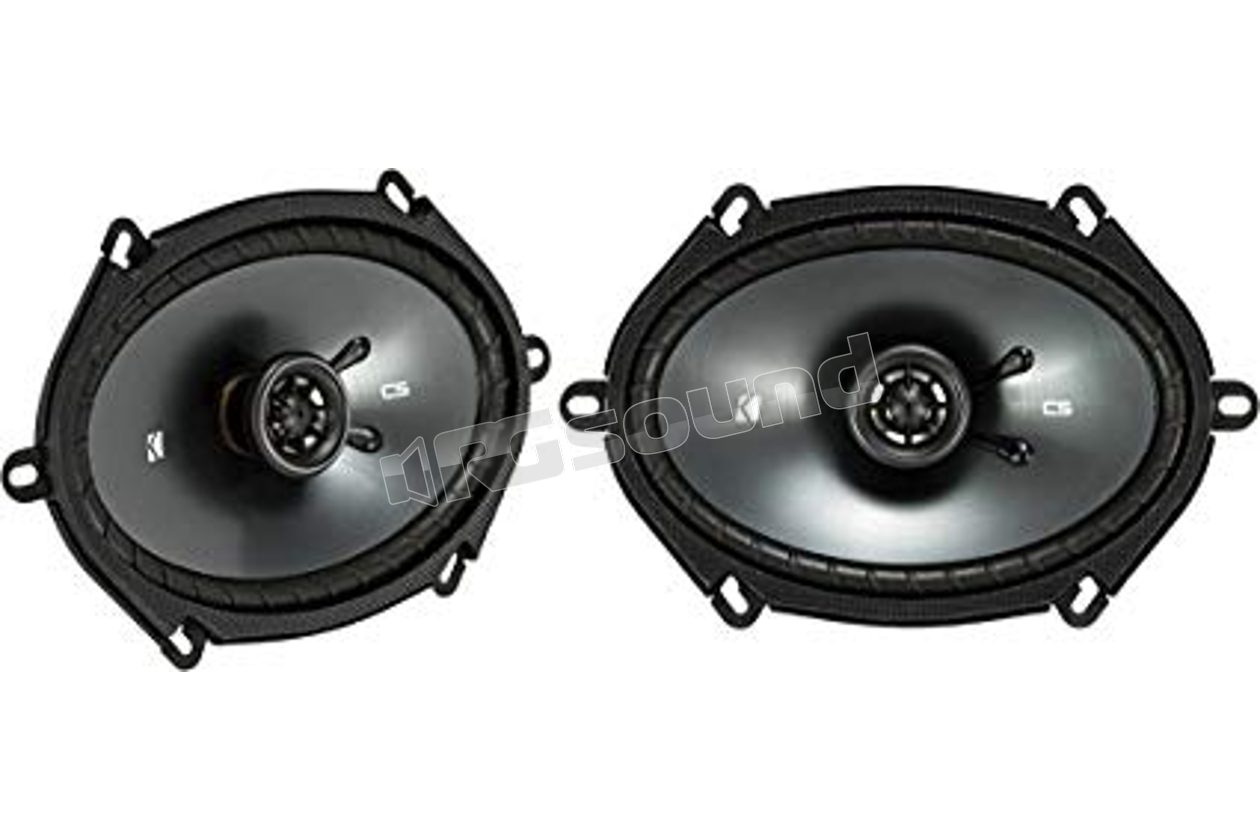

CSC684 6x8" 2-way coaxial

Kicker

Discontinued

Your price:
€ 79,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x8''
Coaxial Type
2-way
Frequency Response
45-20000 Hertz
MAX Power
225 Watt
RMS Power
75 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
poliestere
Tweeter Material
poliestere

Coaxial Kicker CSC684 speakers are an excellent upgrade from factory speakers.

These 6x8" two-way coaxial speakers are a significant sound upgrade. A reinforced steel frame supports a rigid polypropylene cone with EVC (Extended Voice Coil) technology, for the best sound quality. Pairing them with a CX amplifier brings even more volume and detail to your system.

These CSC684 speakers perform best with 75 watts of recommended power.

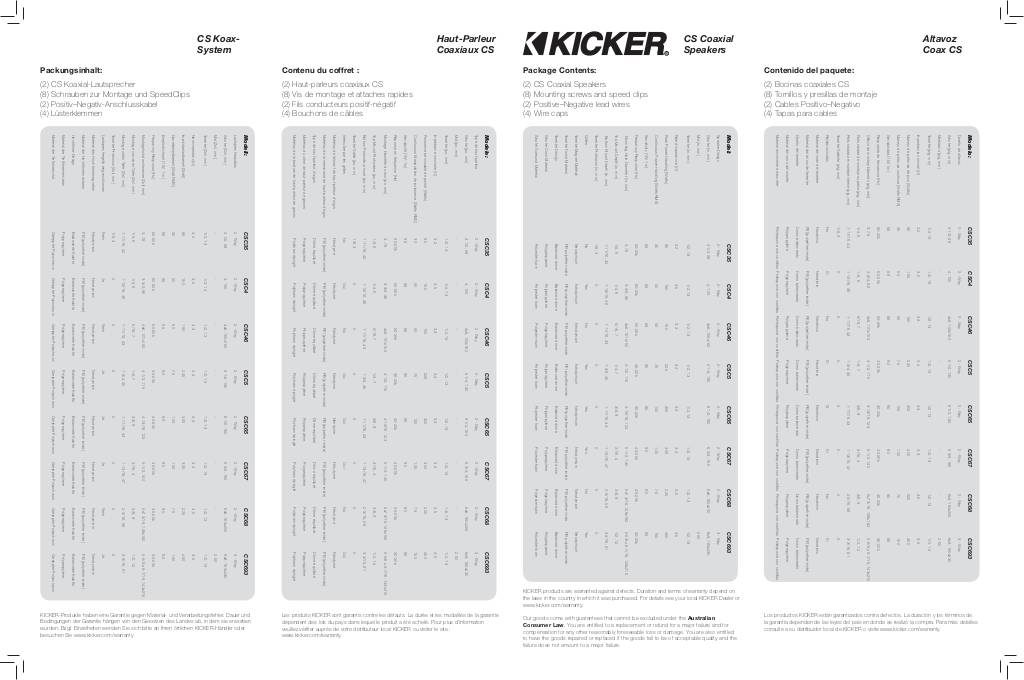

Manuale di istruzioni

n-20181121173035-2016-cs-coax-rev-b.pdf

Kicker CSC684 technical specifications

Coaxial 2-way

Woofer Size | in [mm] 6x8 [160x200]

Tweeter Size | in [mm] 1/2 [13]

DC Resistance | ohm 3.5

Peak Power | Watts 225

Continuous Power | Watts, RMS 75

Sensitivity [SPLo] | dB @ 1W, 1m 90

Effective Frequency Range | Hz 45-20k

Mounting Hole Diameter | in [mm] 5 x 7 3/16 [126x182]

Top Mount Depth | in [mm] 3/8 [9]

Bottom Mount Depth | in [mm] 2 3/16 [56]

Tweeter Magnet Neodymium

Tweeter Dome PEI [polyether imide

Tweeter Design Balanced dome

Woofer Cone Polypropylene

Woofer Surround Polyester foam
