CS395N SPL subwoofer

Ciare
Your price:
€ 396,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

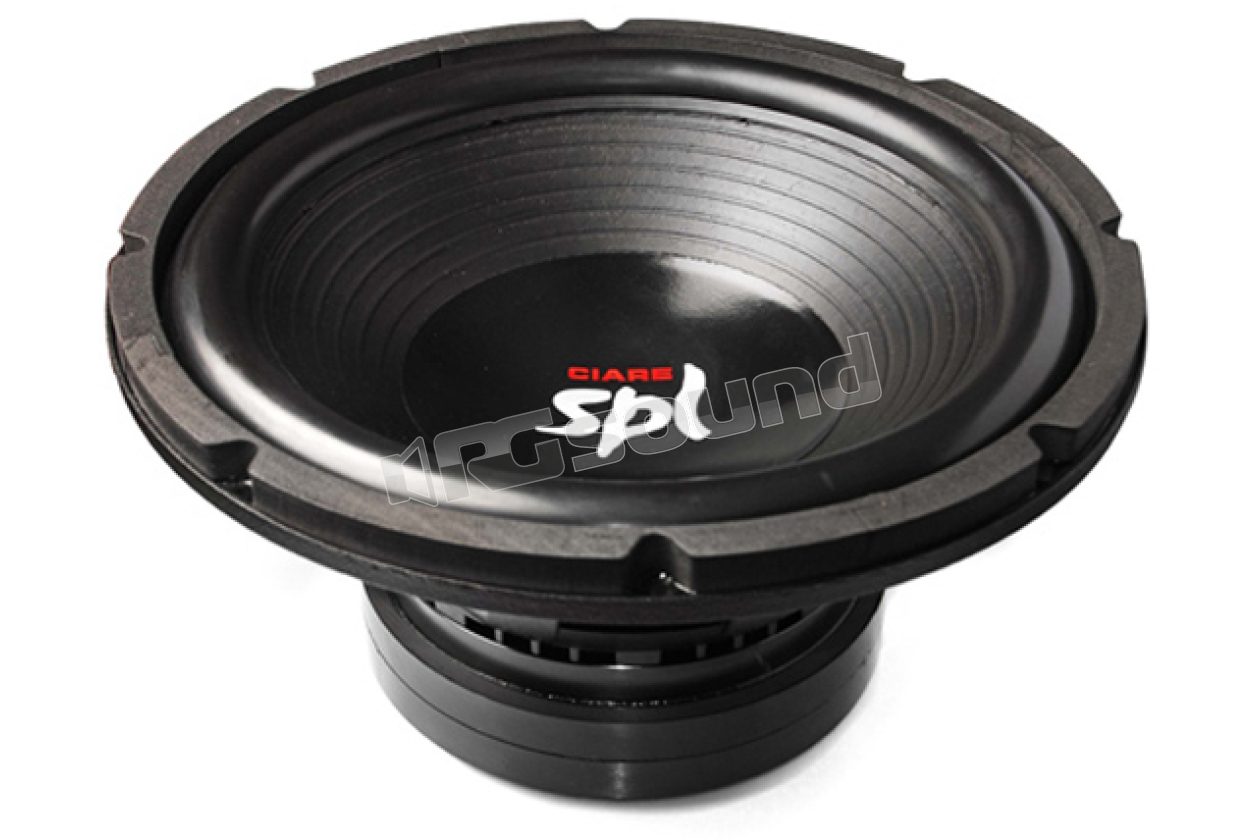

Ciare CS395N 320 mm subwoofer for SPL competitions. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product development, allowing the company to achieve the highest quality standards in the realization of every component.

CS395N Features

Treated cellulose cone, rubber suspension, double flat spider, ELSG technology


CS395N Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Cone type: Treated cellulose fiber
  • Suspension type: Rubber
  • Spider type: Nomex
  • Former type: Fiberglass
  • Connection type: Push
  • Air gap height: 20 mm

CS335N Technical Specifications

  • Musical power: 1000+1000 W
  • Nominal AES power: 500+500 W
  • Nominal diameter: 15''-380mm
  • Nominal impedance: 2+2 Ω
  • Voice coil: 100mm
  • Sensitivity 1W/1m: 91.5 dB

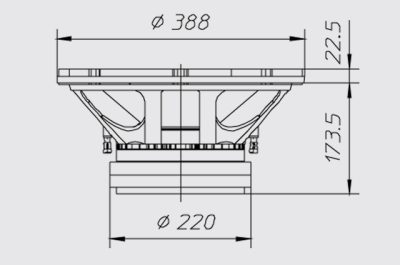

Panel hole: 350 mm
Number of mounting holes: 8
Mounting hole diameter: 6.5 mm
Mounting hole position diameter: 368
Weight with single package: 16.40 Kg

Usage type: Sub-woofer
Recommended load type: Bass Reflex
Recommended reflex volume: 75 dm3
Recommended tuning frequency: 40 Hz
Frequency usage range: 25-200 Hz

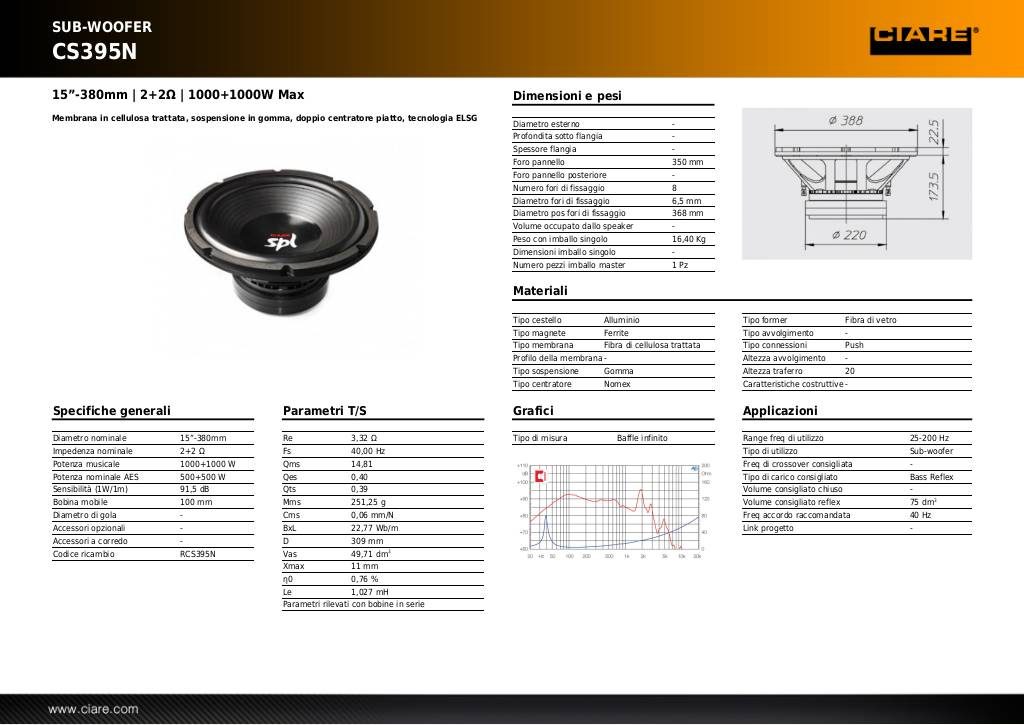

Scheda tecnica

20140228151822-cs395n.pdf
