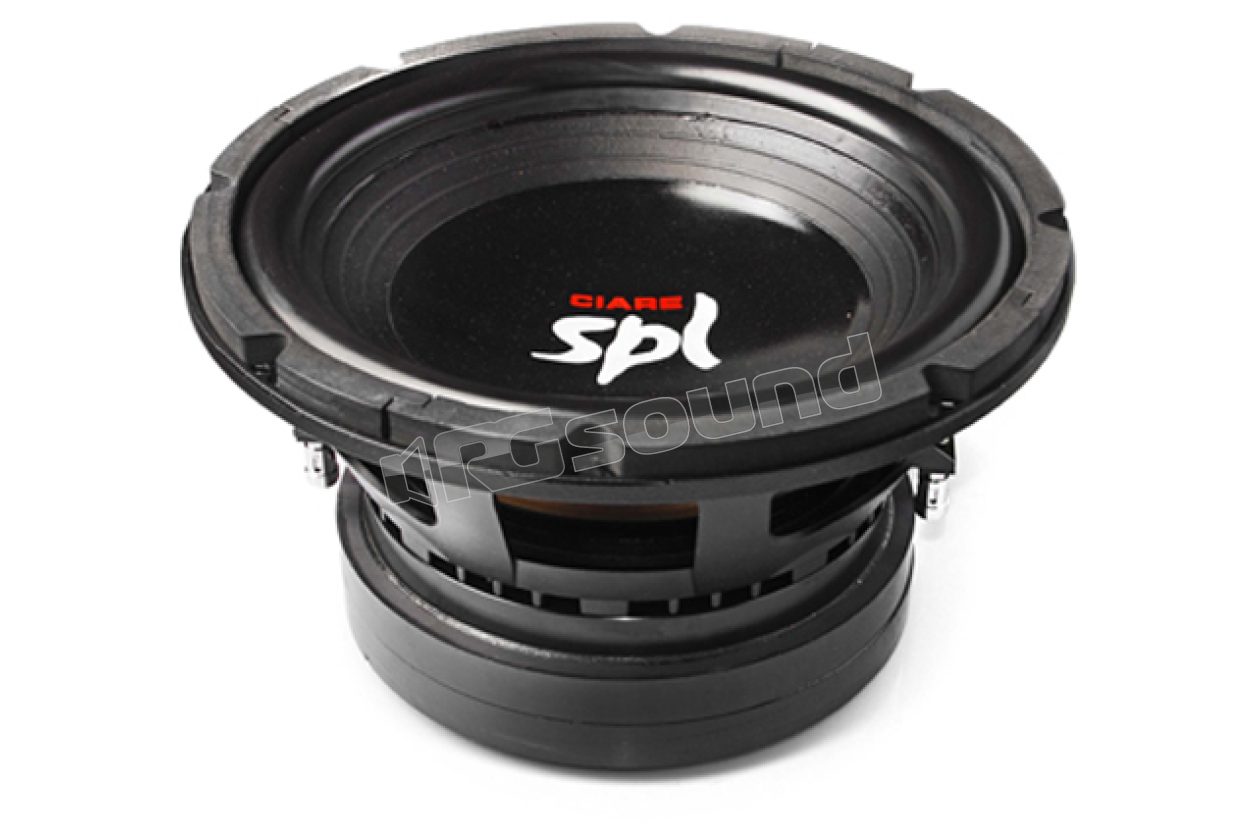

CS335N SPL subwoofer

Ciare

Discontinued

Your price:
€ 413,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
100 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Sensitivity
90.5 dB
Impedance
2+2 Ohm
Weight
16 Kg
Installation Depth
160 mm
Woofer Material
Cellulosa trattata

CIARE CS335N 320 mm subwoofer for SPL competitions. Ciare is a company constantly keeping pace with technological innovations and under continuous stimulus from market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CS335N Features

Treated cellulose diaphragm, rubber suspension, double flat centering device, ELSG technology


CS335N Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Diaphragm type: Treated cellulose fiber
  • Suspension type: Rubber
  • Centering device type: Nomex
  • Former type: Fiberglass
  • Connections type: Push
  • Air gap height: 20 mm

CS335N Technical specifications:

  • Music power: 1000+1000 W
  • Nominal AES power: 500+500 W
  • Nominal diameter: 12''-320mm
  • Nominal impedance: 2+2Ω
  • Voice coil: 100mm
  • Sensitivity 1W/1m: 90.5 dB

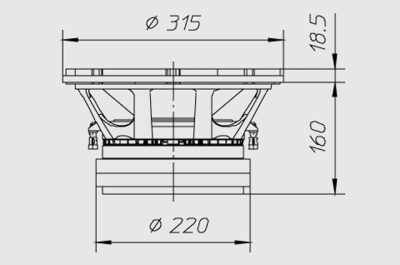

Panel hole: 282 mm
Number of mounting holes: 8
Mounting holes diameter: 7 mm
Mounting holes position diameter: 295
Weight with single package: 16 Kg

Type of use: Sub-woofer
Recommended load type: Bass Reflex
Recommended reflex volume: 40 dm3
Recommended tuning frequency: 44 Hz
Frequency range of use: 30-200 Hz

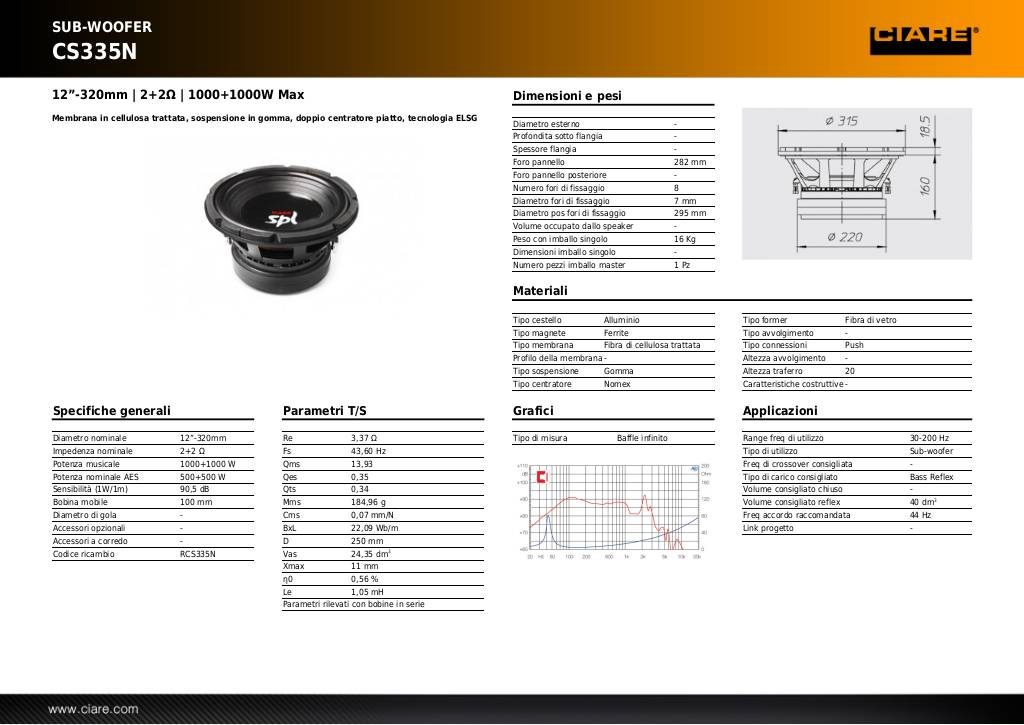

Scheda tecnica

20140228151156-cs335n.pdf
Discontinued
