CS325 Cs Series

Ciare

Discontinued

Your price:
€ 163,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
20 - 1.000 Hertz
Sensitivity
92 dB
Impedance
2+2 Ohm
Weight
3,5 Kg
Installation Depth
129 mm
Woofer Material
Acciaio

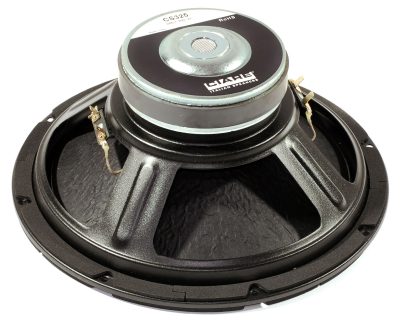

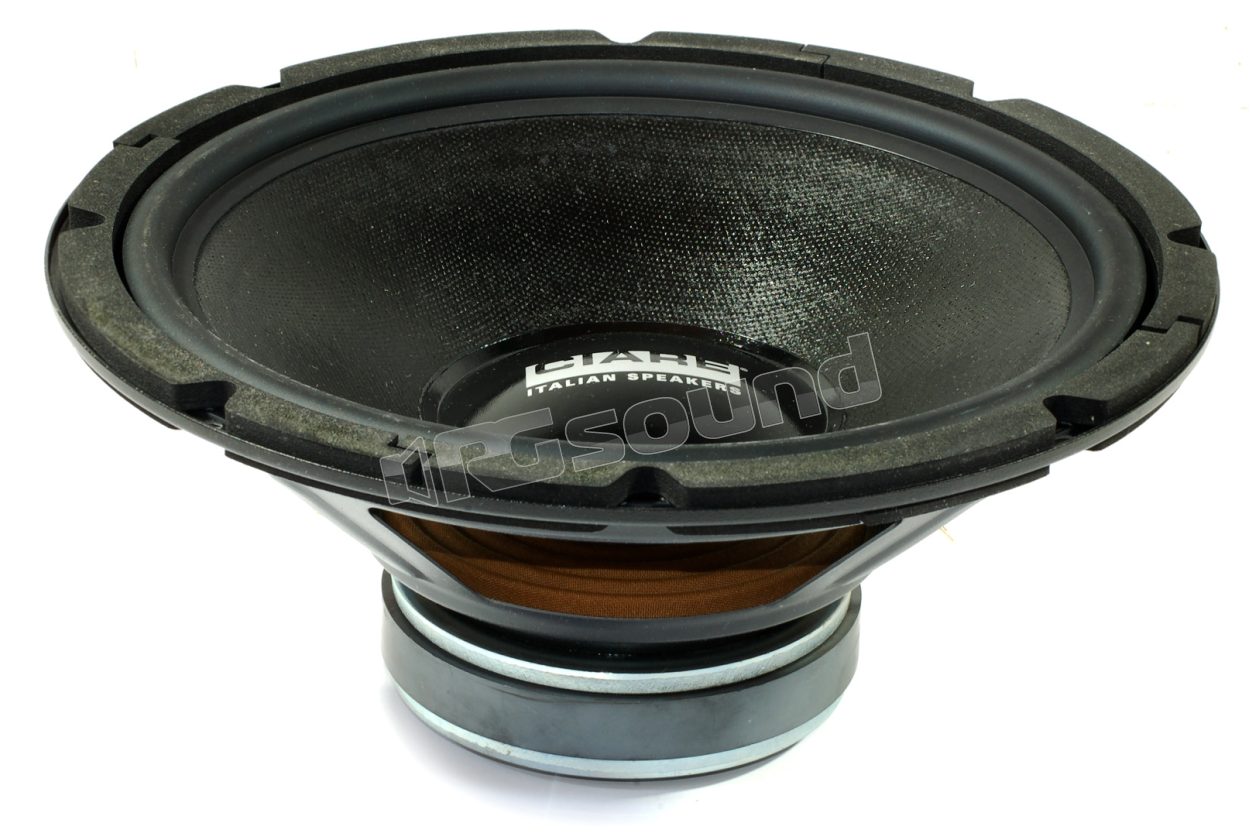

CIARE CS325 Subwoofer, 320mm size, Cs Series with cellulose membrane and rubber suspension. Speaker usable also for Home Hi-Fi and Home Theater applications. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allowing the company to achieve the highest quality standards in the realization of every component.

CS325 Features

  • Max power: 200+200W
  • Nominal power: 100+100W
  • Diameter: 12''-300mm
  • Nominal impedance: 2+2Ω
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 92 dB
  • Recommended load type: Symmetrical load
  • Recommended closed volume: 25 dm3
  • Recommended reflex volume: 22 dm3
  • Recommended tuning frequency: 70 Hz

CS325 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Kapton
  • Air gap height: 8 mm

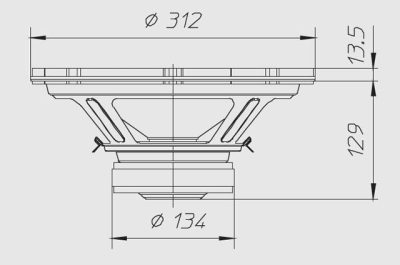

CS325 Dimensions

  • External diameter: 312 mm
  • Depth under flange: 129 mm
  • Flange thickness: 13.5 mm
  • Panel hole: 285 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 8 mm
  • Mounting hole position diameter: 296
  • Weight with single packaging: 3.50 Kg

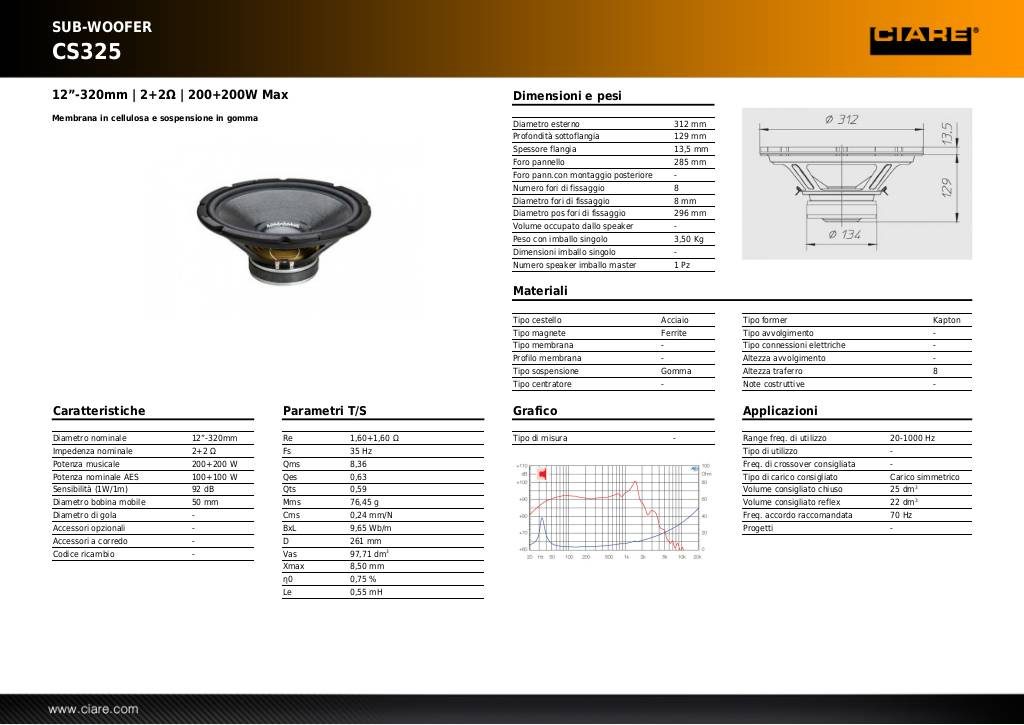

Scheda tecnica

20131029120715-cs325.pdf

1 Ciare subwoofer speaker CS325
