CS253 Cs Series

Ciare

Discontinued

Your price:
€ 152,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
250 Watt
RMS Power
100 Watt

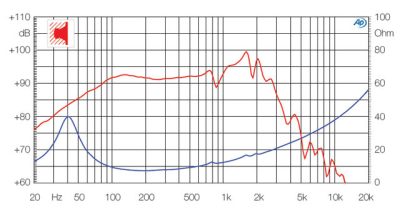

Frequency Response
45 - 1.000 Hertz
Sensitivity
92 dB
Impedance
4+4 Ohm
Weight
4,6 Kg
Installation Depth
107,5 mm
Woofer Material
Acciaio

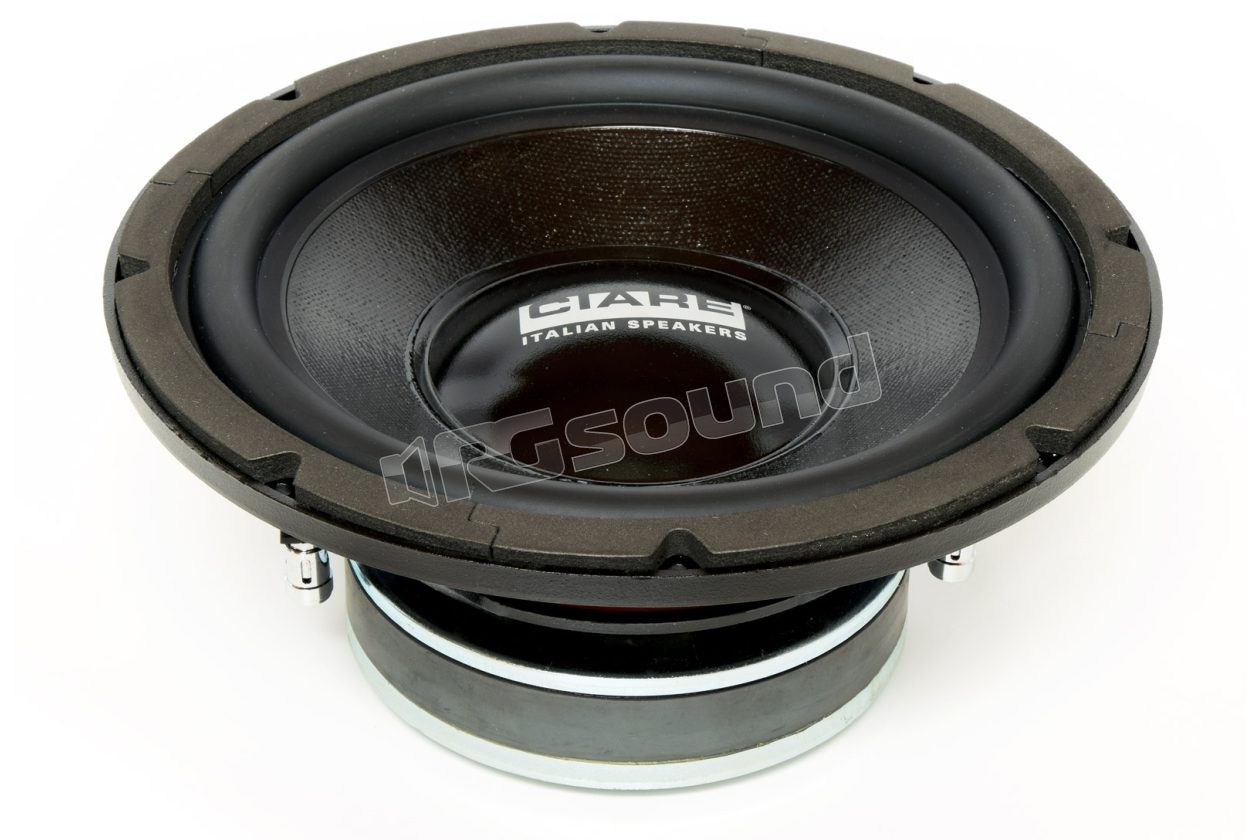

CIARE CS253 Subwoofer, 250mm size, Cs Series with dual voice coil, damped cellulose membrane and rubber suspension. Speaker usable also for Home Hi-Fi and Home Theater applications.
Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of each component.

CS253 Features

  • Max power: 250+250W
  • Nominal power: 100+100W
  • Diameter: 10''-250mm
  • Nominal impedance: 4+4Ω
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 92 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 65 dm3
  • Recommended tuning frequency: 36 Hz

CS253 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 8 mm

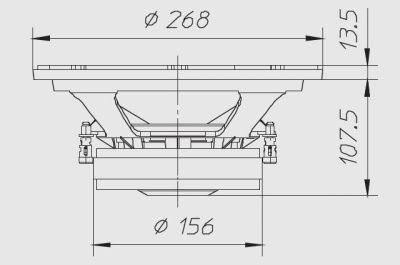

CS253 Dimensions

  • Outer diameter: 268 mm
  • Depth under flange: 107.5 mm
  • Flange thickness: 13.5 mm
  • Panel hole: 232 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 253
  • Weight with single packaging: 4.60 kg

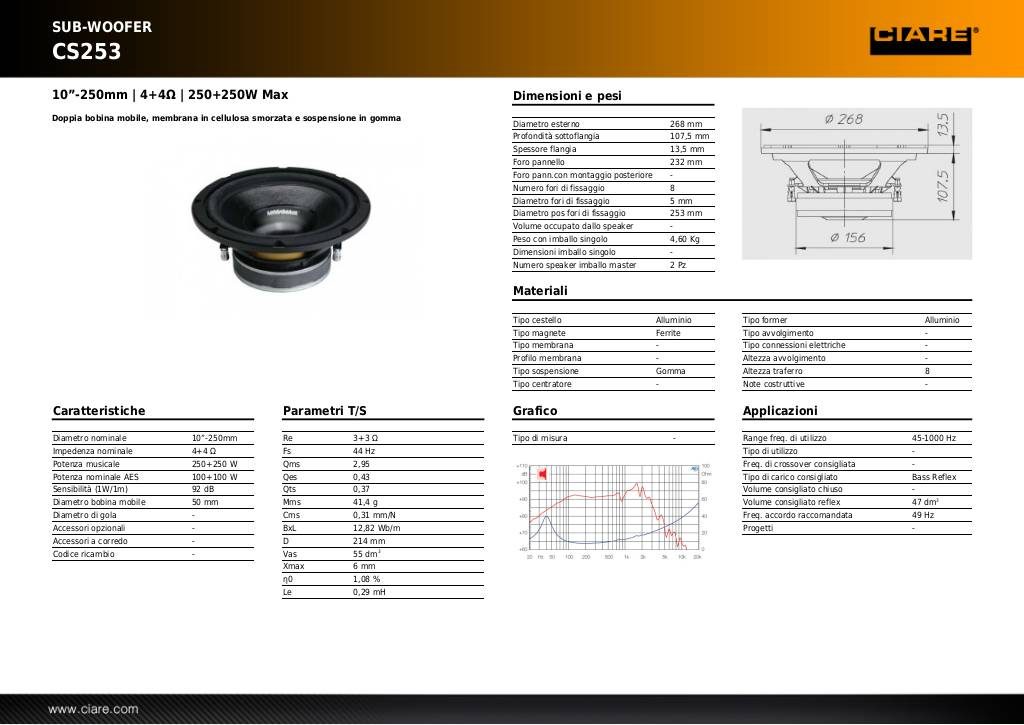

Scheda tecnica

20131029115322-cs253.pdf

1 Ciare subwoofer speaker CS253
Discontinued
