CS201 Cs Series

Ciare

Discontinued

Your price:
€ 78,20
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
180 Watt
RMS Power
60 Watt
Frequency Response
35 - 2.000 Hertz
Sensitivity
91 dB
Impedance
4+4 Ohm
Weight
2,4 Kg
Installation Depth
89 mm
Woofer Material
Acciaio

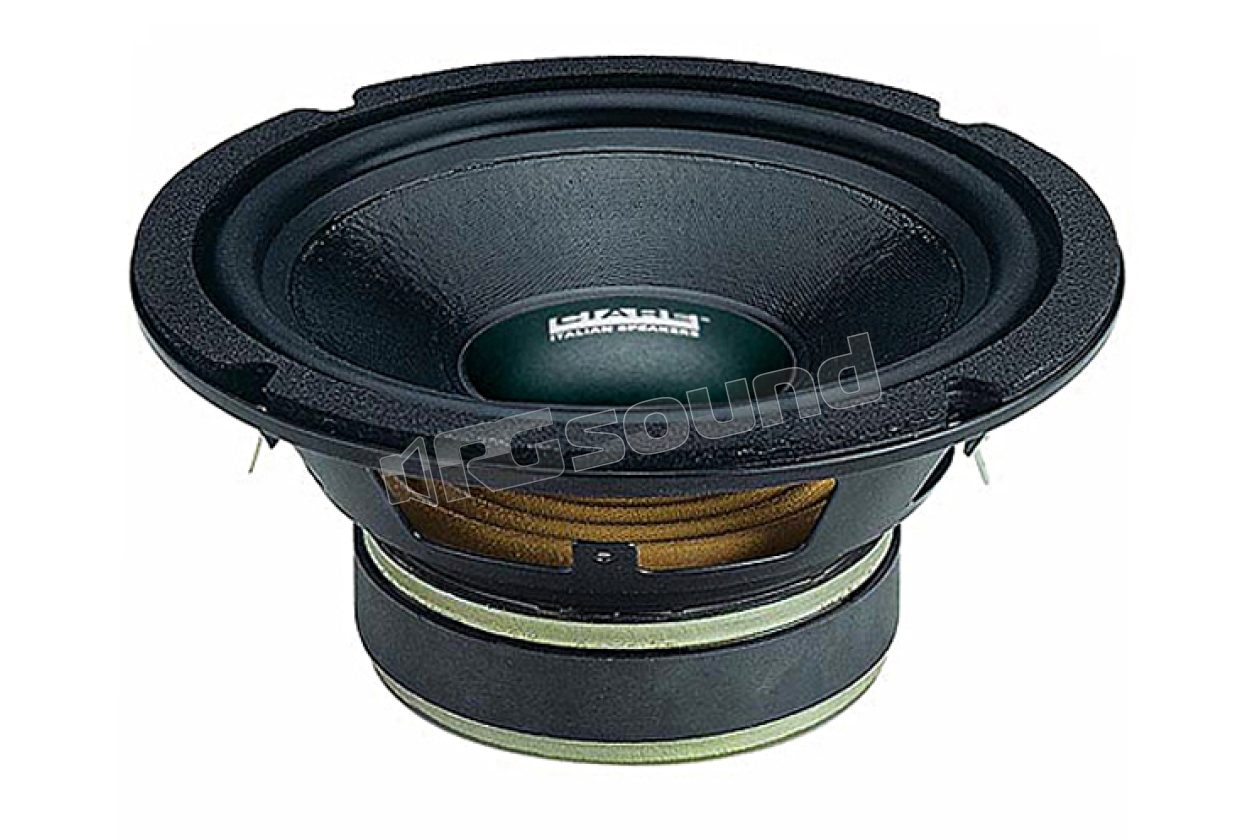

CIARE CS201 Subwoofer, 200mm size, Cs Series with dual voice coil, damped cellulose cone and rubber surround. Speaker also usable for Home Hi-Fi and Home Theater applications. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CS201 Characteristics

  • Max power: 180+180W
  • Nominal power: 60+60W
  • Diameter: 8''-200mm
  • Nominal impedance: 4+4Ω
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 65 dm3
  • Recommended tuning frequency: 36 Hz

CS201 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Surround type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

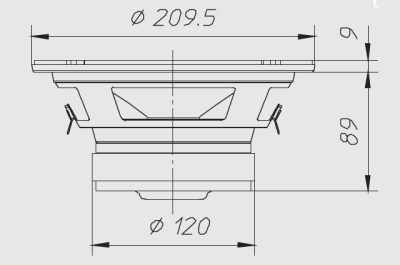

CS201 Dimensions

  • Outer diameter: 209.5 mm
  • Depth under flange: 89 mm
  • Flange thickness: 9 mm
  • Panel hole: 180 mm
  • Number of mounting holes: 4
  • Diameter of mounting holes: 5 mm
  • Diameter pos. mounting holes: 198.5
  • Weight with individual packaging: 2.40 Kg

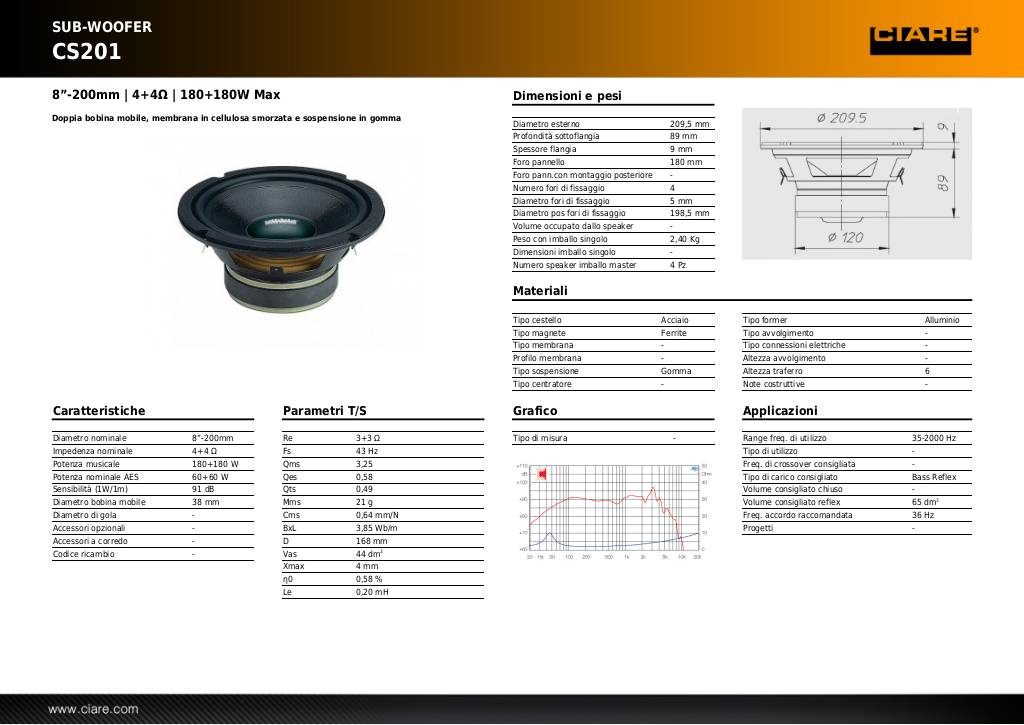

Scheda tecnica

20131029112351-cs201.pdf

1 Ciare CS201 subwoofer speaker
Discontinued
