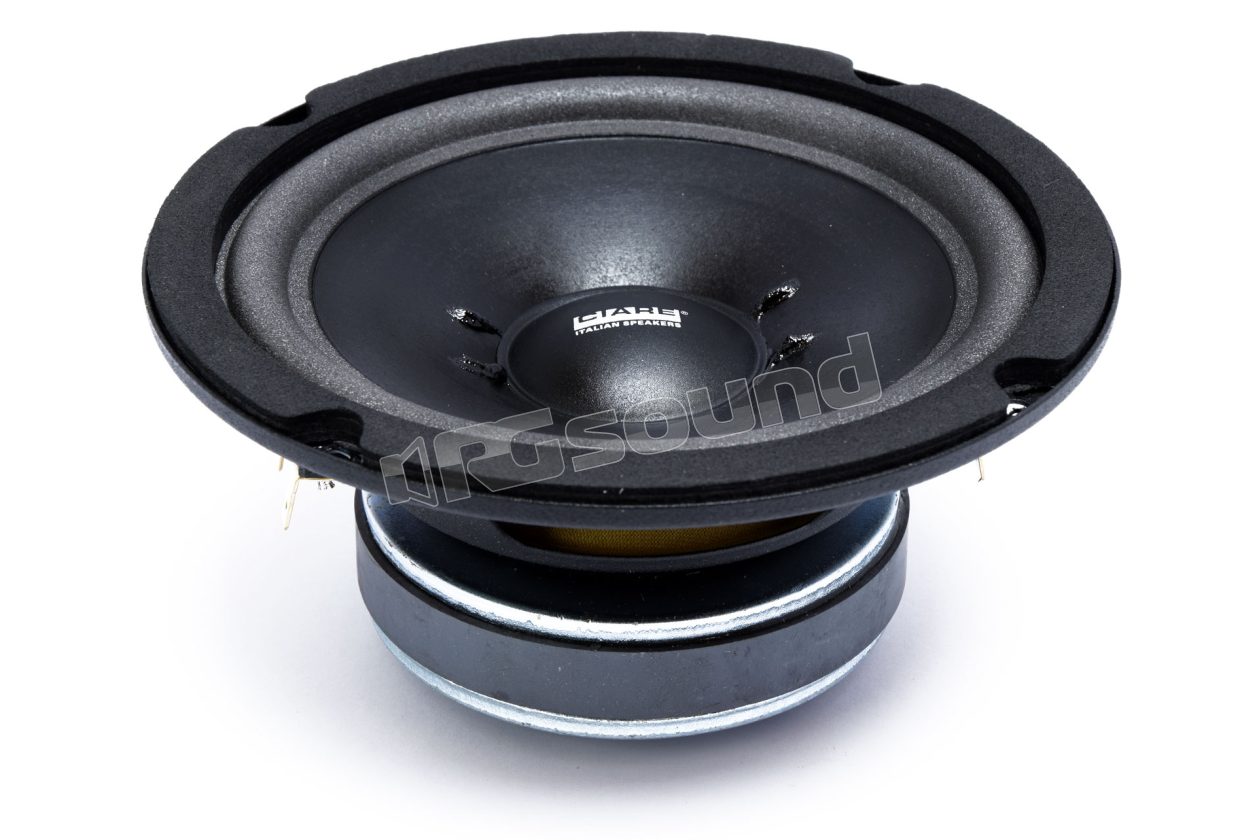

CS160 Cs Series

Ciare
Your price:
€ 52,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
165 mm
MAX Power
120 Watt
RMS Power
40 Watt

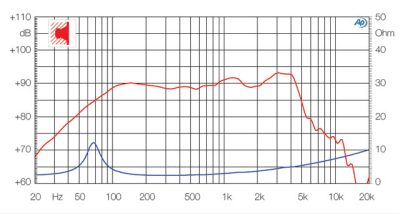

Frequency Response
45 - 2.000 Hertz
Sensitivity
90 dB
Impedance
4+4 Ohm
Weight
1,4 Kg
Installation Depth
73,5 mm
Woofer Material
Acciaio

CIARE CS160 Subwoofer, 165mm size, Cs Series with dual voice coil, damped cellulose membrane and polyurethane suspension

Speaker usable also for Home Hi-Fi and Home Theater applications. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CS160 Features

  • Max Power: 120W
  • Nominal Power: 40W
  • Diameter: 6.5"-165mm
  • Nominal Impedance: 4+4 Ohm
  • Voice Coil Diameter: 32mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended Load Type: Bass Reflex
  • Recommended Reflex Volume: 6 dm3
  • Recommended Tuning Frequency: 63 Hz

CS160 Materials

  • Basket Type: Steel
  • Magnet Type: Ferrite
  • Suspension Type: Polyurethane
  • Former Type: Aluminum
  • Air Gap Height: 6 mm

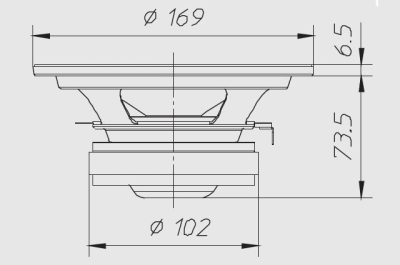

CS160 Dimensions

  • External Diameter: 169 mm
  • Depth Below Flange: 73.5 mm
  • Flange Thickness: 6.5 mm
  • Panel Hole: 142 mm
  • Number of Mounting Holes: 4
  • Mounting Hole Diameter: 5 mm
  • Mounting Hole Position Diameter: 158
  • Weight with Single Box: 1.44 Kg

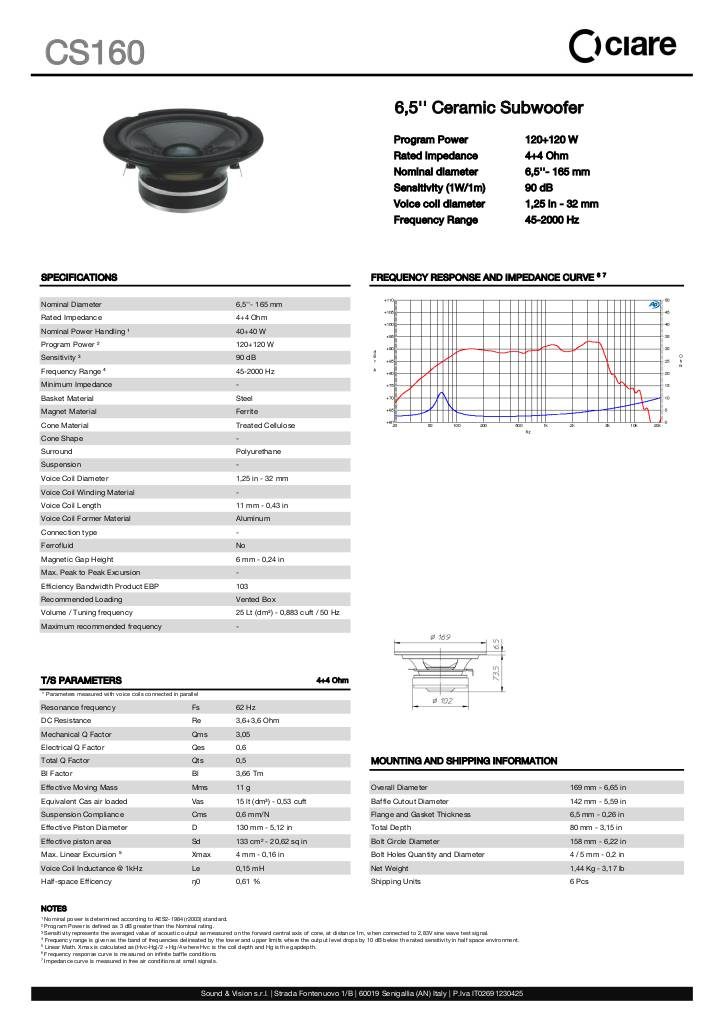

Scheda tecnica

n-20250411120406-ciare-cs160-en.pdf

1 Ciare subwoofer speaker CS160
€ 52,00 Price incl. VAT
