CS130 Cs Series

Ciare
Your price:
€ 46,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
130 mm
MAX Power
90 Watt
RMS Power
30 Watt
Frequency Response
50 - 1.500 Hertz
Sensitivity
88 dB
Impedance
4+4 Ohm
Weight
1,35 Kg
Installation Depth
62,5 mm
Woofer Material
Acciaio

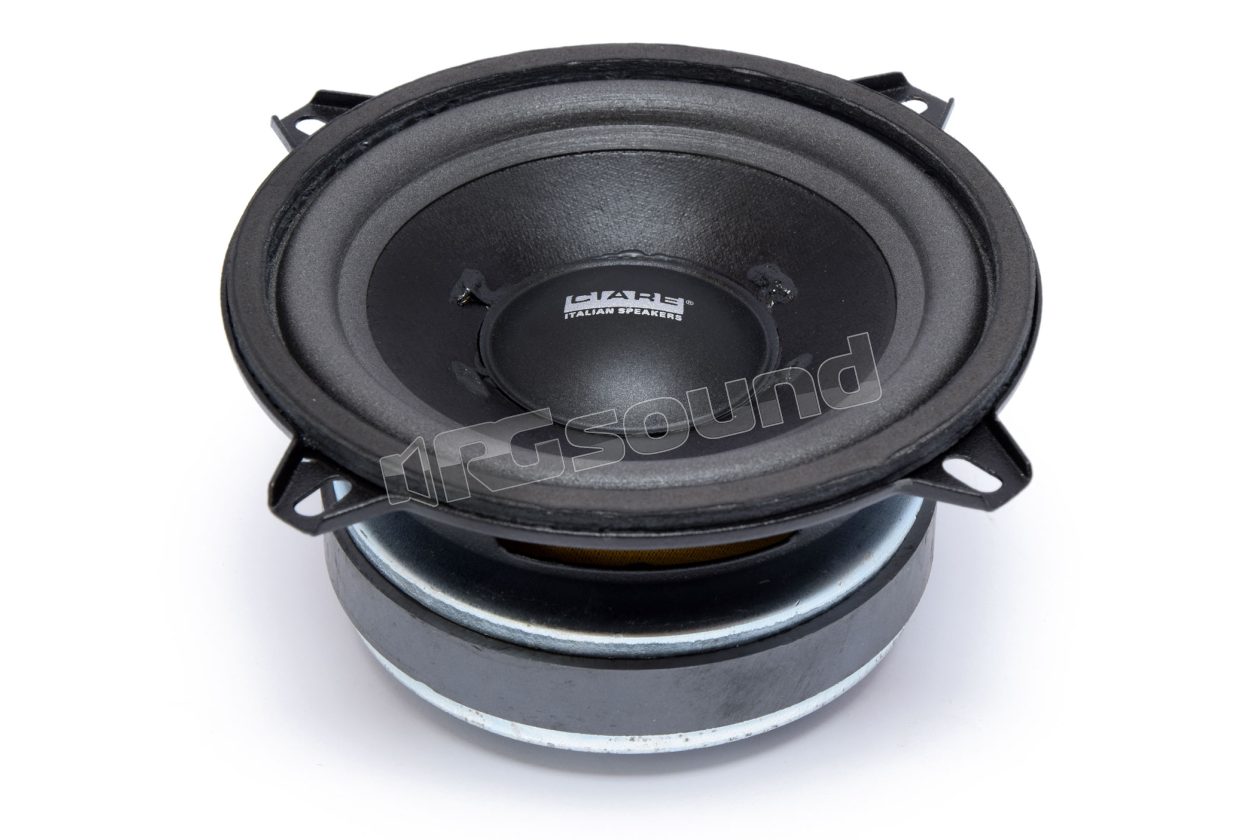

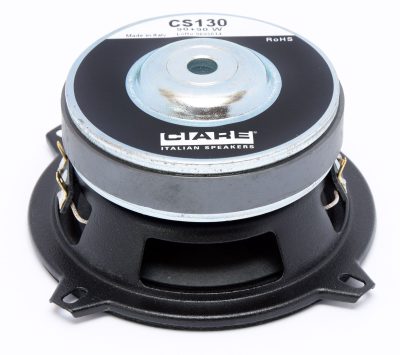

CIARE CS130 Subwoofer, 130mm size, Cs Series with dual voice coil, damped cellulose diaphragm and polyurethane suspension

Speaker usable also for Home Hi-Fi and Home Theater applications. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest standards of quality in the realization of every component.

CS130 Features

  • Max power: 90+90W
  • Nominal power: 30+30W
  • Diameter: 5''-130mm
  • Nominal impedance: 4+4 Ohm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 88 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 6 dm3
  • Recommended tuning frequency: 63 Hz

CS130 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Polyurethane
  • Former type: Aluminum
  • Air gap height: 6 mm

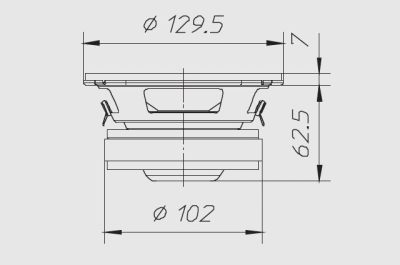

CS130 Dimensions

  • Outer diameter: 129.5 mm
  • Depth under flange: 62.5 mm
  • Flange thickness: 7 mm
  • Panel hole: 112 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole pos. diameter: 138
  • Weight with single packaging: 1.35 Kg

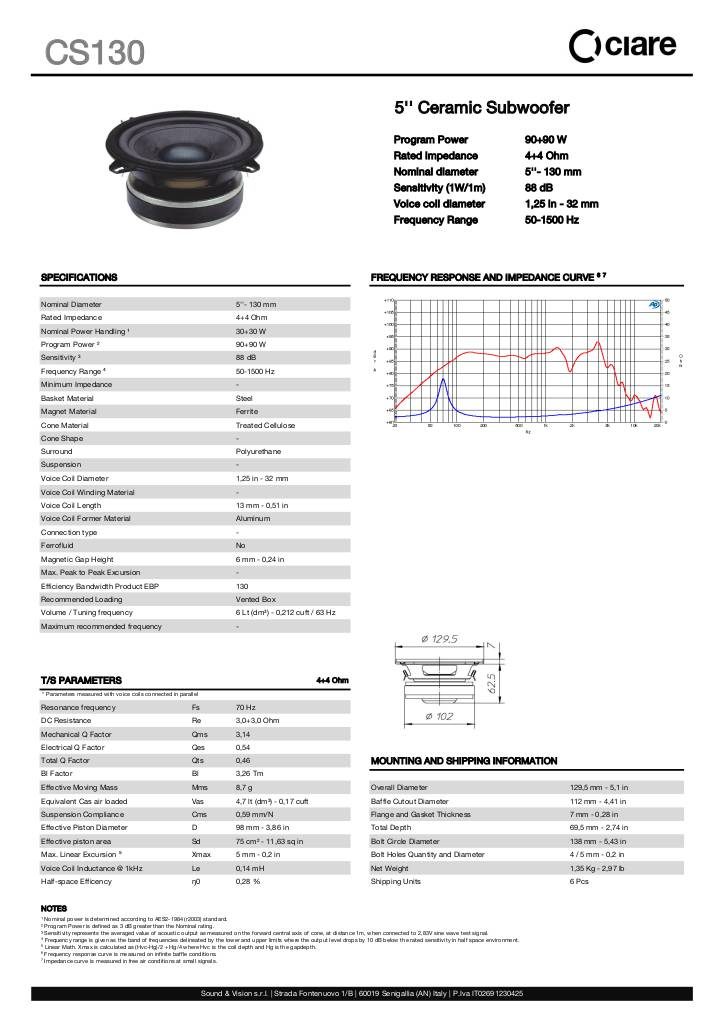

Scheda tecnica

n-20250410092124-ciare-cs130-en.pdf
