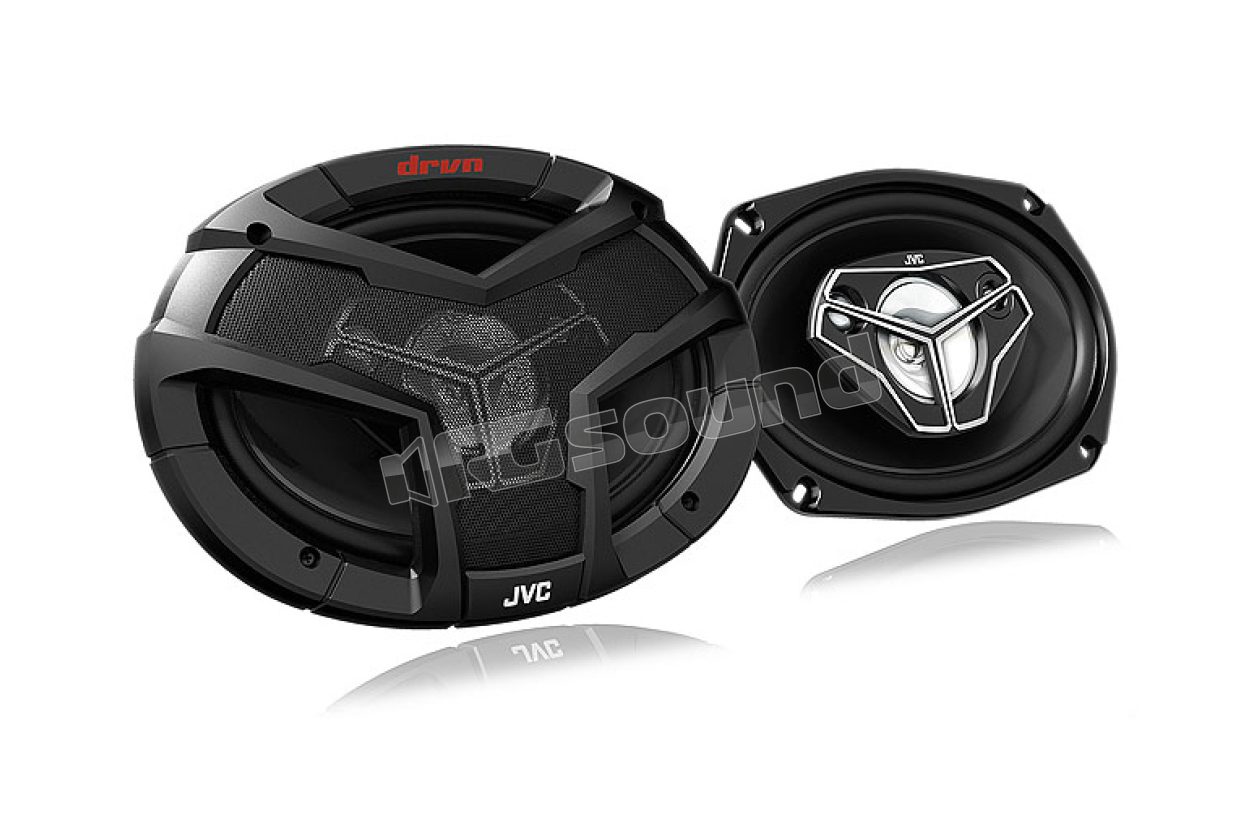

CS-V6948 drvn series - 4-way

JVC

Discontinued

Your price:
€ 54,90
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
4-way
Frequency Response
35 - 25.00 Hertz
MAX Power
400 Watt
RMS Power
60 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Carbon Mica
Tweeter Material
Poly-Ether

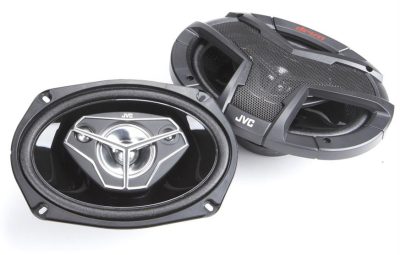

CS-V6948 pair of four-way coaxial speakers 15 x 23cm (6" x 9")

CS-V6948 Specifications

  • Standard woofer size 6x9" (inches) - 15 x 23 cm - 150 x 230 mm.

  • 4-way system: 1 woofer with superstructure containing the secondary channels.

  • The superstructure is composed of 1 midrange, 1 tweeter and 1 supertweeter.

  • Crossovers integrated in the system, just connect the speakers to the audio source.

  • The crossover frequencies are fixed at 5 kHz - 8 kHz - 12 kHz.

  • MAXIMUM Power 800 W (2 x 400 W).

  • RMS Power 120 W (2 x 60 W).

  • Frequency response 35 Hz / 25000 Hz.

  • Efficiency (1W/1m) 88 dB.

  • Rigid and resistant cones, made of aramid and carbon composite with mica.

  • These woofers offer durability over time, low distortion and excellent acoustic performance.

  • Hybrid rubber and fabric suspensions, for a rapid and accurate "response".

  • Resistant baskets, in stamped steel.

  • Ferrite magnets 445 g.

  • Tweeter with PEI (Poly-Ether Imide) domes and neodymium magnets.

  • Includes protective grilles with aggressive design for "visible" installations.

  • The grilles are designed to improve the frequency response of the speakers.

  • Nominal impedance 4 ohm.

  • Mounting depth 78.5 mm.

Discontinued
